DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide

162

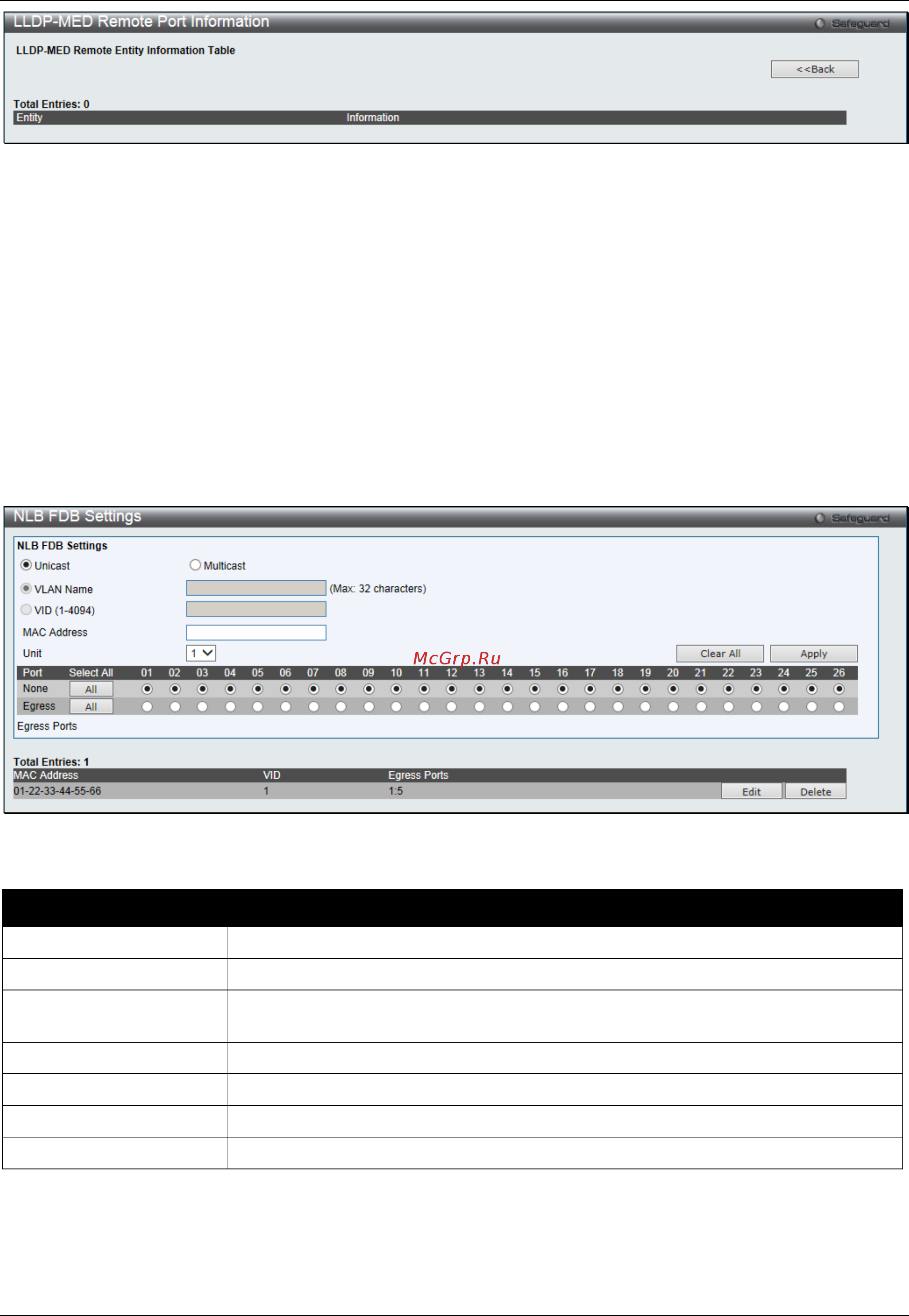

Figure 4-130 LLDP-MED Remote Port Information – Show Normal window

Click the <<Back button to return to the previous page.

NLB FDB Settings

The Switch supports Network Load Balancing (NLB). This is a MAC forwarding control for supporting the Microsoft

server load balancing application where multiple servers can share the same IP address and MAC address. The

requests from clients will be forwarded to all servers, but will only be processed by one of them. In multicast mode,

the client uses a multicast MAC address as the destination MAC to reach the server. Regardless of the mode, the

destination MAC is the shared MAC. The server uses its own MAC address (rather than the shared MAC) as the

source MAC address of the reply packet. The NLB multicast FDB entry will be mutually exclusive with the L2

multicast entry.

To view the following window, click L2 Features > NLB FDB Settings, as shown below.

Figure 4-131 NLB FDB Settings window

The fields that can be configured are described below:

Parameter Description

Unicast

Click to create NLB unicast FDB entry.

Multicast

Click to create NLB multicast FDB entry.

VLAN Name

Click the radio button and enter the VLAN of the NLB multicast FDB entry to be

created.

VID (1-4094)

Click the radio button and enter the VLAN by the VLAN ID.

MAC Address

Enter the MAC address of the NLB FDB entry to be created.

Unit

Select the unit you want to configure.

Ports

Click the ports to be configured. Click the All button to select all ports.

Click the Clear All button to remove all the entered information in the fields.

Click the Apply button to accept the changes made.

Click the Edit button to update the information of the corresponding entry.

Click the Delete button to delete the corresponding entry.
