Parameter Description

Unit

Select the unit you want to configure.

To view the normal LLDP Local Port information page per port, click the Show Normal button.

After clicking the Show Normal button, the following window will appear.

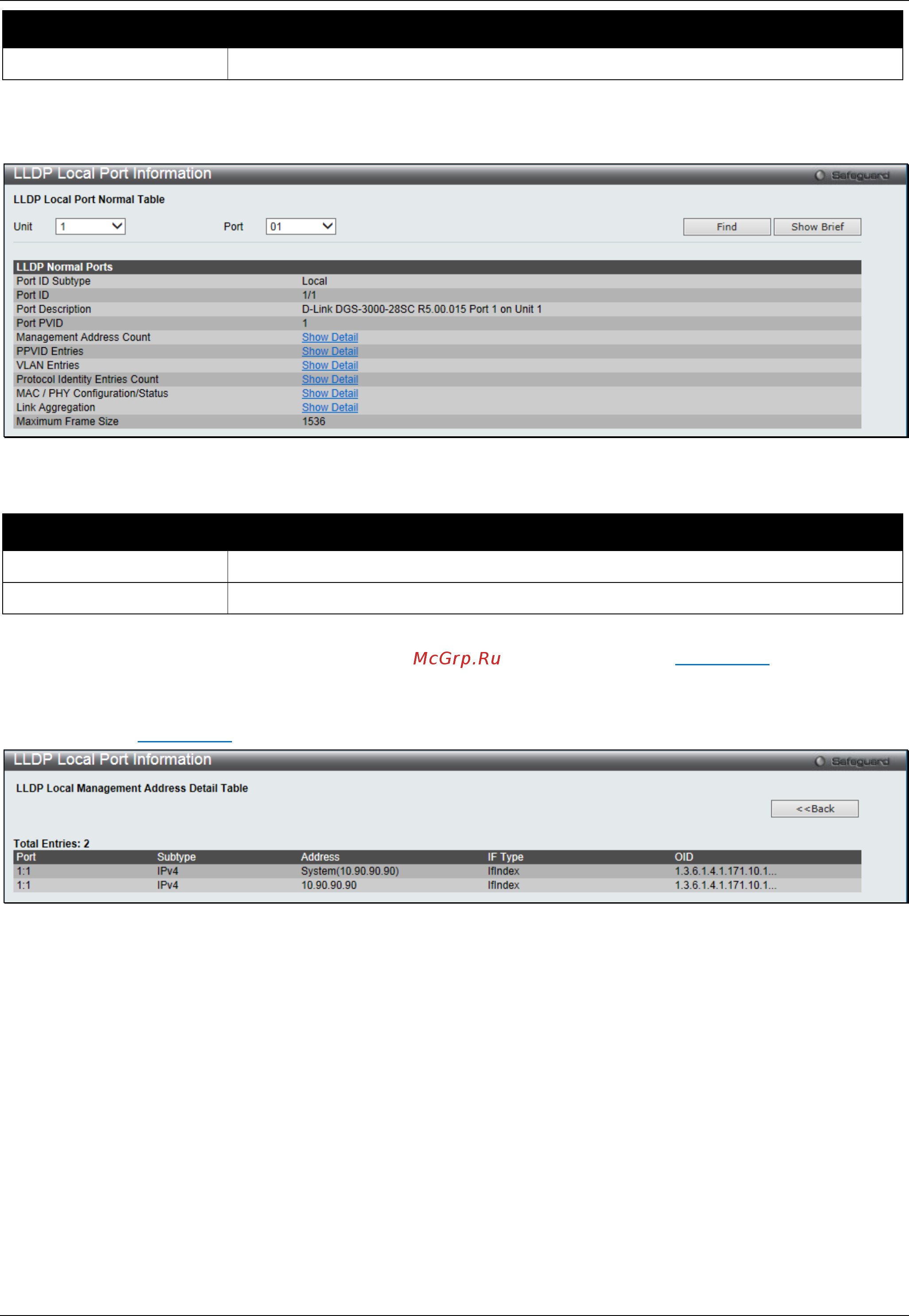

Figure 4-122 LLDP Local Port Information – Show Normal window

The fields that can be configured are described below:

Parameter Description

Unit

Select the unit you want to configure.

Port

Use the drop-down menu to select a port.

Click the Find button to locate a specific entry based on the information entered.

To view more details about, for example, the Management Address Count, click the Show Detail hyperlink.

To view the brief LLDP Local Port information page per port, click the Show Brief button.

After clicking the Show Detail hyperlink under the Management Address Count, the following window will appear:

Figure 4-123 LLDP Local Port Information – Show Detail window

Click the <<Back button to return to the previous page.

LLDP Remote Port Information

This window displays port information learned from the neighbors. The switch receives packets from a remote

station but is able to store the information as local.

To view the following window, click L2 Features > LLDP > LLDP > LLDP Remote Port Information, as show

below:
