DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide

Chapter 1 Web-based Switch Configuration

Introduction

Web-based User Interface

Web Pages

Introduction

Most software functions of the DGS-3000-28SC switch can be managed, configured and monitored via the

embedded web-based (HTML) interface. Manage the Switch from remote stations anywhere on the network

through a standard browser. The browser acts as a universal access tool and can communicate directly with the

Switch using the HTTP protocol.

To begin managing the Switch, simply run the browser installed on your computer and point it to the IP address you

have defined for the device. The URL in the address bar should read something like: http://123.123.123.123, where

the numbers 123 represent the IP address of the Switch.

NOTE: The factory default IP address is 10.90.90.90.

This opens the management module's user authentication window, as seen below.

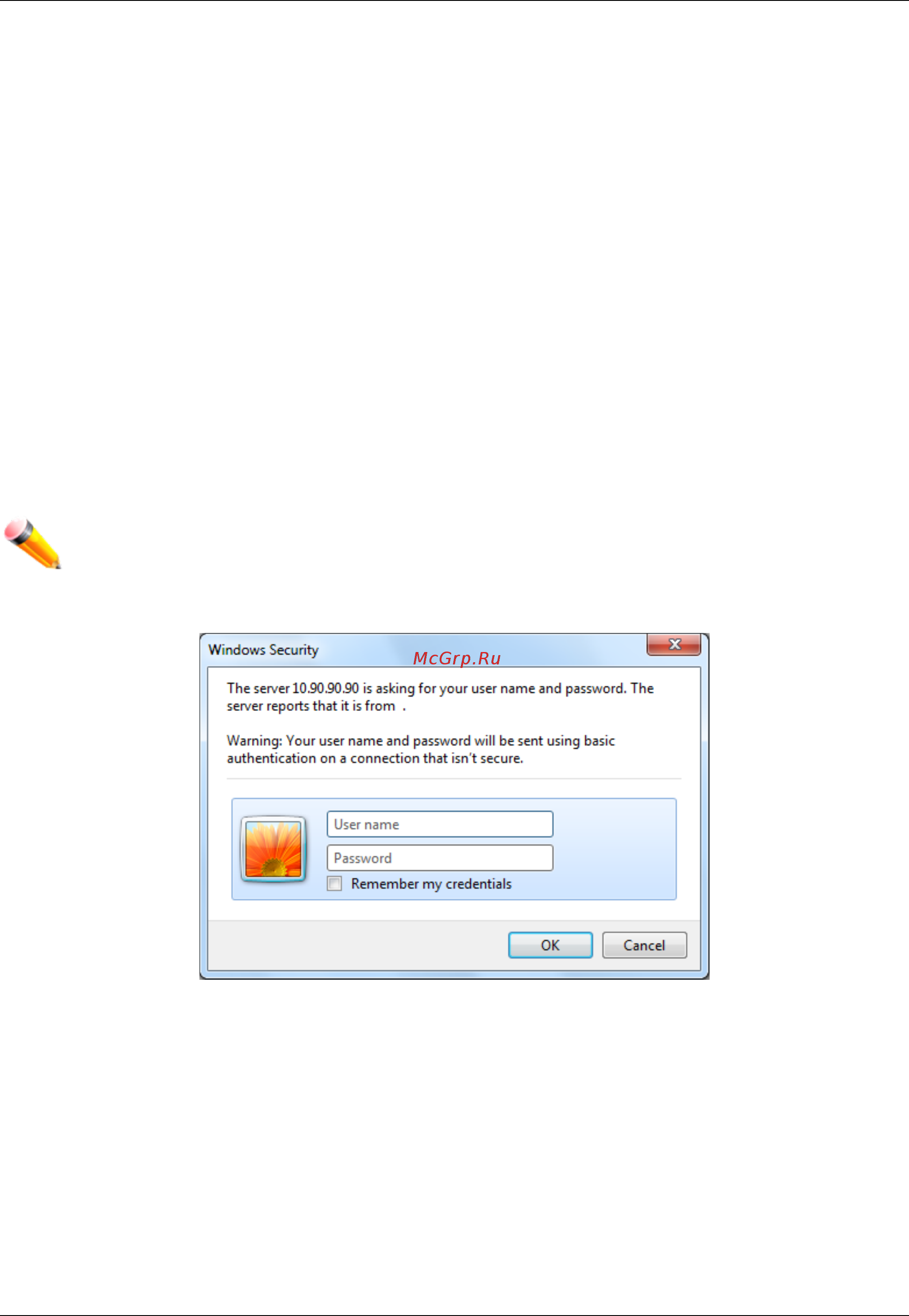

Figure 1-1 Enter Network Password window

Leave both the User Name field and the Password field blank and click OK. This will open the Web-based user

interface. The Switch management features available in the web-based manager are explained below.
