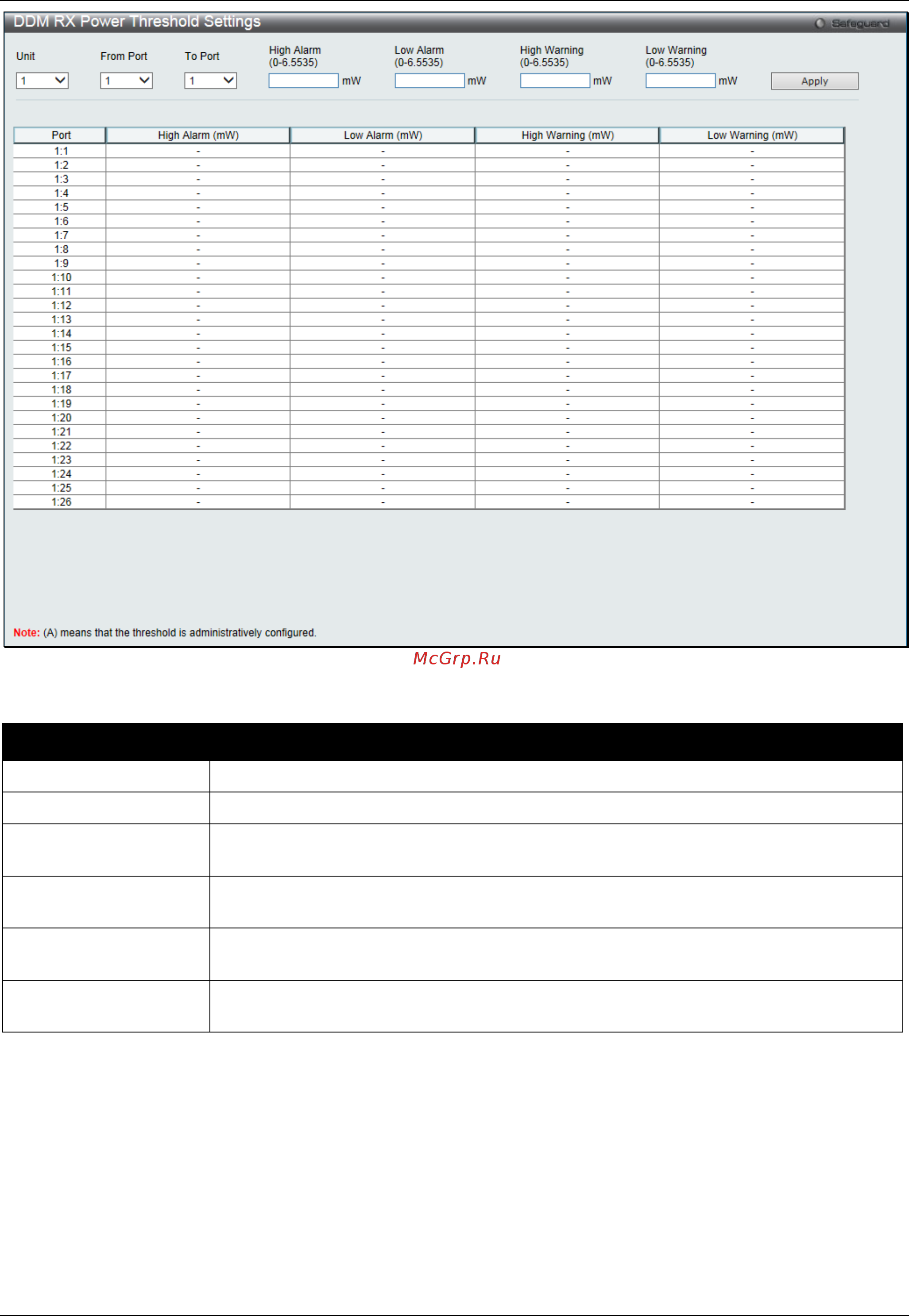

Figure 2-8 DDM RX Power Threshold Settings window

The fields that can be configured are described below:

Parameter Description

Unit

Select the unit to be configured.

From Port / To Port

Select a range of ports to be configured.

High Alarm

This is the highest threshold for the alarm. When the operating parameter rises above

this value, action associated with the alarm will be taken.

Low Alarm

This is the lowest threshold for the alarm. When the operating parameter falls below

this value, action associated with the alarm will be taken.

High Warning

This is the highest threshold for the warning. When the operating parameter rises

above this value, action associated with the warning will be taken.

Low Warning

This is the lowest threshold for the warning. When the operating parameter falls

below this value, action associated with the warning will be taken.

Click the Apply button to accept the changes made.

DDM Status Table

This window is used to display the current operating digital diagnostic monitoring parameters and their values on

the SFP module for specified ports.

To view the following window, click System Configuration > Port Configuration > DDM > DDM Status Table, as

show below:
