DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
343

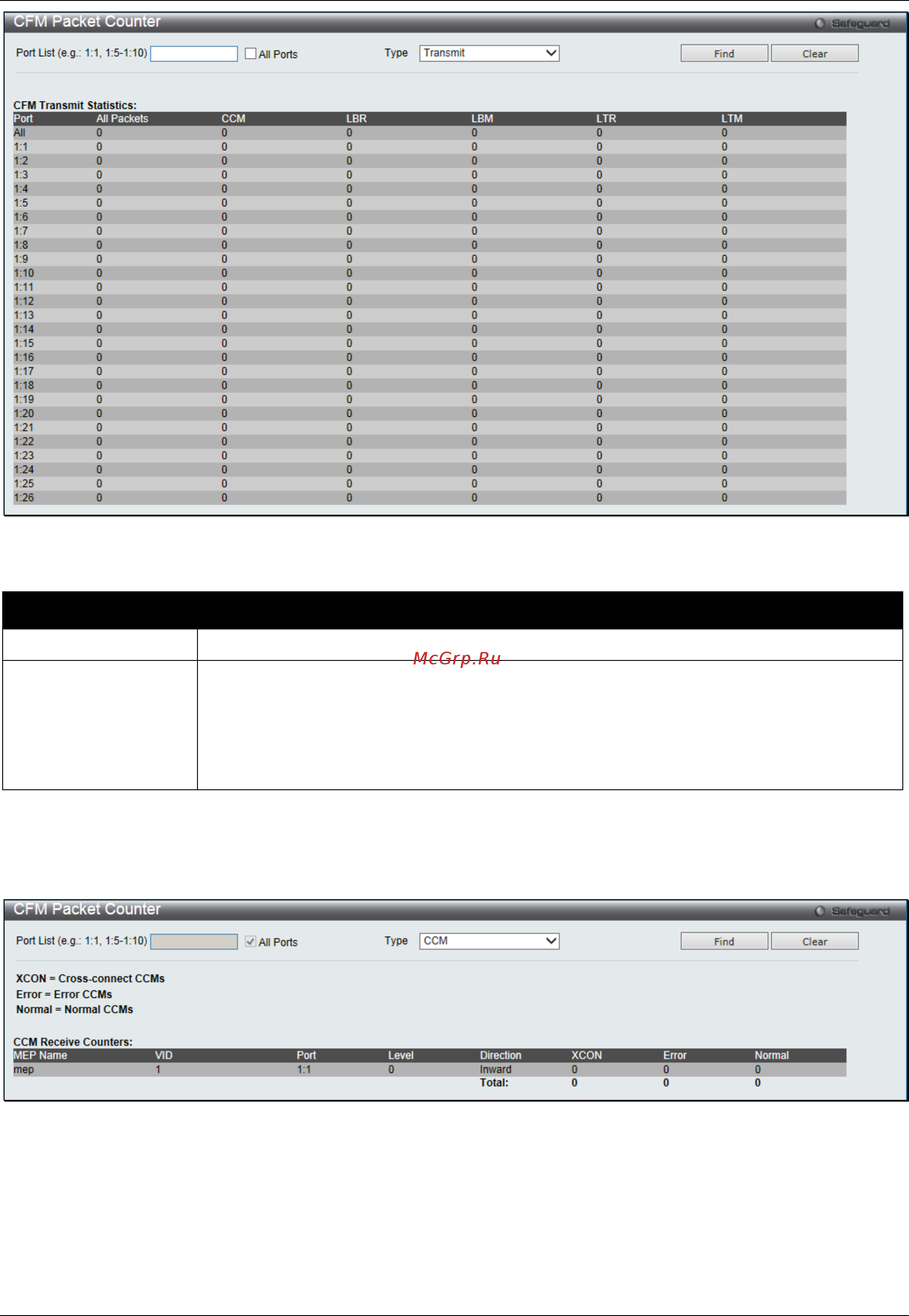

Figure 10-16 CFM Packet Counter window
The fields that can be configured are described below:
Parameter Description
Port List
Enter a list of ports to be displayed. Tick the All Ports check box to display all ports.
Type
Transmit – Selecting this option will display all the CFM packets transmitted.
Receive – Selecting this option will display all the CFM packets received.
CCM – Selecting this option will display all the CCM packets transmitted and received.
Transmit and Receive – Selecting this option will display all the CFM packets
transmitted and received.
Click the Find button to locate a specific entry based on the information entered.
Click the Clear button to clear all the information entered in the fields.
After selecting CCM as the Type, the following window will appear:
Figure 10-17 CFM Packet Counter window
CFM Fault Table
This window is used to show the MEPs that have faults.
To view the following window, click OAM > CFM > CFM Fault Table as shown below.
