DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
319
Click the Apply button to accept the changes made.
DHCP Relay Option 82 Port Settings
This window is used to configure the DHCP relay agent option 82 information of each port.
To view the following window, click Network Application > DHCP > DHCP Relay > DHCP Relay Option 82 Port
Settings as shown below.

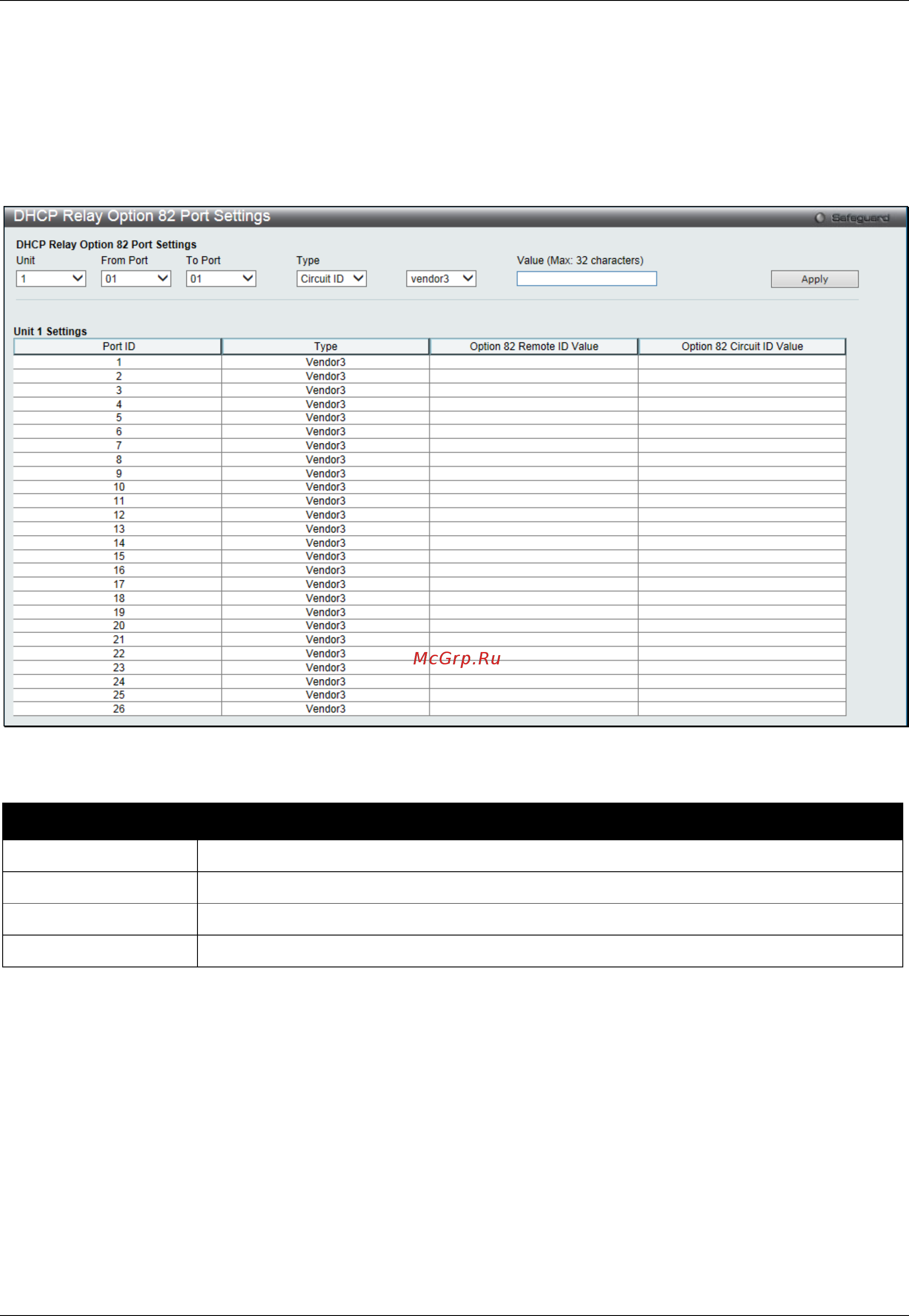

Figure 9-10 DHCP Relay Option 82 Port Settings window
The fields that can be configured are described below:
Parameter Description
Unit
Select the unit to be configured.
From Port / To Port
Select a range of ports to be configured.
Type
Use the drop-down menu to select between Circuit ID and Remote ID.
Value
Enter the user-defined value.
Click the Apply button to accept the changes made.
DHCP Relay Server CVID Settings
This window is used to configure DHCP relay agent destination IP address inner VLAN ID.
To view the following window, click Network Application > DHCP > DHCP Relay > DHCP Relay Server CVID
Settings as shown below.
