Click the Apply button to accept the changes made for each individual section.

LLDP Port Settings

This window is used to configure the LLDP port parameters.

To view the following window, click L2 Features > LLDP > LLDP > LLDP Port Settings, as show below:

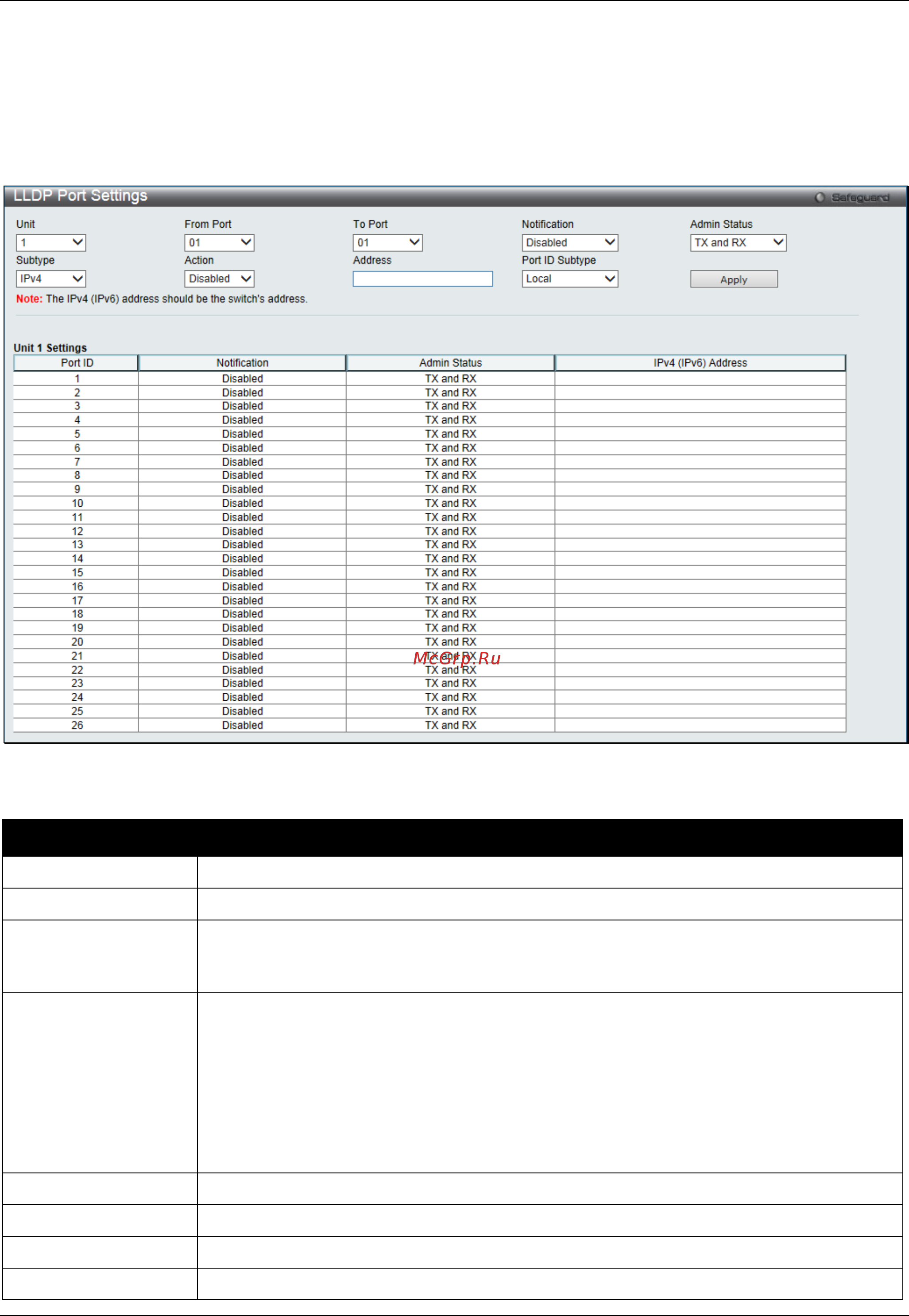

Figure 4-115 LLDP Port Settings window

The fields that can be configured are described below:

Parameter Description

Unit

Select the unit you want to configure.

From Port / To Port

Use the drop-down menu to select the ports used for this configuration.

Notification

Use the drop-down menu to enable or disable the status of the LLDP notification. This

function controls the SNMP trap however it cannot implement traps on SNMP when the

notification is disabled.

Admin Status

This function controls the local LLDP agent and allows it to send and receive LLDP

frames on the ports. This option contains TX, RX, TX And RX or Disabled.

TX - the local LLDP agent can only transmit LLDP frames.

RX - the local LLDP agent can only receive LLDP frames.

TX And RX - the local LLDP agent can both transmit and receive LLDP frames.

Disabled - the local LLDP agent can neither transmit nor receive LLDP frames.

The default value is TX And RX.

Subtype

Use the drop-down menu to select the type of the IP address information will be sent.

Action

Use the drop-down menu to enable or disable the action field.

Address

Enter the IP address that will be sent.

Port ID Subtyp

Use the drop-down menu to select the subtype of the Port ID.
