DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
367

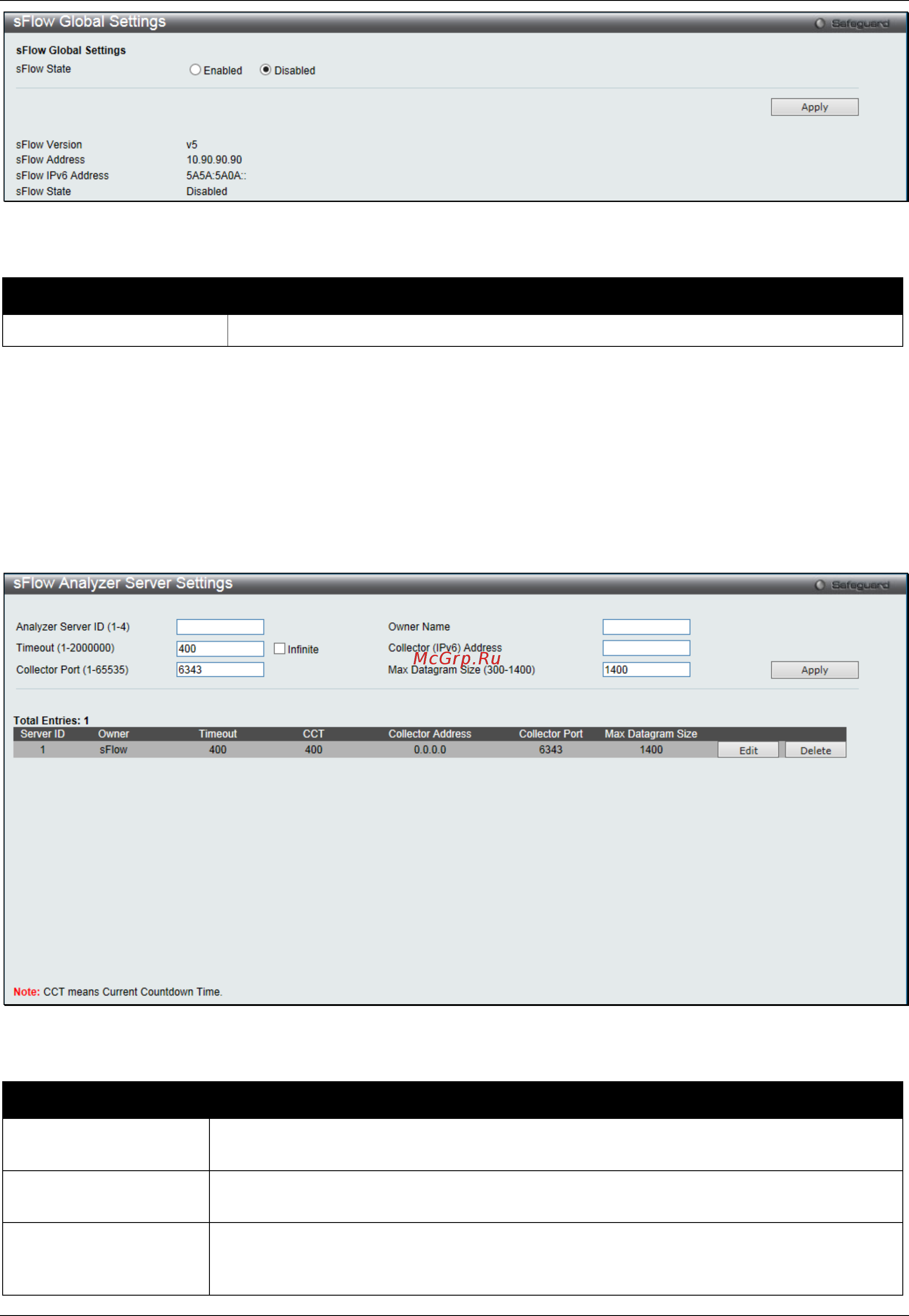

Figure 11-21 sFlow Global Settings window
The fields that can be configured are described below:
Parameter Description
sFlow State
Click the radio button to enable or disable the sFlow feature.
Click the Apply button to accept the changes made.
sFlow Analyzer Server Settings
The Switch can support 4 different Analyzer Servers at the same time and each sampler or poller can select a
collector to send the samples. We can send different samples from different samplers or pollers to different
collectors.
To view the following window, click Monitoring > sFlow > sFlow Analyzer Server Settings as shown below.
Figure 11-22 sFlow Analyzer Server Settings window
The fields that can be configured are described below:
Parameter Description
Analyzer Server ID (1-
4)
Specify the ID of a server analyzer where the packet will be forwarded.
Owner Name
The entity making use of this sFlow analyzer server. When owner is set or modified,
the timeout value will become 400 automatically.
Timeout (1-2000000)
The length of time before the server times out. When the analyzer server times out,
all of the flow samplers and counter pollers associated with this analyzer server will
be deleted. If not specified, its default value is 400.
