DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
17
Parameter Description
Port
Display the port that has been error disabled.
Port State
Describe the current running state of the port, whether enabled or disabled.
Connection Status
Display the uplink status of the individual ports, whether enabled or disabled.
Reason
Describe the reason why the port has been error-disabled, such as it has become a
shutdown port for storm control.
Port Media Type
The following window displays the information about the port media type.
To view the following window, click System Configuration > Port Configuration > Port Media Type, as shown
below.

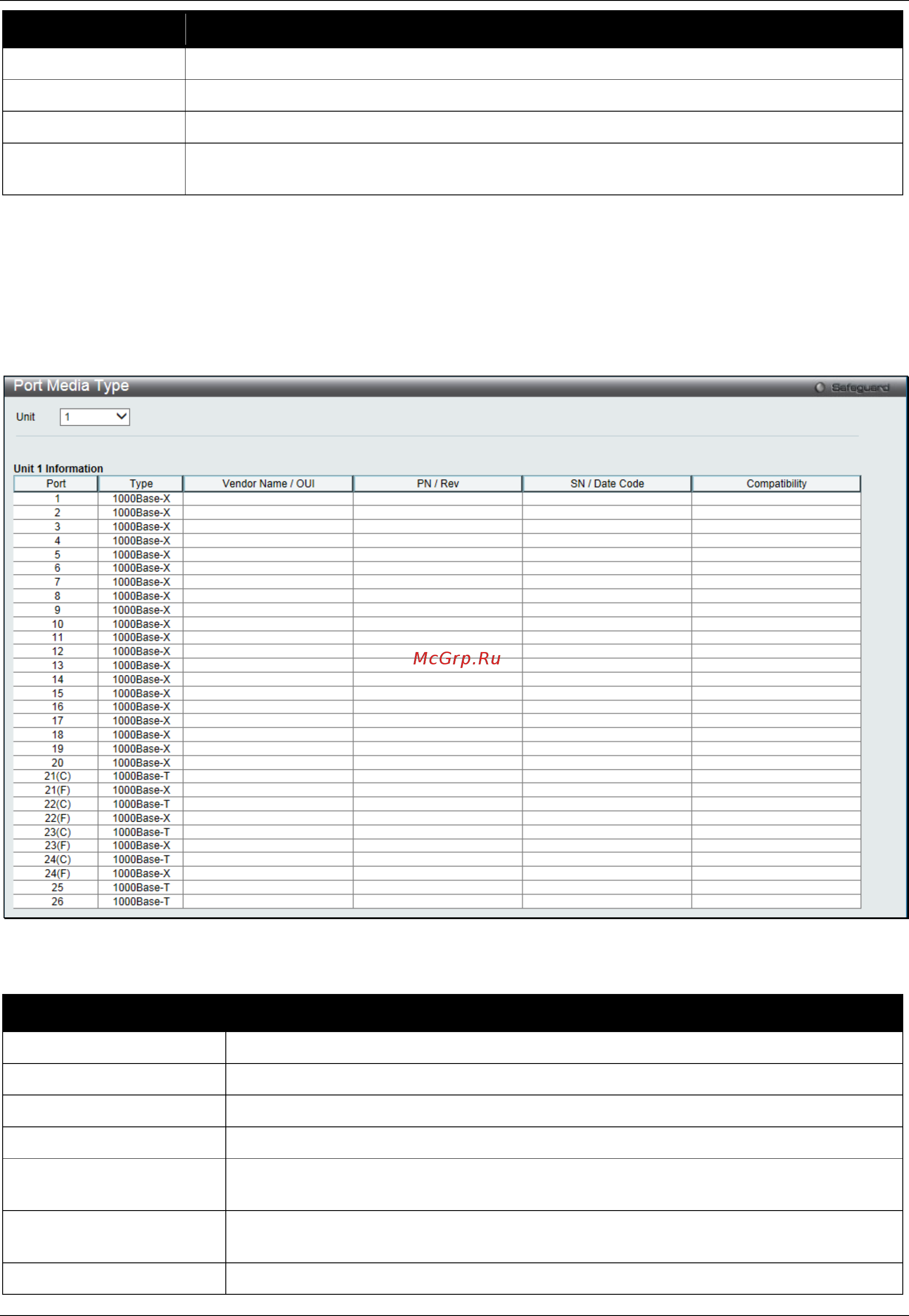

Figure 2-13 Port Media Type window
The fields that can be configured or displayed are described below:
Parameter Description
Unit
Select the unit to be configured.
Port
Display the port number.
Type
Display the port media type.
Vendor Name / OUI
Display the name of the SFP vendor and its IEEE company ID.
PN / Rev
Display the part number and revision level of the part number provided by the SFP
vendor.
SN / Date Code
Display the serial number provided by the SFP vendor and the manufacturing date
code.
Compatibility
Display the fiber type, baud rate and wavelength of the SFP.
