DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
324
Parameter Description
DHCPv6 Local Relay
State
Click to enable or disable the DHCPv6 local relay global state.
VLAN Name
Click the radio button and enter the name of VLAN.
VLAN ID
Click the radio button and enter the VLAN ID. There are up to 48 VLANs that can
apply to the DHCPv6 local relay operation.
State
Use the drop-down menu to enable or disable the DHCPv6 local relay state of the
specified VLAN.
Click the Apply button to accept the changes made.
DNS
DNS Relay
DNS Relay Global Settings
This window is used to configure the DNS relay global state.
To view the following window, click Network Application > DNS > DNS Relay > DNS Relay Global Settings as
shown below.

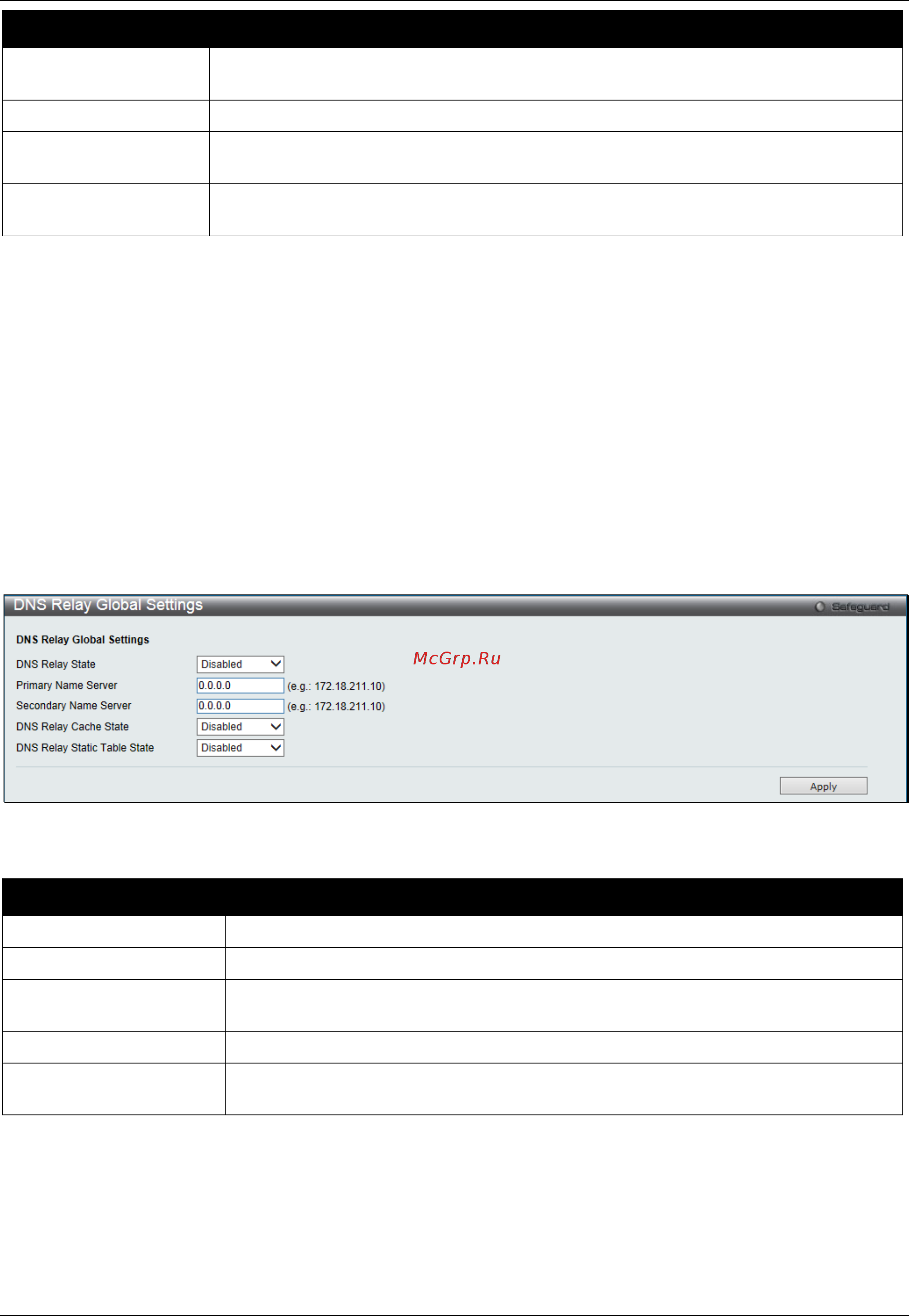

Figure 9-19 DNS Relay Global Settings window
The fields that can be configured are described below:
Parameter Description
DNS Relay State
Use the drop-down menu to enable or disable DNS relay state.
Primary Name Server
Enter the IP address of the primary name server.
Secondary Name
Server
Enter the IP address of the secondary name server.
DNS Relay Cache State
Use the drop-down menu to enable or disable the DNS relay lookup cache function.
DNS Relay Static Table
State
Use the drop-down menu to enable or disable the DNS relay static table lookup
function.
Click the Apply button to accept the changes made.
DNS Relay Static Settings
This window is used to configure the static domain name in the DNS relay resolution table.
To view the following window, click Network Application > DNS > DNS Relay > DNS Relay Static Settings as
shown below.
