DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide
95
Click the Find button to locate a specific entry based on the information entered.
Click the Add QinQ Profile button to add a new Q-in-Q translation rule.
Click the View All button to display all the existing entries.
Click the Delete All button to remove all the entries listed in the table.
Click the Show Match button to see the detail information of the Q-in-Q VLAN translation rule.
Click the Delete button to remove the specific entry.
Click the Add QinQ Profile button to see the following window.

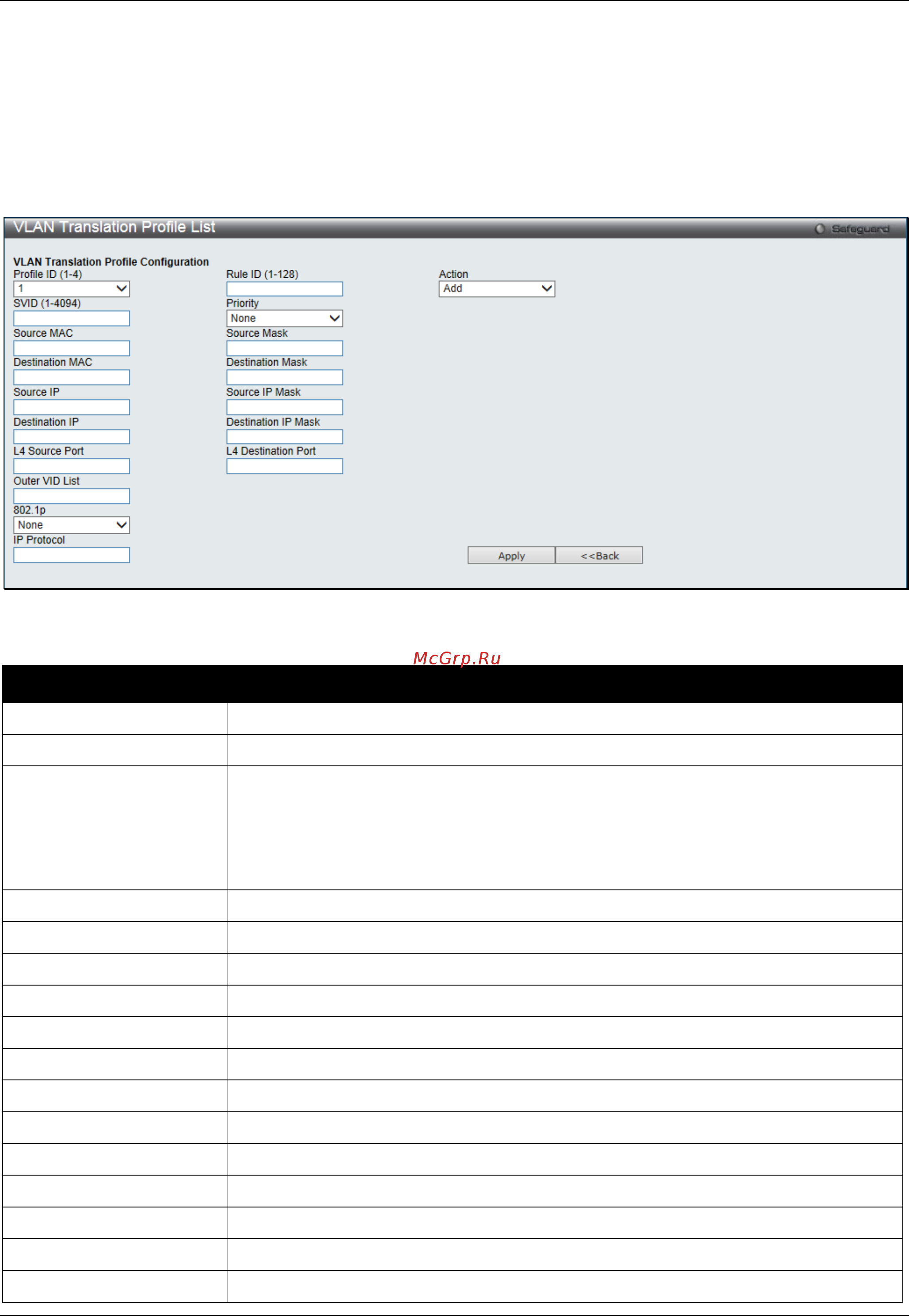

Figure 4-37 VLAN Translation Profile List - Add QinQ Profile window
The fields that can be configured are described below:
Parameter Description
Profile ID (1-4)
Use the drop-down menu to select the profile ID of VLAN translation.
Rule ID (1-128)
Specify the rule ID for the profile.
Action
Use the drop-down menu to select the action for the profile.
Add – Specify to add a tag for the assigned S-VLAN before the Outer-VLAN tag. If
there is a service tag (S-TAG) in the packet, this rule will not take effect.
Replace – Specify to replace the Outer VLAN ID in the tag with the SVID. If there is
no TAG in the packet, this rule will not take effect.
SVID (1-4094)
Specify the S-VLAN ID to be assigned to the matched packet.
Priority
Use the drop-down menu to select the 802.1p priority of the S-TAG.
Source MAC
Specify the source MAC address.
Source Mask
Specify the mask of the source MAC.
Destination MAC
Specify the destination MAC address.
Destination Mask
Specify the mask of the destination MAC.
Source IP
Specify the source IP address.
Source IP Mask
Specify the subnet mask of the source IP address.
Destination IP
Specify the destination IP address.
Destination IP Mask
Specify the subnet mask of the destination IP address.
L4 Source Port
Specify the L4 source port ID.
L4 Destination Port
Specify the L4 destination port ID.
Outer VID List
Specify the Outer VLAN ID of the packet.
