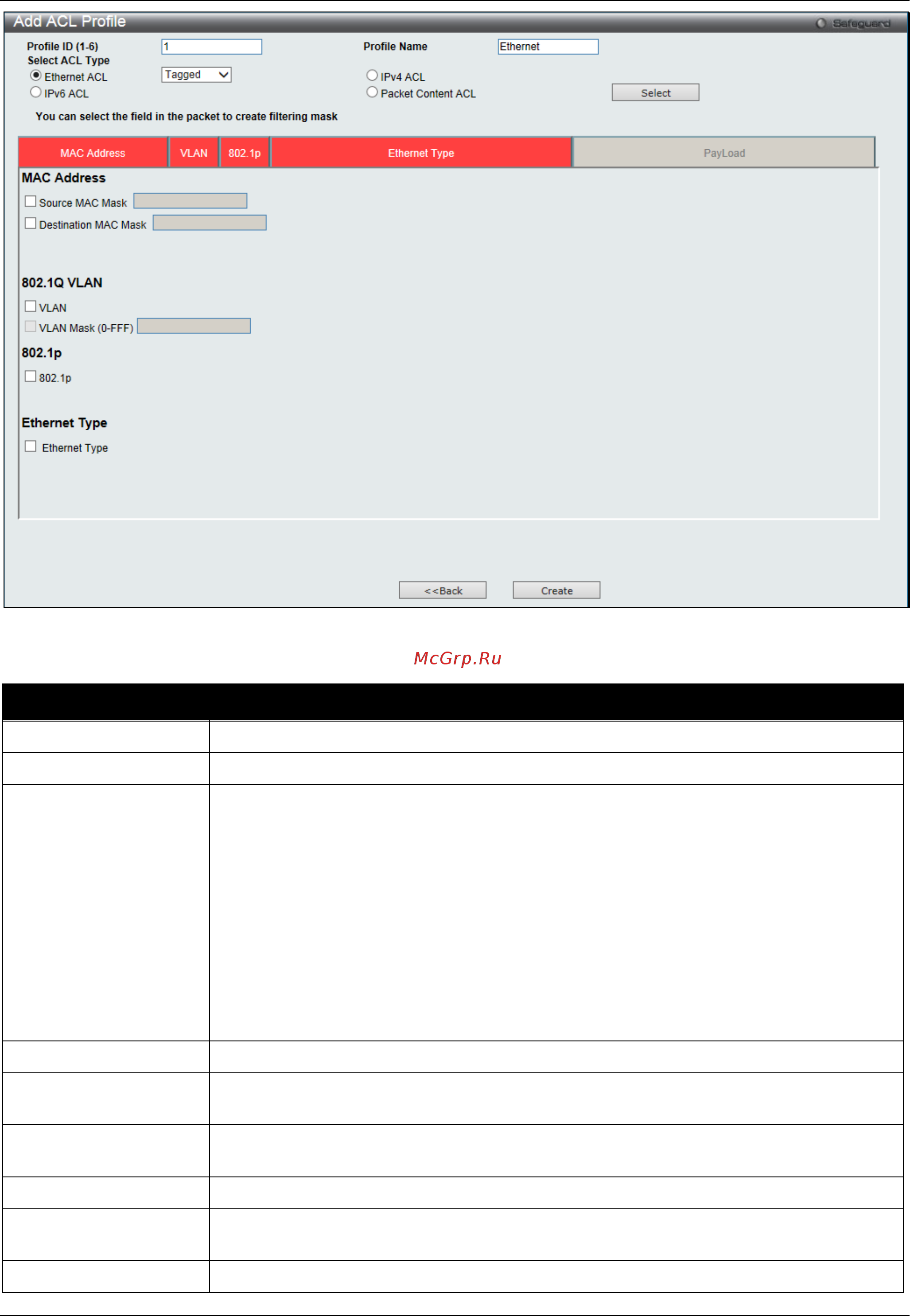

Figure 7-3 Add ACL Profile window (Ethernet ACL)

The fields that can be configured are described below:

Parameter Description

Profile ID (1-6)

Enter a unique identifier number for this profile set. This value can be set from 1 to 6.

Profile Name

Enter a profile name for the profile created.

Select ACL Type

Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or

packet content. This will change the window according to the requirements for the

type of profile.

Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each packet

header.

Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each frame's

header.

Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each frame's

header.

Select Packet Content to instruct the Switch to examine the packet content in each

frame’s header.

Source MAC Mask

Enter a MAC address mask for the source MAC address, e.g. FF-FF-FF-FF-FF-FF.

Destination MAC

Mask

Enter a MAC address mask for the destination MAC address, e.g. FF-FF-FF-FF-FF-

FF.

802.1Q VLAN

Selecting this option instructs the Switch to examine the 802.1Q VLAN identifier of

each packet header and use this as the full or partial criterion for forwarding.

VLAN Mask

Select and enter the VLAN mask value.

802.1p

Selecting this option instructs the Switch to examine the 802.1p priority value of each

packet header and use this as the, or part of the criterion for forwarding.

Ethernet Type

Selecting this option instructs the Switch to examine the Ethernet type value in each
