DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide

188

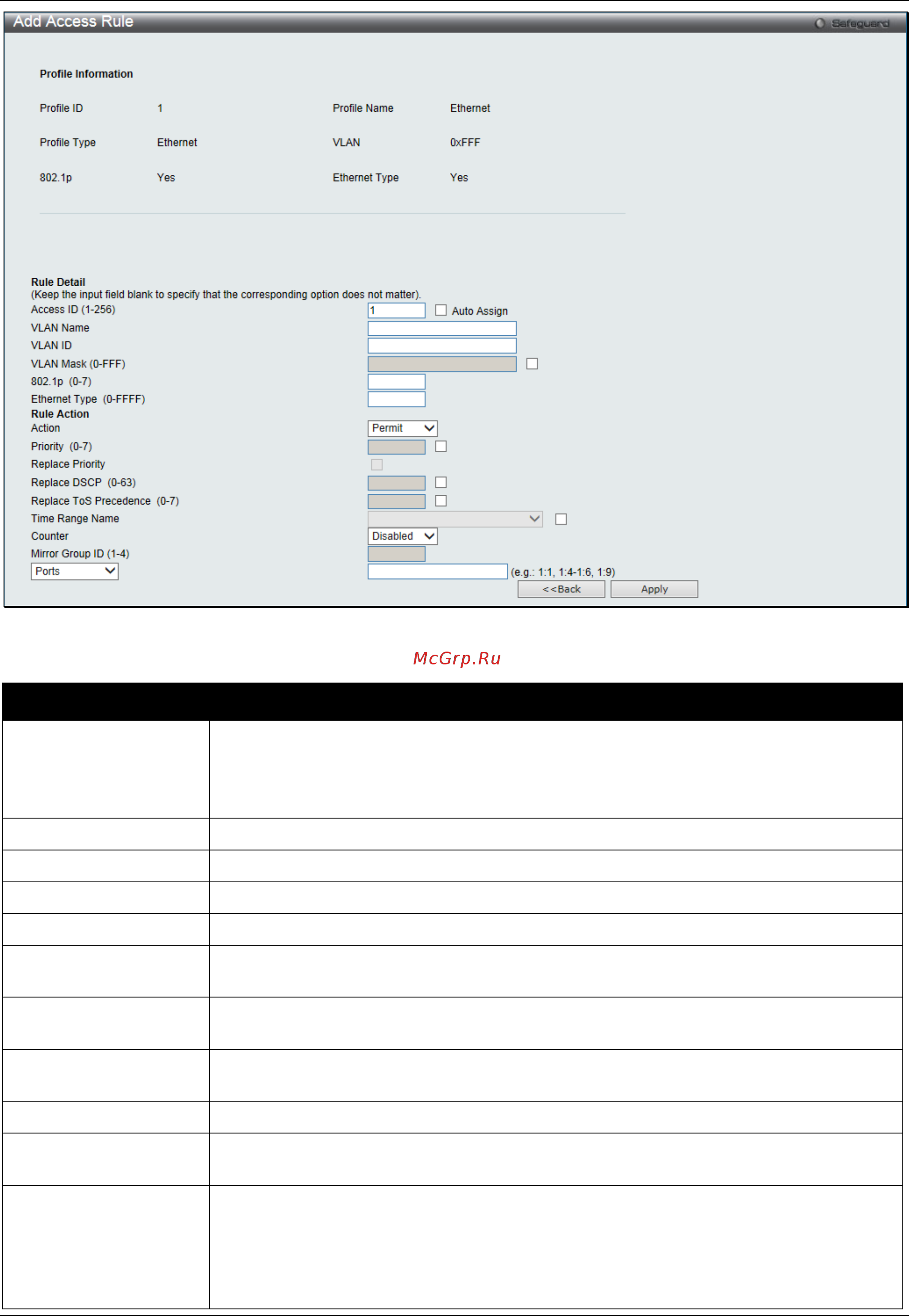

Figure 7-6 Add Access Rule window (Ethernet ACL)

The fields that can be configured are described below:

Parameter Description

Access ID (1-256)

Type in a unique identifier number for this access. This value can be set from 1 to

256.

Auto Assign – Select this check box will instruct the Switch to automatically assign an

Access ID for the rule being created.

VLAN Name

Enter the VLAN name.

VLAN ID

Enter the VLAN ID.

VLAN Mask

Select and enter the VLAN mask value.

Source MAC Address

Enter the source MAC address.

Source MAC Address

Mask

Select and enter the source MAC address mask.

Destination MAC

Address

Enter the destination MAC address.

Destination MAC

Address Mask

Select and enter the destination MAC address mask.

802.1p

Enter the 802.1p priority tag value. This value must be between 0 and 7.

Ethernet Type (0-

FFFF)

Enter the Ethernet type value.

Action

Select Permit to specify that the packets that match the access profile are forwarded

by the Switch, according to any additional rule added (see below).

Select Deny to specify that the packets that match the access profile are not

forwarded by the Switch and will be filtered.

Select Mirror to specify that packets that match the access profile are mirrored to a
