DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide

192

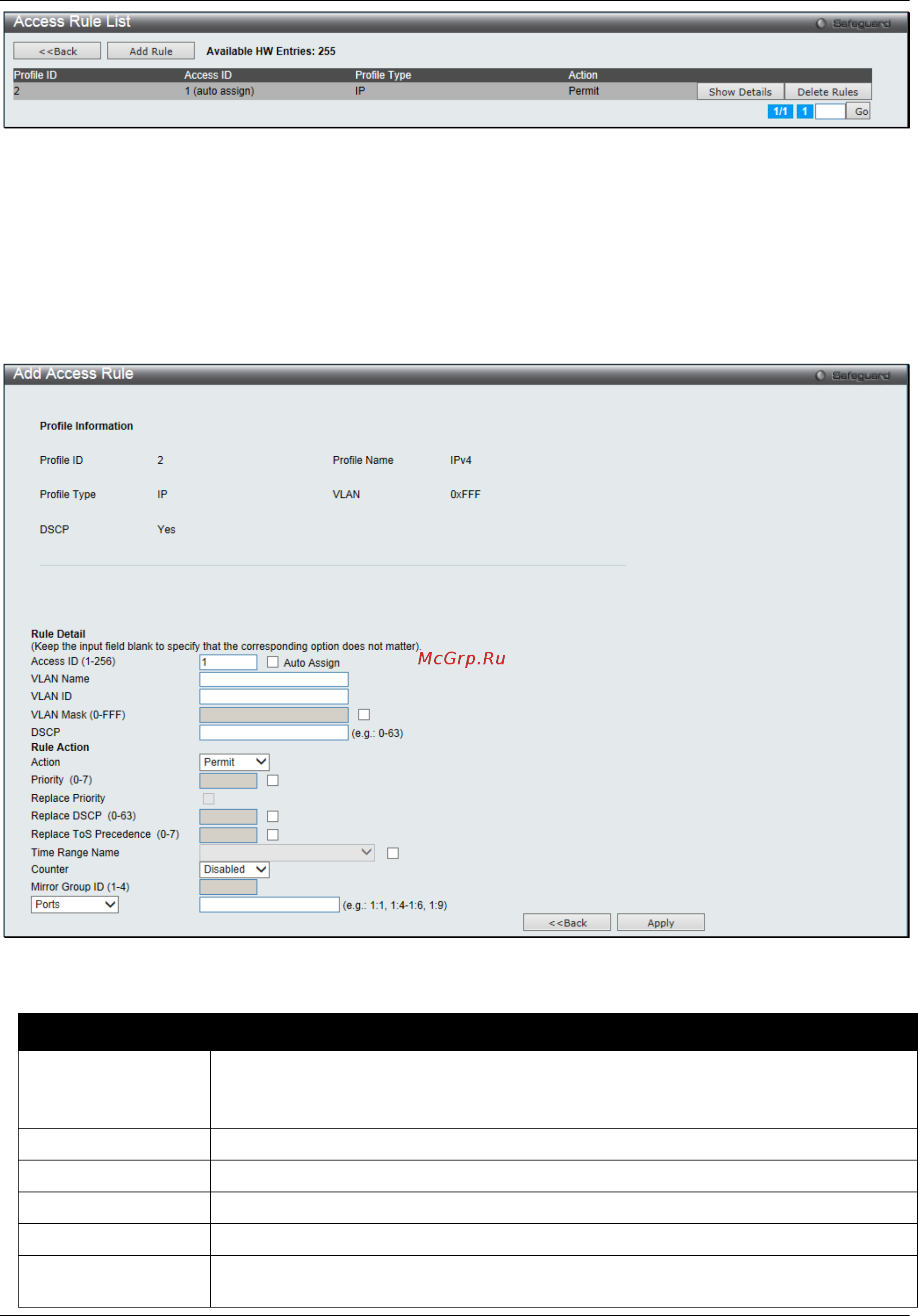

Figure 7-10 Access Rule List window (IPv4 ACL)

Click the Add Rule button to create a new ACL rule in this profile.

Click the <<Back button to return to the previous page.

Click the Show Details button to view more information about the specific rule created.

Click the Delete Rules button to remove the specific entry.

Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

After clicking the Add Rule button, the following window will appear.

Figure 7-11 Add Access Rule (IPv4 ACL)

The fields that can be configured are described below:

Parameter Description

Access ID (1-256)

Type in a unique identifier number for this access. This value can be set from 1 to 256.

Auto Assign – Select this check box will instruct the Switch to automatically assign an

Access ID for the rule being created.

VLAN Name

Enter the VLAN name.

VLAN ID

Enter the VLAN ID.

VLAN Mask

Select and enter the VLAN mask value.

Source IP Address

Enter the source IP address.

Source IP Address

Mask

Select and enter the source IP address mask.
