DGS-3000-28SC Layer 2 Managed Stackable Gigabit Switch Web UI Reference Guide

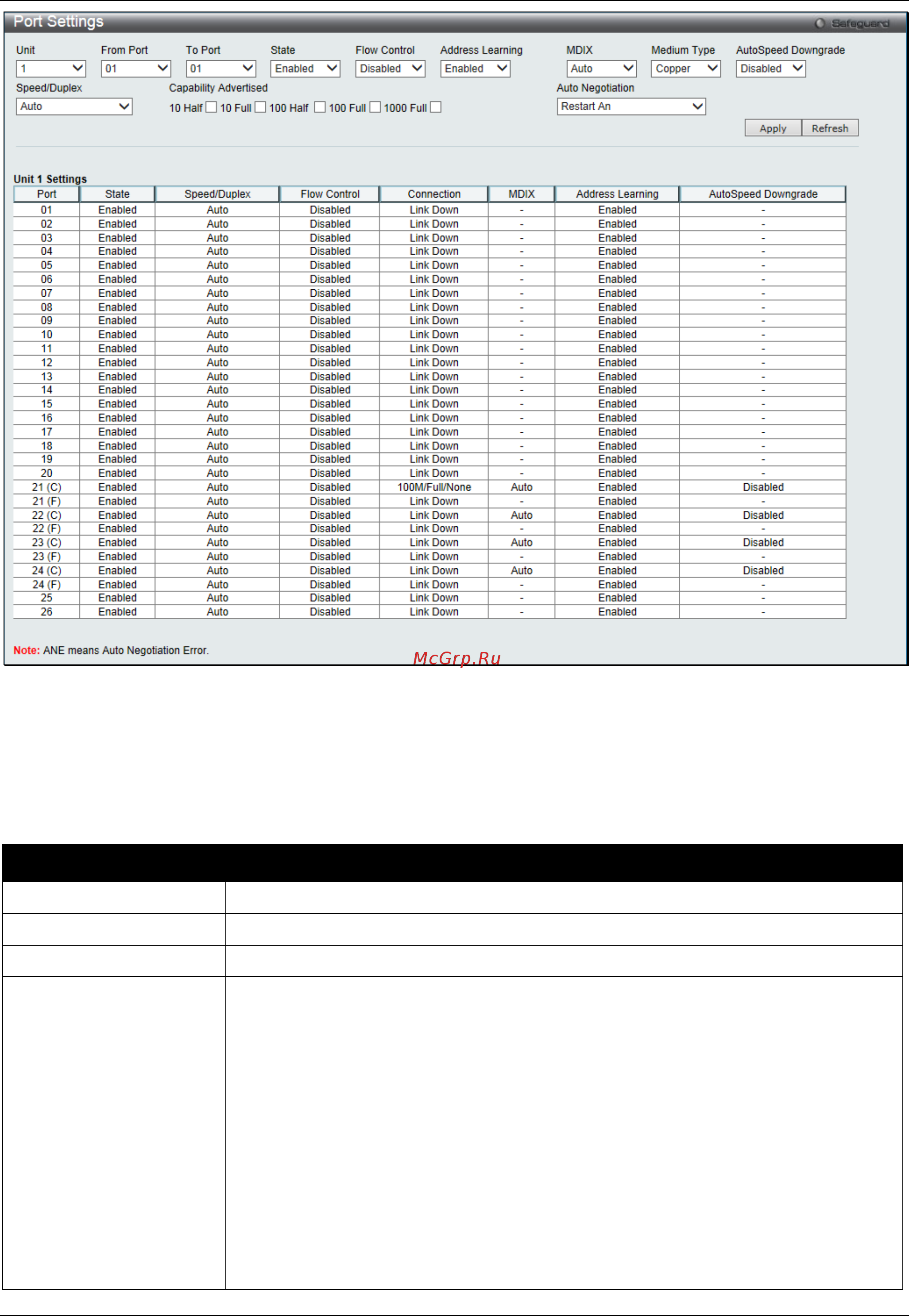

Figure 2-10 Port Settings window

To configure switch ports:

1. Choose the port or sequential range of ports using the From Port and To Port drop-down menus.

2. Use the remaining drop-down menus to configure the parameters described below:

The fields that can be configured are described below:

Parameter Description

Unit

Select the unit to be configured.

From Port / To Port

Select the appropriate port range used for the configuration here.

State

Toggle the State field to either enable or disable a given port or group of ports.

Speed/Duplex

Toggle the Speed/Duplex field to select the speed and full-duplex/half-duplex state

of the port. Auto denotes auto-negotiation among 10, 100 and 1000 Mbps devices,

in full- or half-duplex (except 1000 Mbps which is always full duplex). The Auto

setting allows the port to automatically determine the fastest speed and the

appropriate mode to be supplied to the device connected to the port. The other

options are 10M Half, 10M Full, 100M Half, 100M Full, 1000M Full_Master, and

1000M Full_Slave. There is no automatic adjustment of port settings with any

option other than Auto.

The Switch allows the user to configure three types of gigabit connections; 1000M

Full_Master, and 1000M Full_Slave. Gigabit connections only support full duplex

connections and take on certain characteristics that are different from the other

choices listed.
