Power Modules
3.2 Power Modules Blocksize Liquid Cooled (PM340)
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
117
3.2.5.3 Access to the power supply terminals and motor terminals
For frame sizes FSD to FSF, the terminals are accessed by releasing the tongue at the side
of the terminal covers using a suitable flat screwdriver. The cover can then be pushed
upwards and engaged in this position as shown in the following diagram.

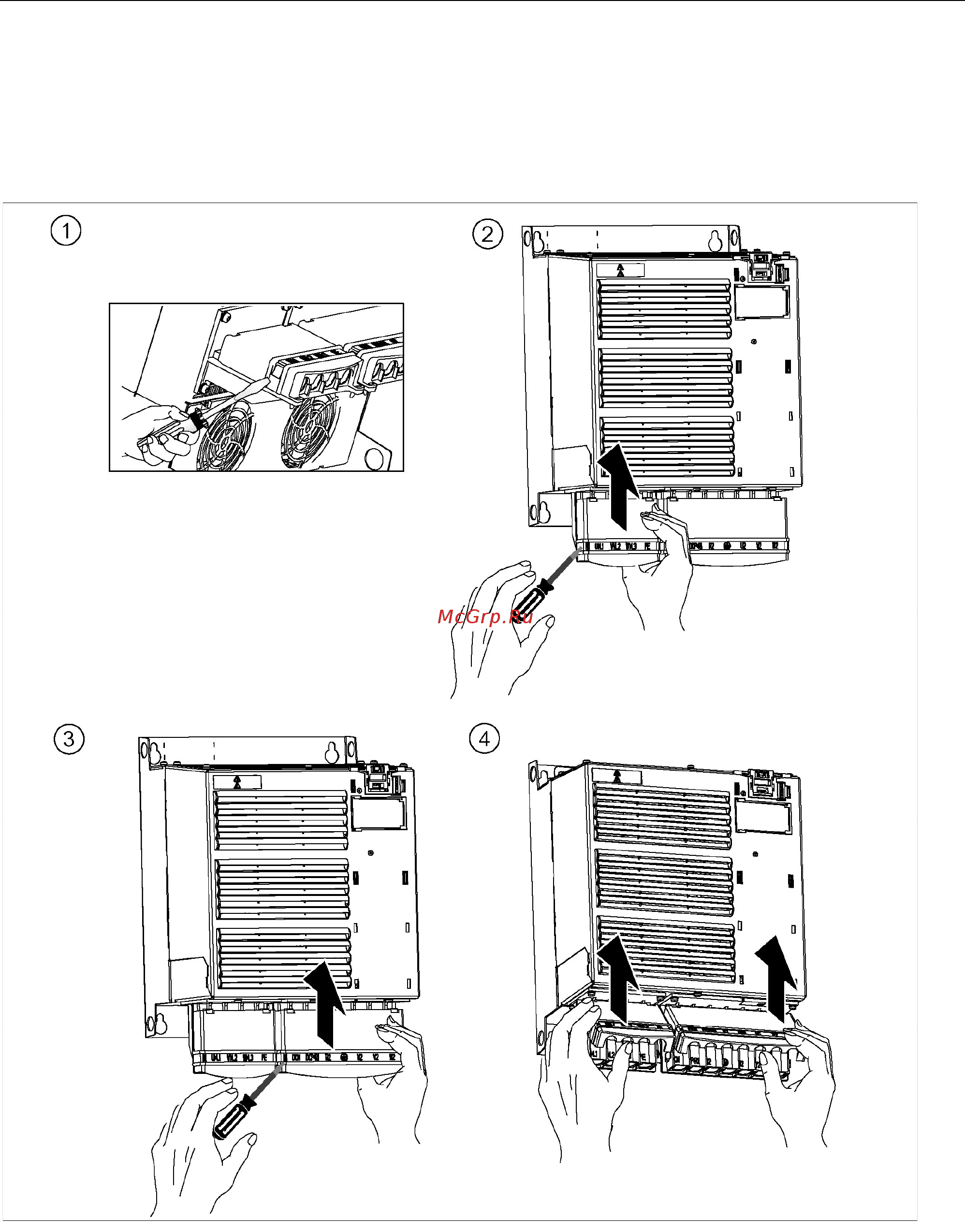

Figure 3-39 Access to the line and motor terminals for frame sizes FSD to FSF
