CU305 Control Units
6.3 Interfaces
Manual
160 Manual, 01/2011, 6SL3097-4AC10-0BP2

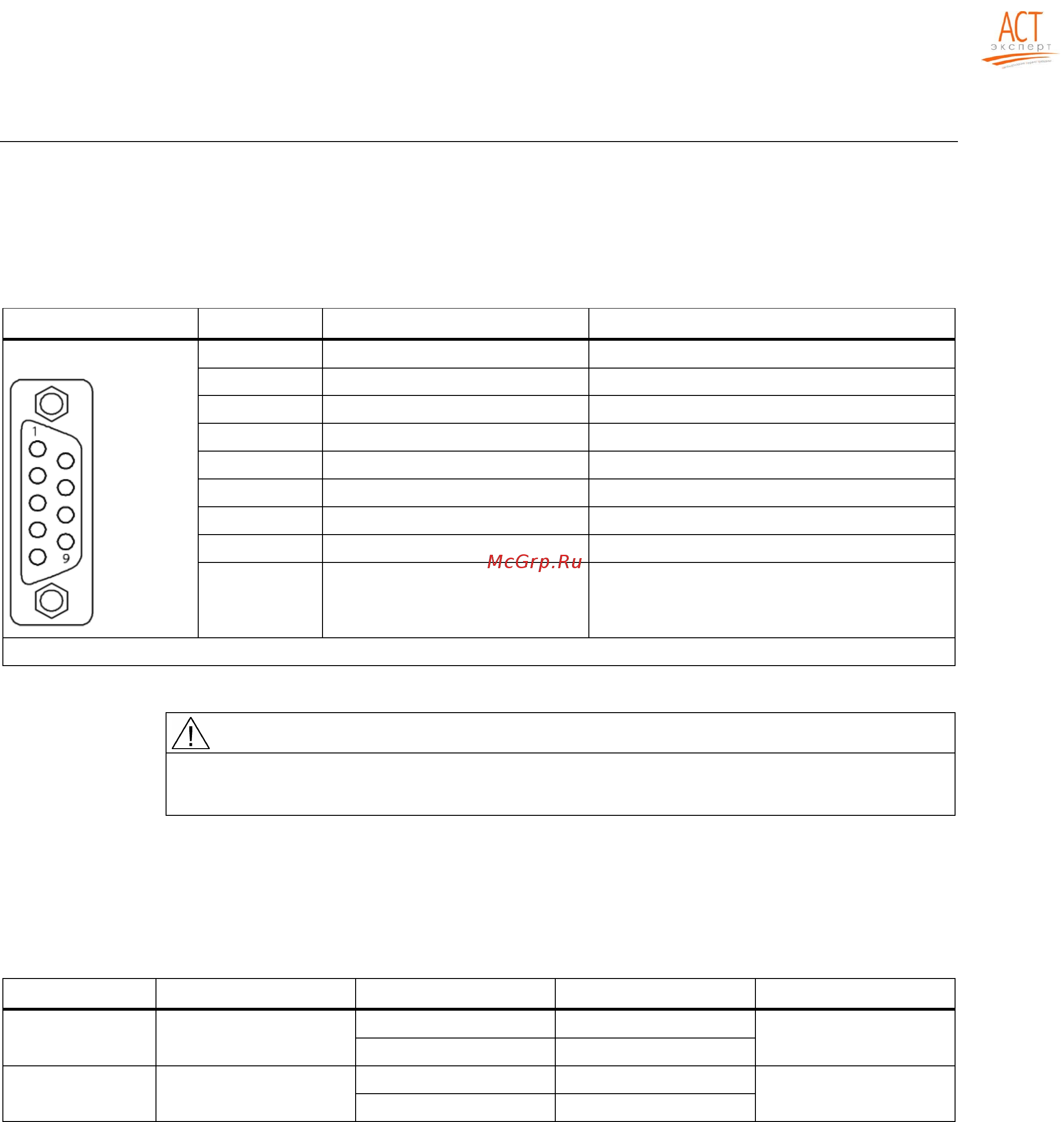

6.3.3.2 X126 CAN interface
Table 6- 6 X126 CAN interface
Pin Signal name Technical specifications
1 Reserved, do not use
2 CAN_L CAN signal
3 CAN_GND CAN ground
4 Reserved, do not use
5 CAN_SHL Optional shield
6 CAN_GND CAN ground
7 CAN_H CAN signal
8 Reserved, do not use
9 Reserved, do not use
Type: 9-pin SUB D socket
CAUTION
If the CAN interface is connected to the PROFIBUS connector, then this can destroy the
CAN interface.
6.3.3.3 S100 DIP switch
Table 6- 7 DIP switch
Switch Function Switch setting Default
Off Inactive 2 Bus terminating resistor
120 Ohm
On Active
Off
Off Ground-free operation 1 Ungrounded, grounded
operation
On Operation with ground
Off
