Accessories
8.2 DRIVE-CLiQ coupling
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
237
8.2.5 Installation
RU01P
RU01P
s
s
s
s
&RQWDFWVXUIDFHV

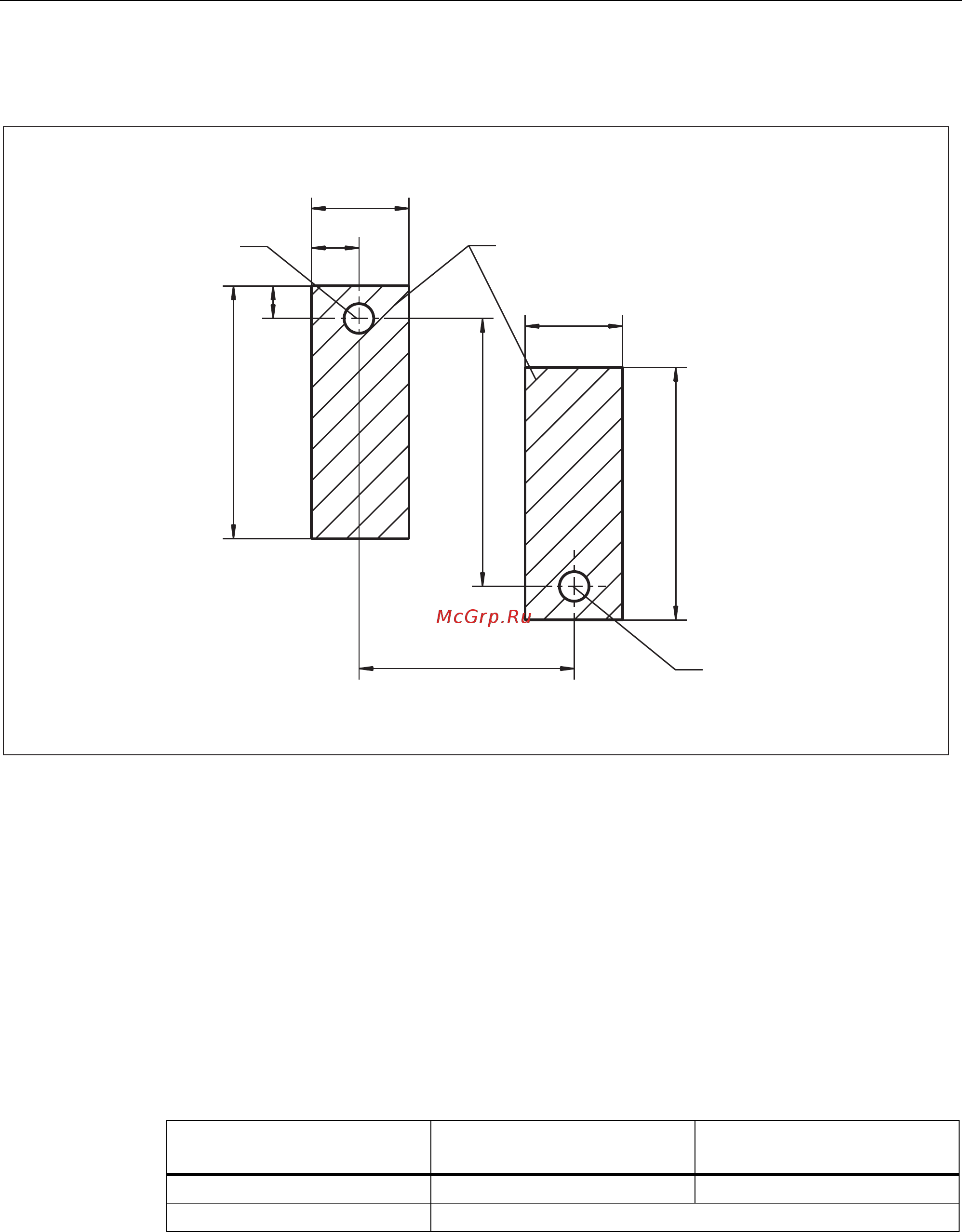

Figure 8-7 Hole drilling pattern for installation
1. Fit the DRIVE-CLiQ coupling to the mounting surface in accordance with the drilling
pattern.
2. Remove the protective caps from the DRIVE-CLiQ coupling.
3. Insert the DRIVE-CLiQ plugs at both ends of the DRIVE-CLiQ coupling until they latch
into place.
8.2.6 Technical data
Table 8- 2 Technical data
DRIVE-CLiQ coupling 6SL3066-
2DA00-0AB0
Unit
Weight kg 0.272
Degree of protection IP67 acc. to EN 60529
