Mains connection and line-side power components
2.8 Line reactors
Manual
50 Manual, 01/2011, 6SL3097-4AC10-0BP2
(
'

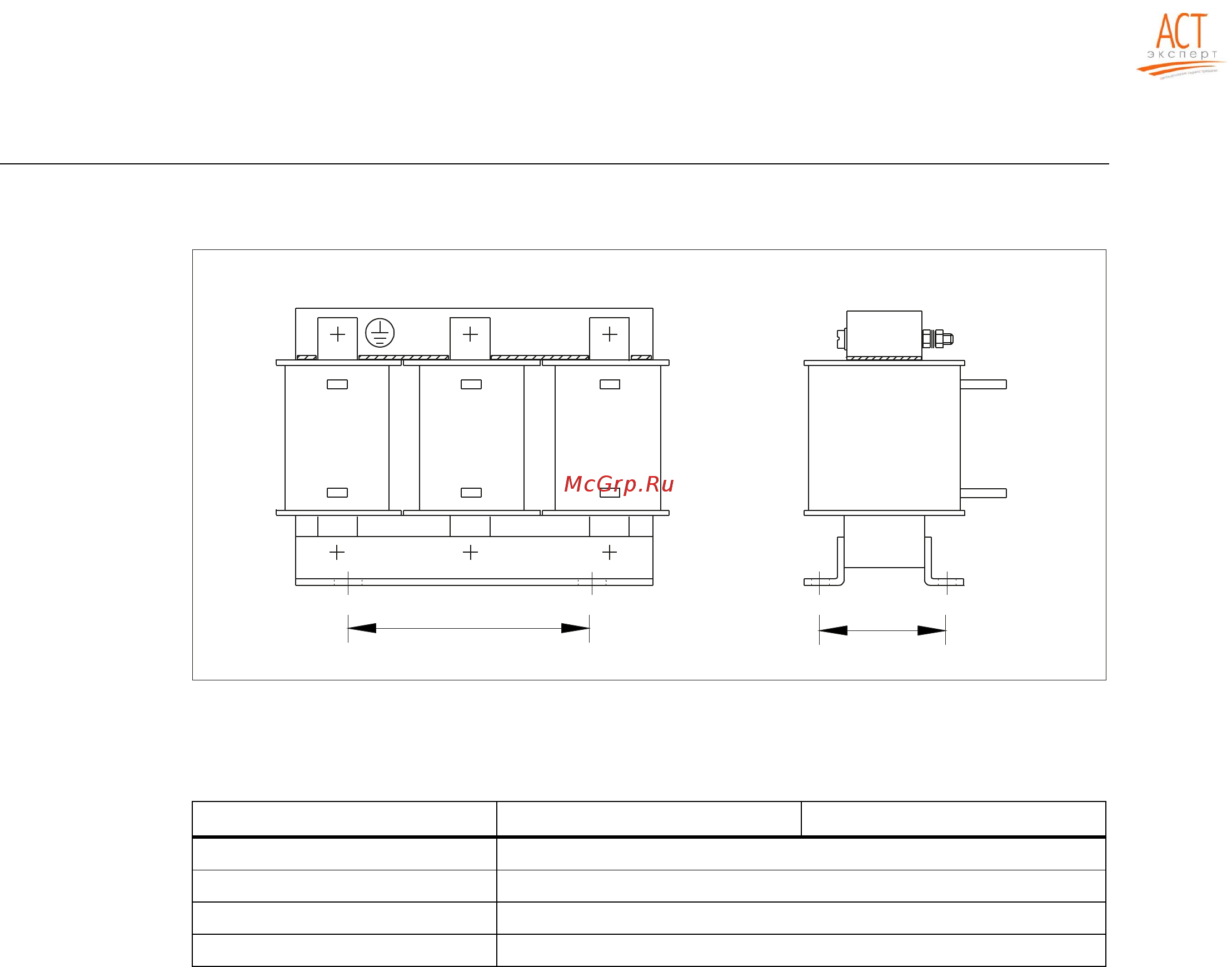

Figure 2-10 Mounting dimensions for line reactors with frame size FSF
Table 2- 9 Mounting dimensions for line reactors with frame size FSF, all data in mm and (inches)
Line reactor 6SE6400- 3CC11-2FD0 3CC11-7FD0
Frame size FSF
D 185 (7.28)
E 95 (3.74)
Securing screws 4 x M8/13 Nm
