CU305 Control Units
6.3 Interfaces
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
155
Note
The address switches, which are located beneath the cover for the Basic Operator Panel
BOP, have no function for the CU305 PN.
6.3.1.2 X150 P1 / P2 PROFINET

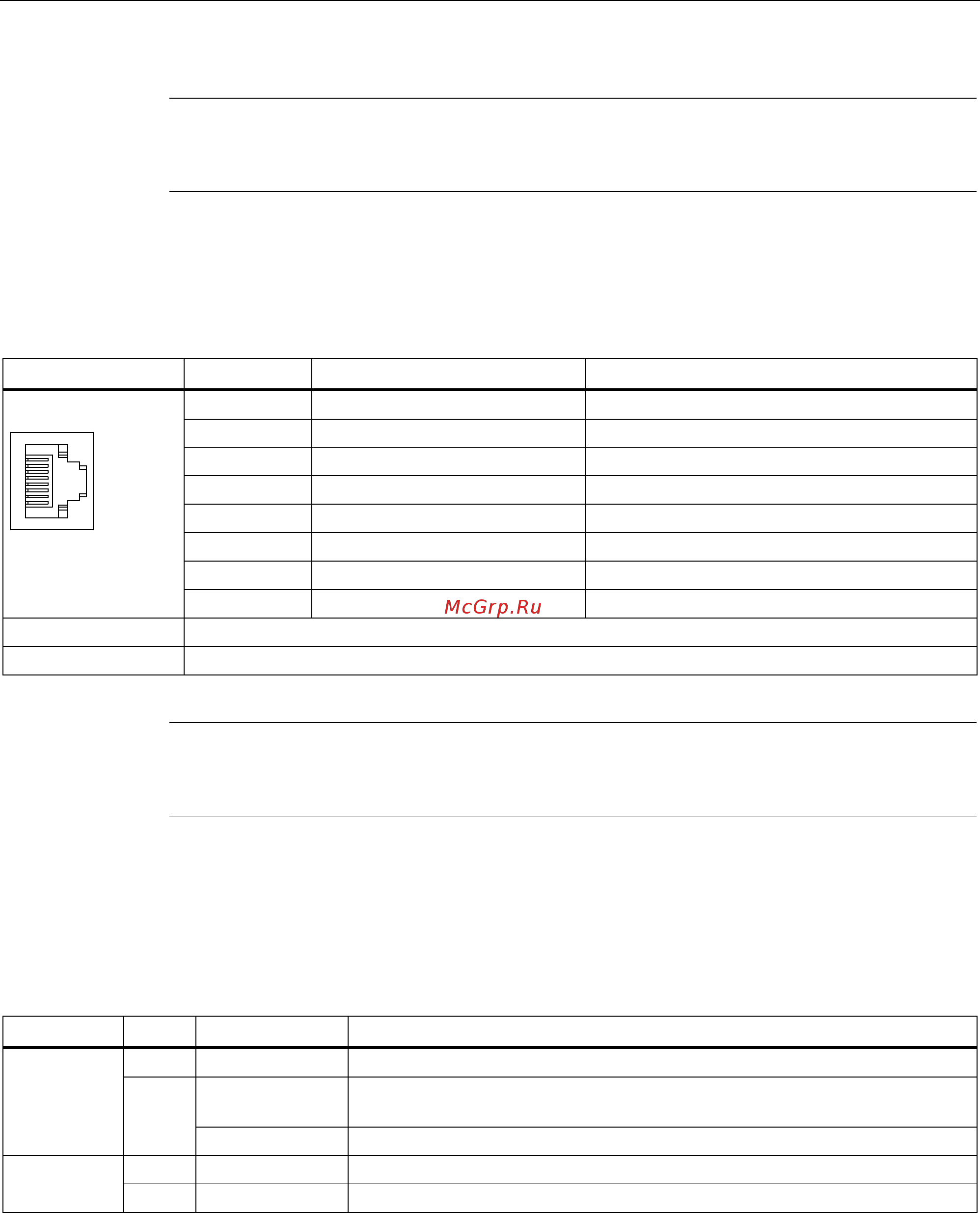

Table 6- 2 X150 P1 and X150 P2 PROFINET
Pin Signal name Technical specifications
1 RXP Receive data +
2 RXN Receive data -
3 TXP Transmit data +
4 Reserved, do not use -
5 Reserved, do not use -
6 TXN Transmit data -
7 Reserved, do not use -
8 Reserved, do not use -
Connector type: RJ45 socket
Data rate: 100 Mbits or 10 Mbits
Note
The PROFINET interfaces support Auto MDI(X). It is therefore possible to use both crossed
and uncrossed cables to connect the devices.
There are four LEDs on the front panel of the CU305 PN to display status information about
the PROFINET interfaces (see section: "Interface overview", Figure: "CU305 PN interface
overview").
The table shows the status information these indicate.
Table 6- 3 LED states on the X150 P1/P2 PROFINET interface
LED Color Status Description
- OFF Missing or faulty link
0.5 Hz flashing
light
Connection establishment
LNKx
Green
Continuous 10 or 100 Mbit link available
- OFF No activity ACTx
Yellow Flashing light Sending or receiving data to/from port x
