Supplementary system components and encoder system integration
7.4 Sensor Module Cabinet-Mounted SMC30
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
209

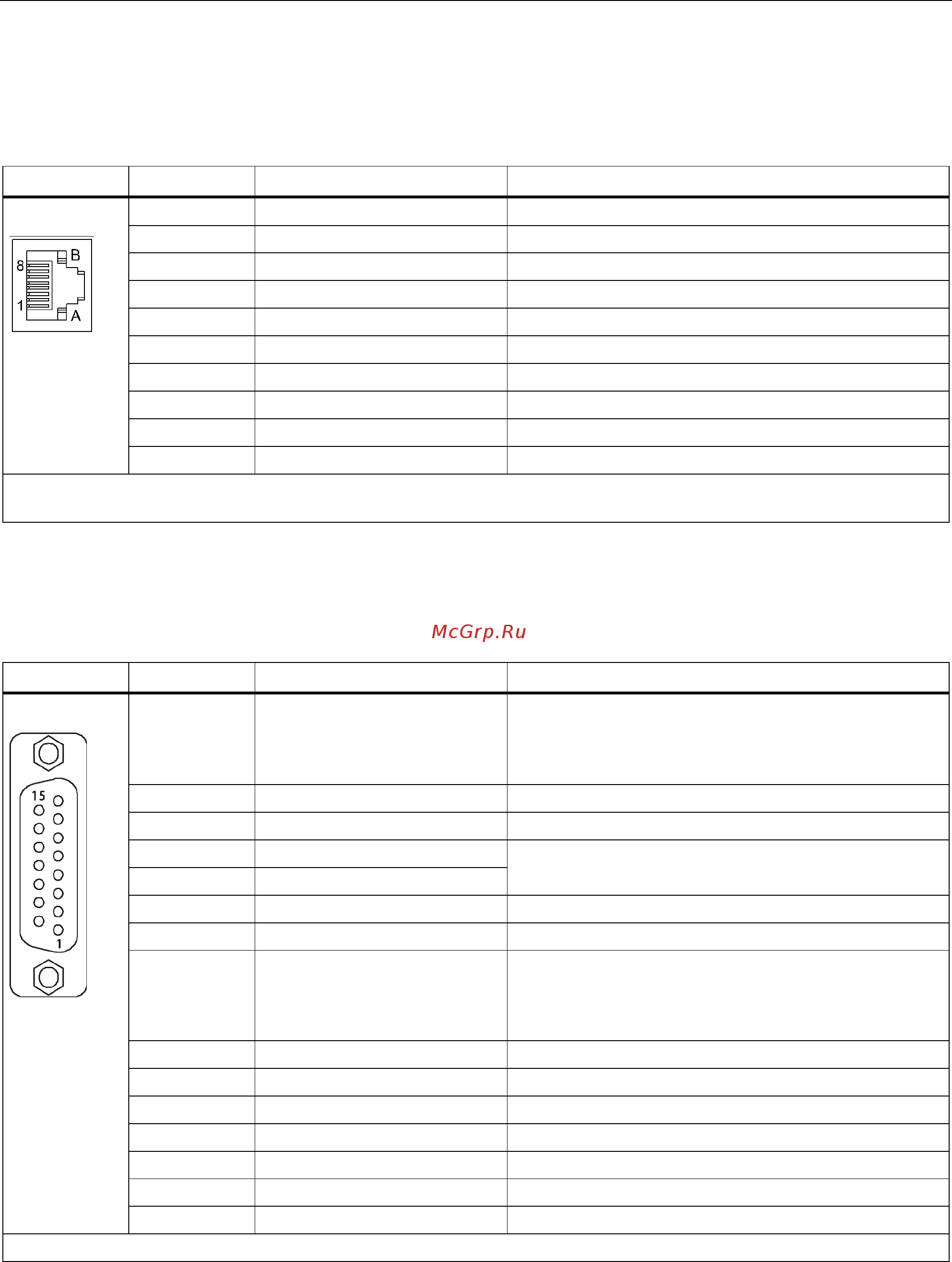

7.4.3.2 DRIVE-CLiQ interface X500
Table 7- 14 DRIVE-CLiQ interface X500
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A Reserved, do not use
B GND (0 V) Electronic ground
Connector type: RJ45 socket; blanking plate for DRIVE-CLiQ interface included in the scope of delivery;
blanking plate (50 pieces) Order no.: 6SL3066-4CA00-0AA0
7.4.3.3 X520 encoder system interface
Table 7- 15 X520 encoder system interface
Pin Signal name Technical specifications
1 Reserved, do not use
+ Temp
Motor temperature sensing KTY84-1C130 (KTY+)
Temperature sensor KTY84-1C130/PTC/bimetallic
switch with NC contact
2 Clock SSI clock
3 Clock* Inverse SSI clock
4 P encoder 5 V / 24 V
5 P encoder 5 V / 24 V
Encoder power supply
6 P sense Sense input encoder power supply
7 M encoder (M) Ground for encoder power supply
8 Reserved, do not use
- Temp
Motor temperature sensing KTY84-1C130 (KTY-)
Temperature sensor KTY84-1C130/PTC/bimetallic
switch with NC contact
9 M sense Ground sense input
10 R Reference signal R
11 R* Inverse reference signal R
12 B* Inverse incremental signal B
13 B Incremental signal B
14 A* / data* Inverse incremental signal A/inverse SSI data
15 A / data Incremental signal A/SSI data
Connector type: SUB-D female, 15-pin
