Supplementary system components and encoder system integration
7.1 Basic Operator Panel BOP20
Manual
188 Manual, 01/2011, 6SL3097-4AC10-0BP2
7.1.3 Installation
NOTICE
Make sure that you insert and withdraw the BOP20 straight into/out of the CU305 and that it
is not tilted up or down.
This prevents damage to the interface for the BOP20 at the CU305.
Mounting

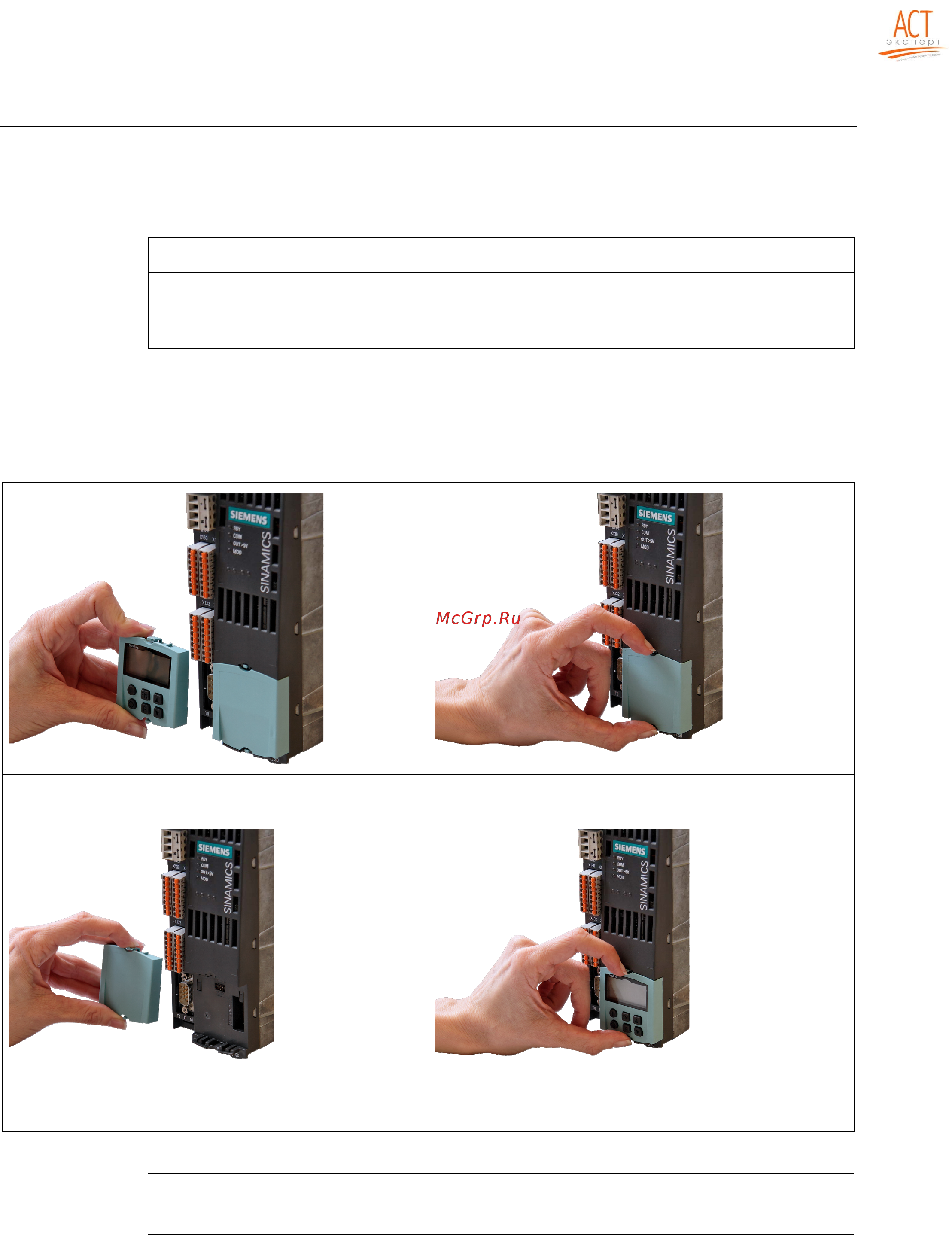

The photographs show how to mount the Basic Operator Panel BOP20 on a CU305.
1. BOP20 and Control Unit CU305 2. Press the latching cams of the cover together
simultaneously.
3. To remove the blanking cover, press the latching cams of
the cover together simultaneously and pull the cover straight
out.
4. Press the latching cams on the BOP20 together
simultaneously and push the BOP20 straight into the
housing of the CU305 until you hear it latch into position.
Note
The BOP20 may be inserted or withdrawn while the Control Unit is operational.
