Siemens 6SL3210-1SB11-0UA0 [246/318] Frame size fsb fsc
![Siemens 6SL3210-1SB11-0UA0 [246/318] Frame size fsb fsc](/views2/1587218/page246/bgf6.png)
Accessories
8.3 Screening Kit
Manual
246 Manual, 01/2011, 6SL3097-4AC10-0BP2
Frame size FSB/FSC
)HUULWHFRUH

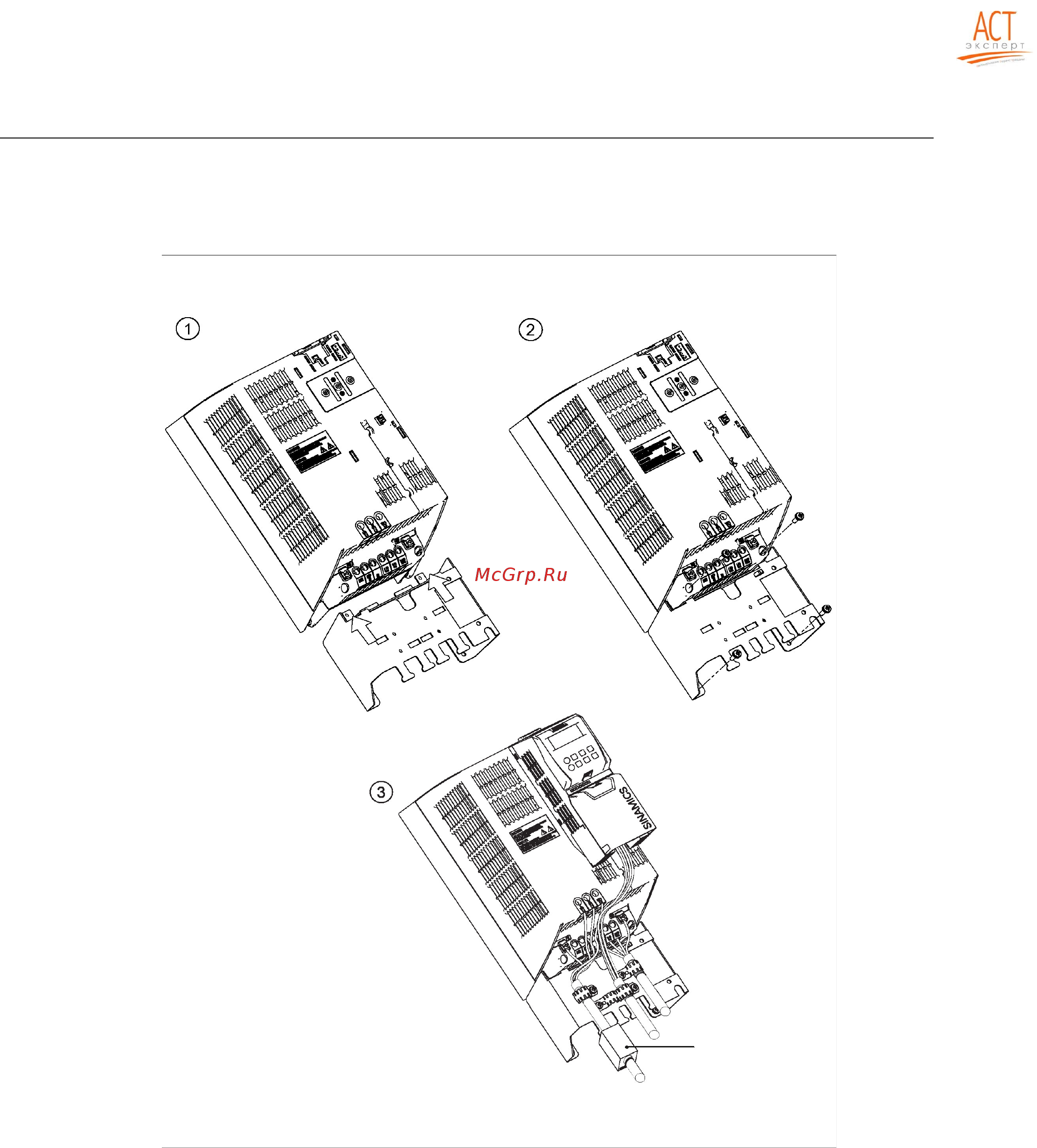

Figure 8-19 Mounting a Screening Kit and ferrite core on a Power Module of frame sizes FSB and
FSC
