Power Modules
3.1 Power Modules Blocksize (PM340)
Manual
74 Manual, 01/2011, 6SL3097-4AC10-0BP2
Arrangement of the line supply and motor terminals

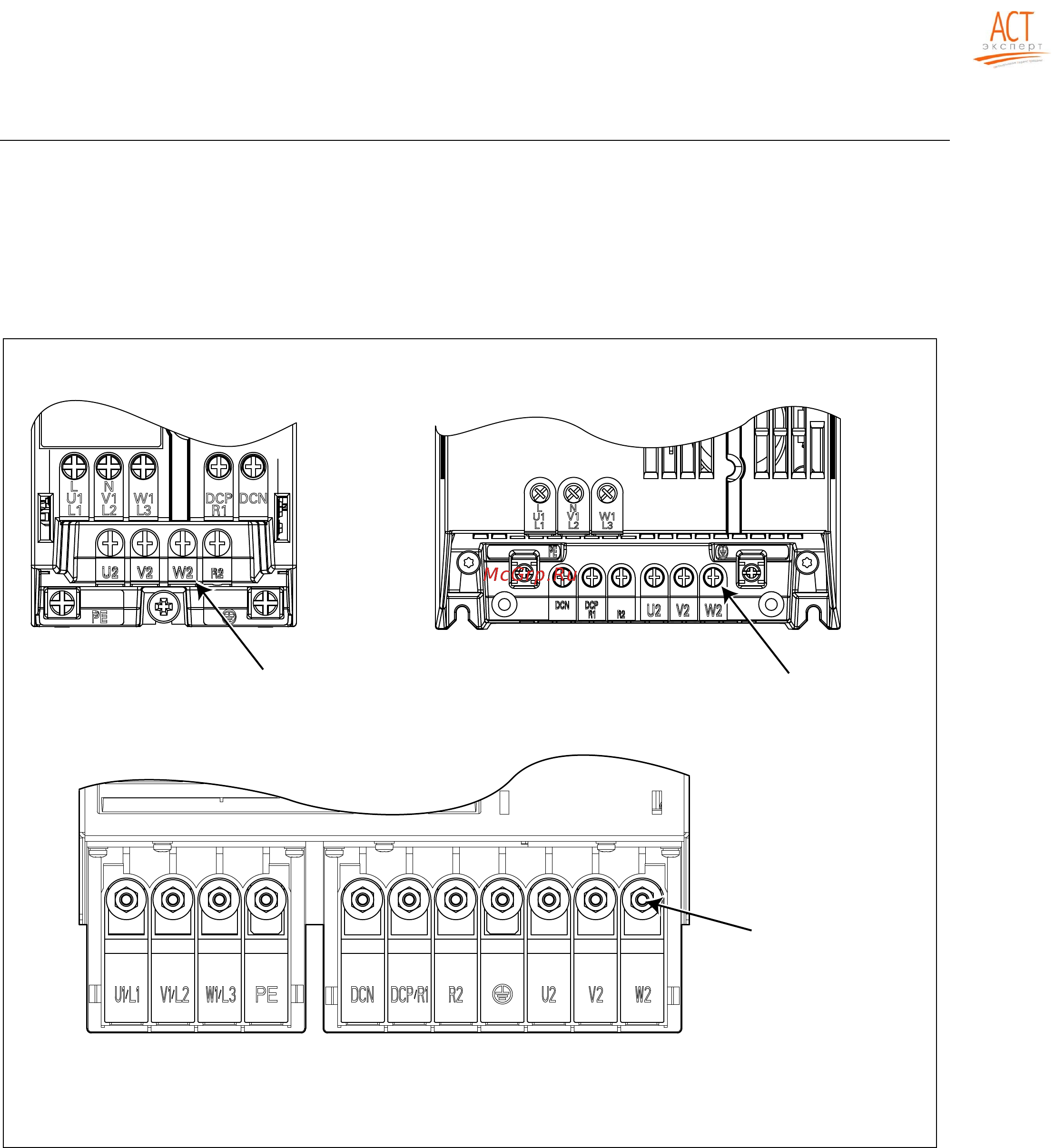

The following diagram shows the arrangement of the line and motor terminals for frame sizes
FSA to FSF of the PM340 Power Module. The diagram also includes the terminal tightening
torques.
)UDPHVL]HV)6'WR)6)
)UDPHVL]HV)6')6(
01P
)UDPHVL]H)6)
01P
)UDPHVL]H)6%1P
)UDPHVL]H)6&1P
)UDPHVL]H)6$1P
Figure 3-7 Arrangement of the line supply and motor terminals for the PM340
