Siemens 6SL3210-1SB11-0UA0 [185/318] Description
![Siemens 6SL3210-1SB14-0AA0 [185/318] Description](/views2/1587218/page185/bgb9.png)
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
185
Supplementary system components and encoder
system integration
7
7.1 Basic Operator Panel BOP20
7.1.1 Description
The Basic Operator Panel BOP20 contains six keys and a backlit display unit. The BOP20
can be plugged onto a SINAMICS Control Unit and operated.
The following functions are possible with the BOP:
● Input of parameters and activation of functions
● Display of operating modes, parameters, alarms and faults
7.1.2 Interface description

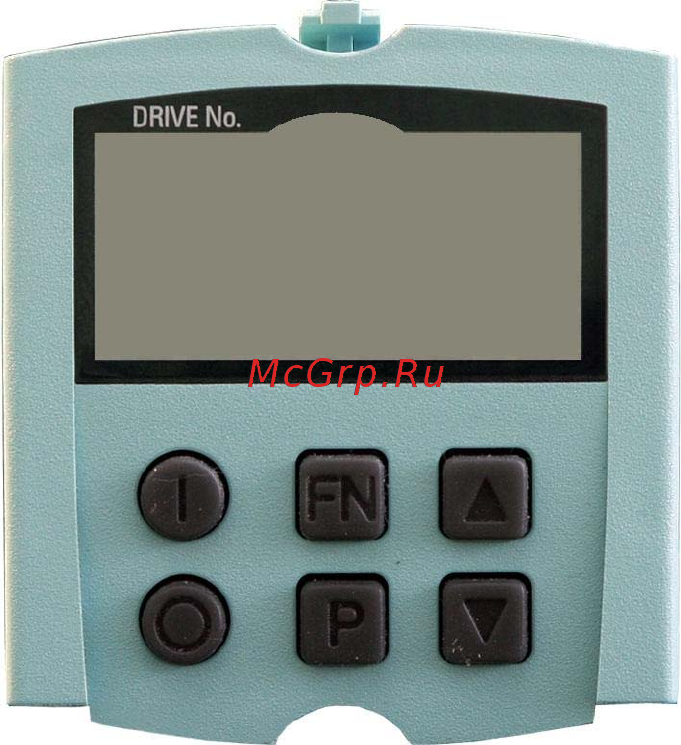

Figure 7-1 Basic Operator Panel BOP20
