CU305 Control Units
6.3 Interfaces
Manual
166 Manual, 01/2011, 6SL3097-4AC10-0BP2
DANGER
Risk of electric shock!
Only temperature sensors that meet the safety isolation specifications contained in
EN 61800-5-1 may be connected to terminals "+Temp" and "-Temp".
If these instructions are not complied with, there is a risk of electric shock!

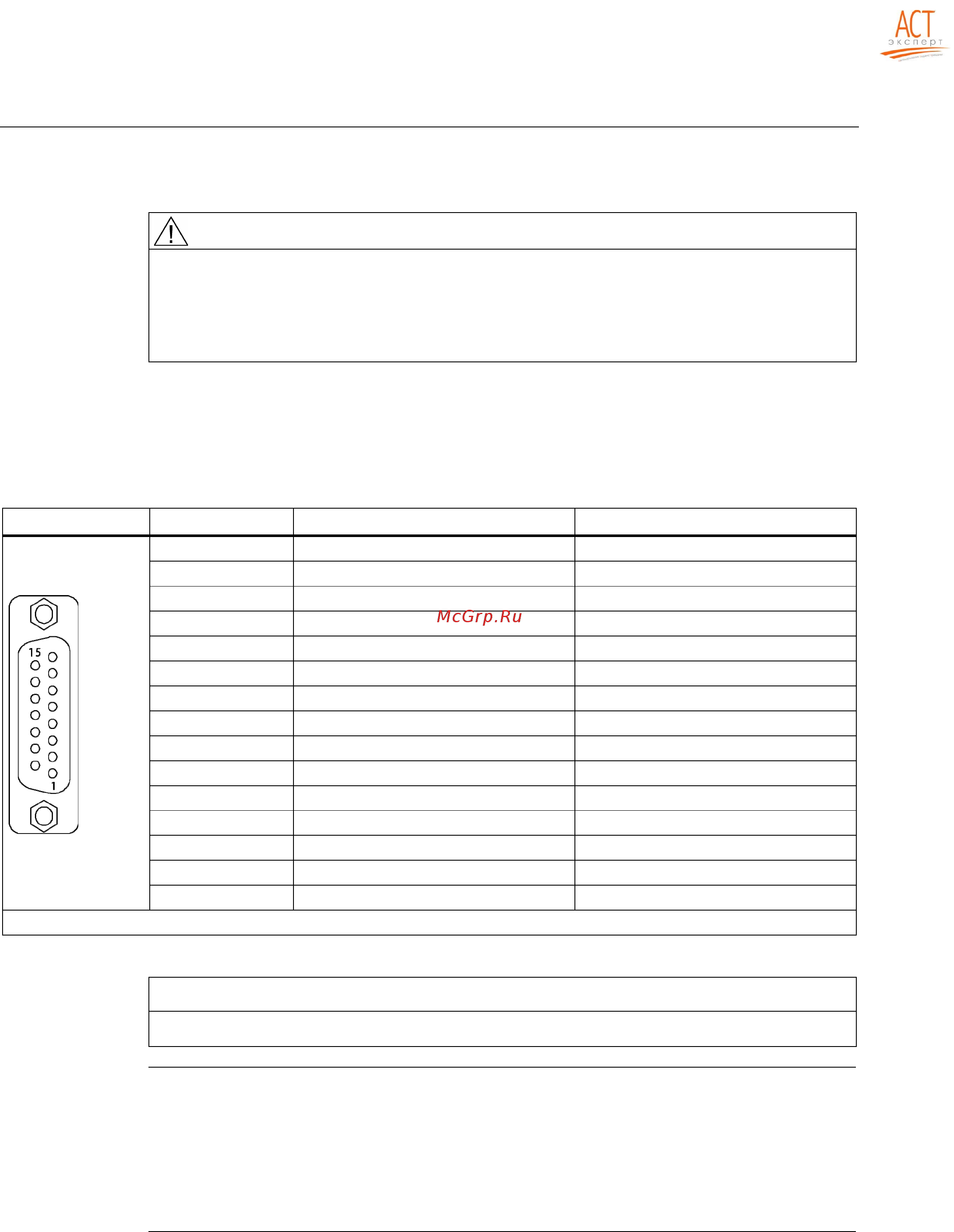

6.3.4.7 X23 HTL/TTL/SSI encoder interface
Table 6- 14 Encoder connection X23
Pin Signal name Technical specifications
1 + Temp KTY or PTC input
2 SSI_CLK SSI clock, positive
3 SSI_XCLK SSI clock, negative
4 P_Encoder 5 V / 24 V Encoder power supply
5 P_Encoder 5 V/24 V Encoder power supply
6 P_Sense Sense input encoder power supply
7 M Ground for encoder power supply
8 M (- Temp) Ground for KTY or PTC
9 M_Sense Ground sense input
10 RP R track positive
11 RN R track negative
12 BN B track negative
13 BP B track positive
14 AN_SSI_XDAT A track negative / SSI data negative
15 AP_SSI_DAT A track positive / SSI data positive
Type: 15-pin sub D connector
NOTICE
The KTY temperature sensor must be connected with the correct polarity.
Note
There are two ways of connecting the temperature sensor:
1. via X133, terminal 7 and 8
2. via X23, pin 1 and 8
However, only one temperature sensor may be connected as otherwise the parallel circuit
will be recorded and incorrect temperature values will be generated.
