Mains connection and line-side power components
2.8 Line reactors
Manual
46 Manual, 01/2011, 6SL3097-4AC10-0BP2
&
$
%

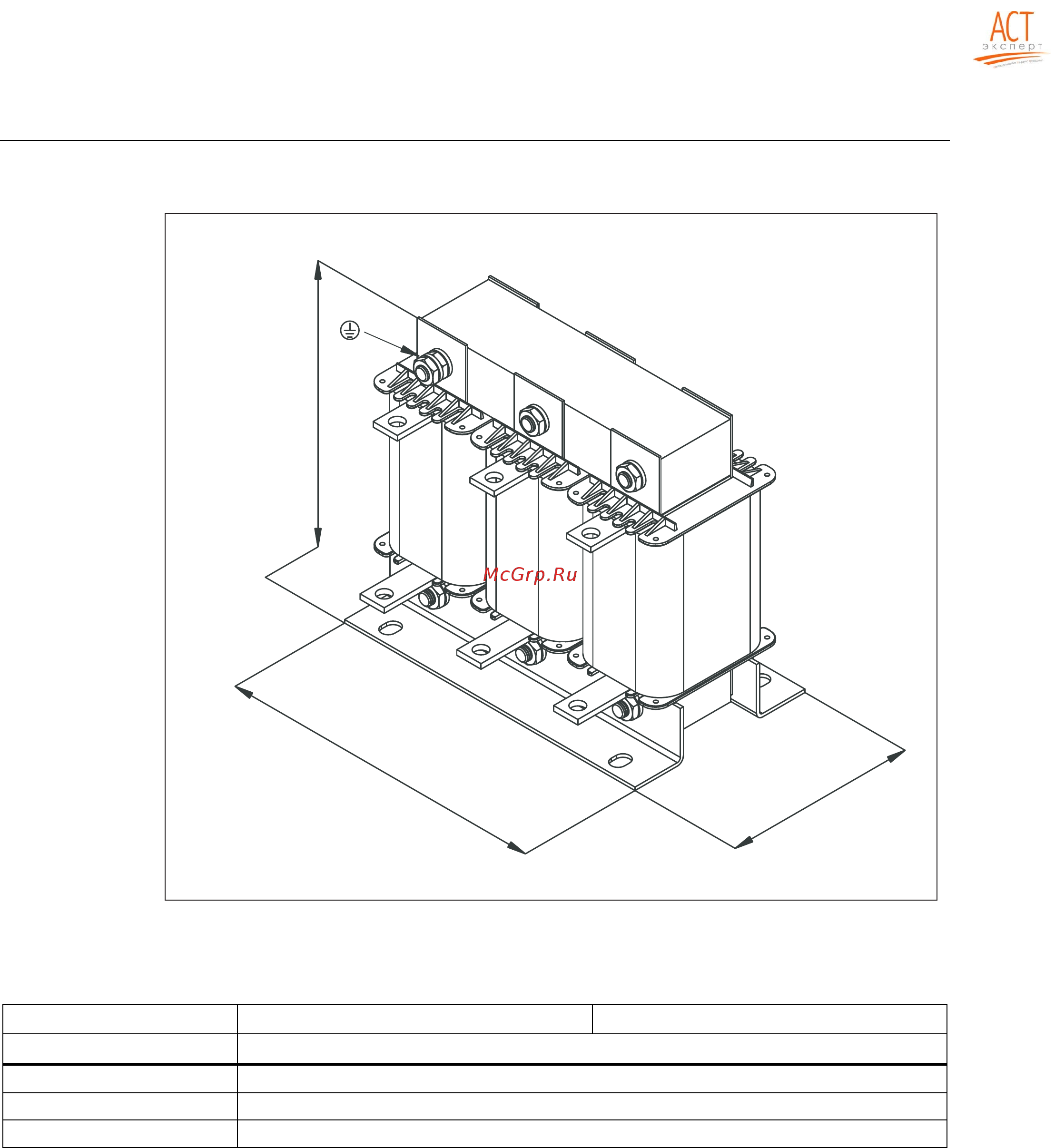

Figure 2-6 Dimension drawing of line reactor, frame size FSF
Table 2- 5 Dimensions of line reactor, frame size FSF, all data in mm and (inches)
Line reactor 6SE6400- 3CC11-2FD0 3CC11-7FD0
Frame size FSF
A 240 (9.44)
B 141 (5.55)
C 228 (8.97)
2.8.4 Installation
The line reactors for Power Modules with frame sizes FSA to FSE are designed as sub-
chassis components. The line reactor is attached to the mounting surface and, to save
space, the Power Module is mounted directly on the line reactor. The cables to the Power
Modules are already connected at the line reactor. The line reactor is connected to the line
supply through terminals.
When installed, the power supply terminals are at the top on frame sizes FSA to FSC, and at
the bottom on frame sizes FSD and FSE.
