Motor-side power components
5.1 Motor reactors (blocksize)
Manual
142 Manual, 01/2011, 6SL3097-4AC10-0BP2
,
,
*
+
+
-
-
)UDPHVL]H)6&
)UDPHVL]H)6%

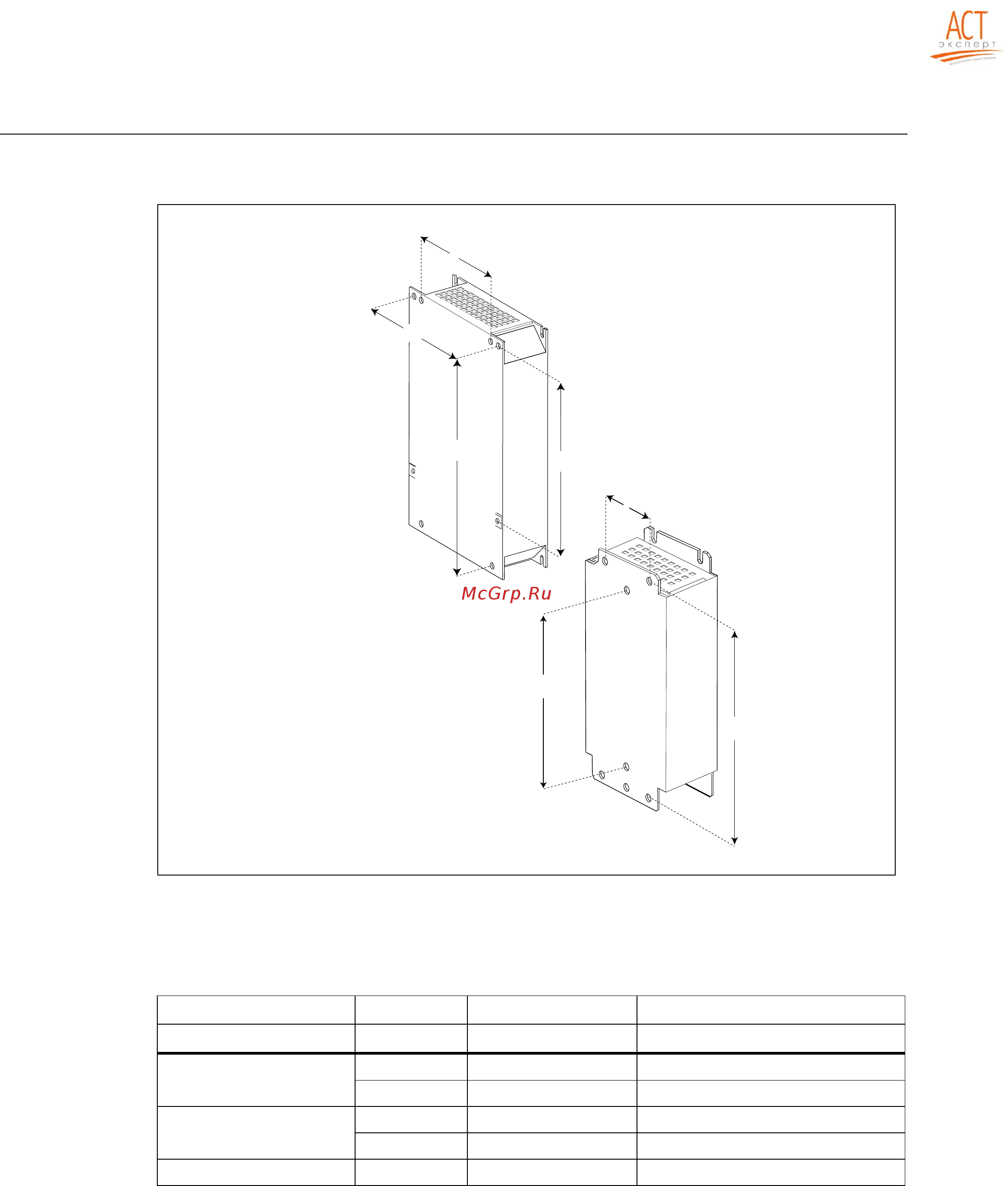

Figure 5-7 Mounting dimensions of motor reactors, frame sizes FSB and FSC
Table 5- 6 Mounting dimensions of motor reactors, frame sizes FSB and FSC, all data in mm and
(inches)
Motor reactor 6SL3202- 0AE21-0CA0 0AJ23-2CA0
Frame size FSB FSC
G 138 (5.43) 174 (6.85) Power Module
H 174 (6.85) 204 (8.03)
I 120 (4.72) 156 (6.14) Mounting surface
J 200 (7.87) 232 (9.13)
Fixing screw M4 M5
