Power Modules
3.1 Power Modules Blocksize (PM340)
Manual
76 Manual, 01/2011, 6SL3097-4AC10-0BP2
3.1.3.4 Braking resistor and DC link connection

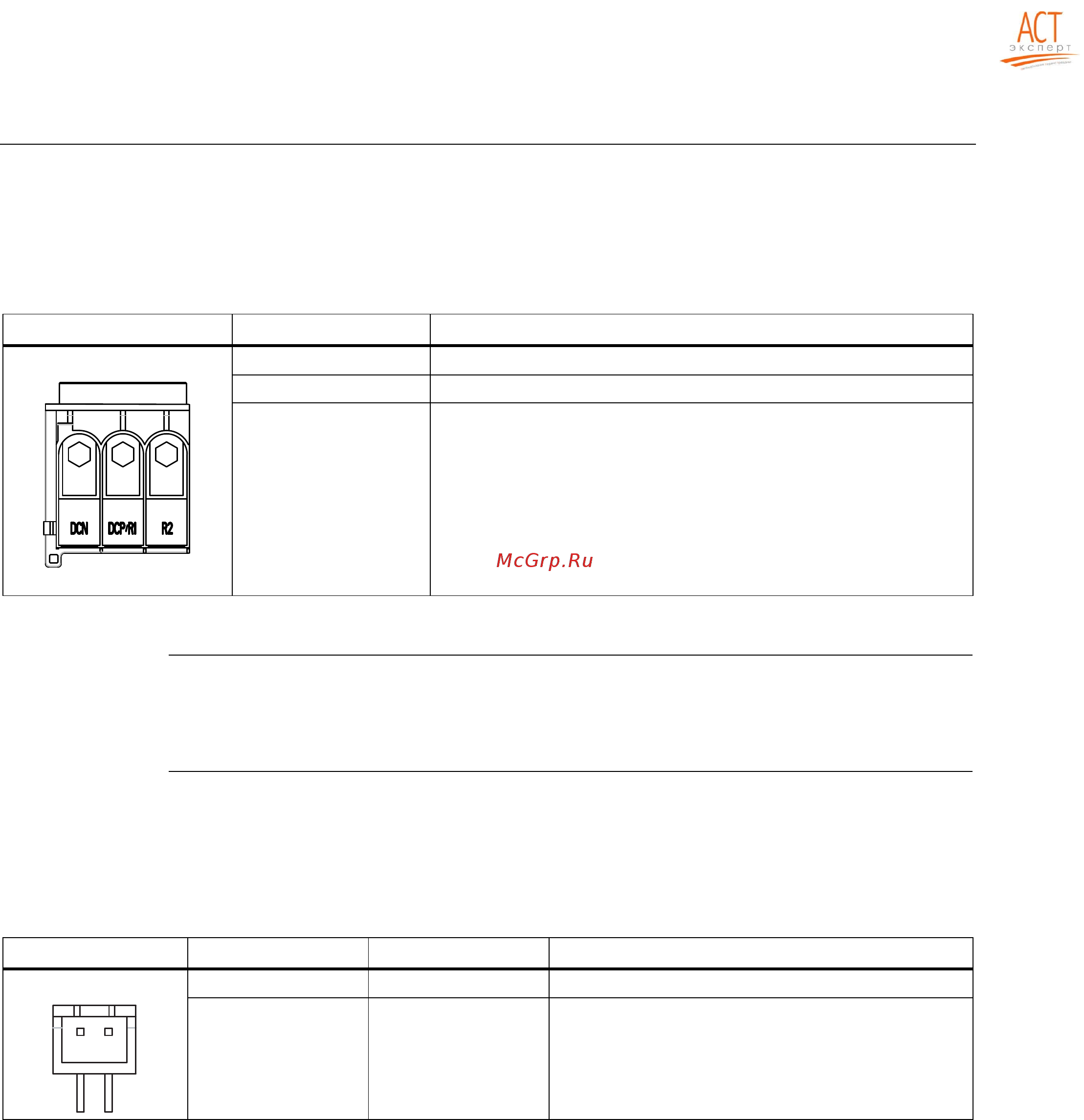

Table 3- 5 Terminal block, braking resistor, and DC link connection
Terminal Technical specifications
DCN DC link negative
DCP/R1 DC link positive and positive connection for braking resistor
R2 Negative connection for the braking resistor
Note
To connect the cable lugs of the brake resistor cable to a PM340 Power Module frame size
FSA it is necessary to nip the lug on connection R2 off using a diagonal cutter tool. Take
great care to ensure that no pieces of plastic fall into the housing.
3.1.3.5 Connection to the option module, brake control
Table 3- 6 Connector
Terminal Designation Technical specifications
1 Low Low signal, option module brake control at PM340
2 High High signal, option module brake control at PM340
