Siemens 6SL3210-1SB11-0UA0 [228/318] Mounting
![Siemens 6SL3210-1SE23-8AA0 [228/318] Mounting](/views2/1587218/page228/bge4.png)
Supplementary system components and encoder system integration
7.5 Option modules, braking signal
Manual
228 Manual, 01/2011, 6SL3097-4AC10-0BP2
7.5.2.5 Mounting
The Safe Brake Relay can be mounted below the Power Module on the Screening Kit.
5HWDLQLQJVFUHZV
6DIH%UDNH5HOD\

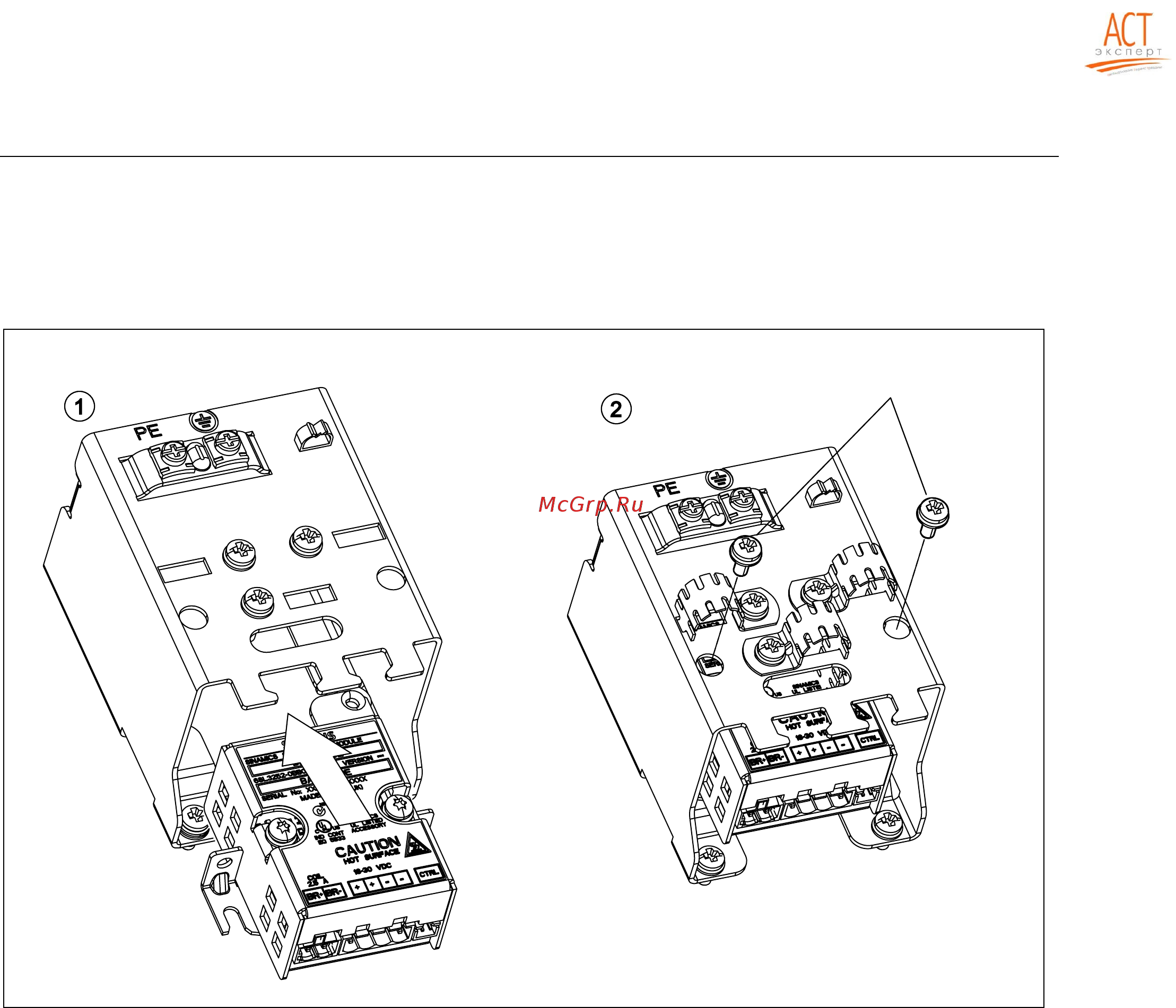

Figure 7-23 Mounting the Safe Brake Relay on the Screening Kit (frame size FSA)
