Accessories
8.3 Screening Kit
Manual
238 Manual, 01/2011, 6SL3097-4AC10-0BP2
8.3 Screening Kit
8.3.1 Description
A Screening Kit is offered as an optional shield support for Power Modules in frame sizes
FSA to FSF. It provides shield support for the power cables. The Screening Kit is screwed
directly onto the wall of the control cabinet for frame sizes FSA to FSC. With frame sizes
FSD to FSF, it is attached to the Power Module. For frame sizes FSB and FSC, the
Screening Kit accessories pack contains a ferrite core for damping radio cable disturbances.

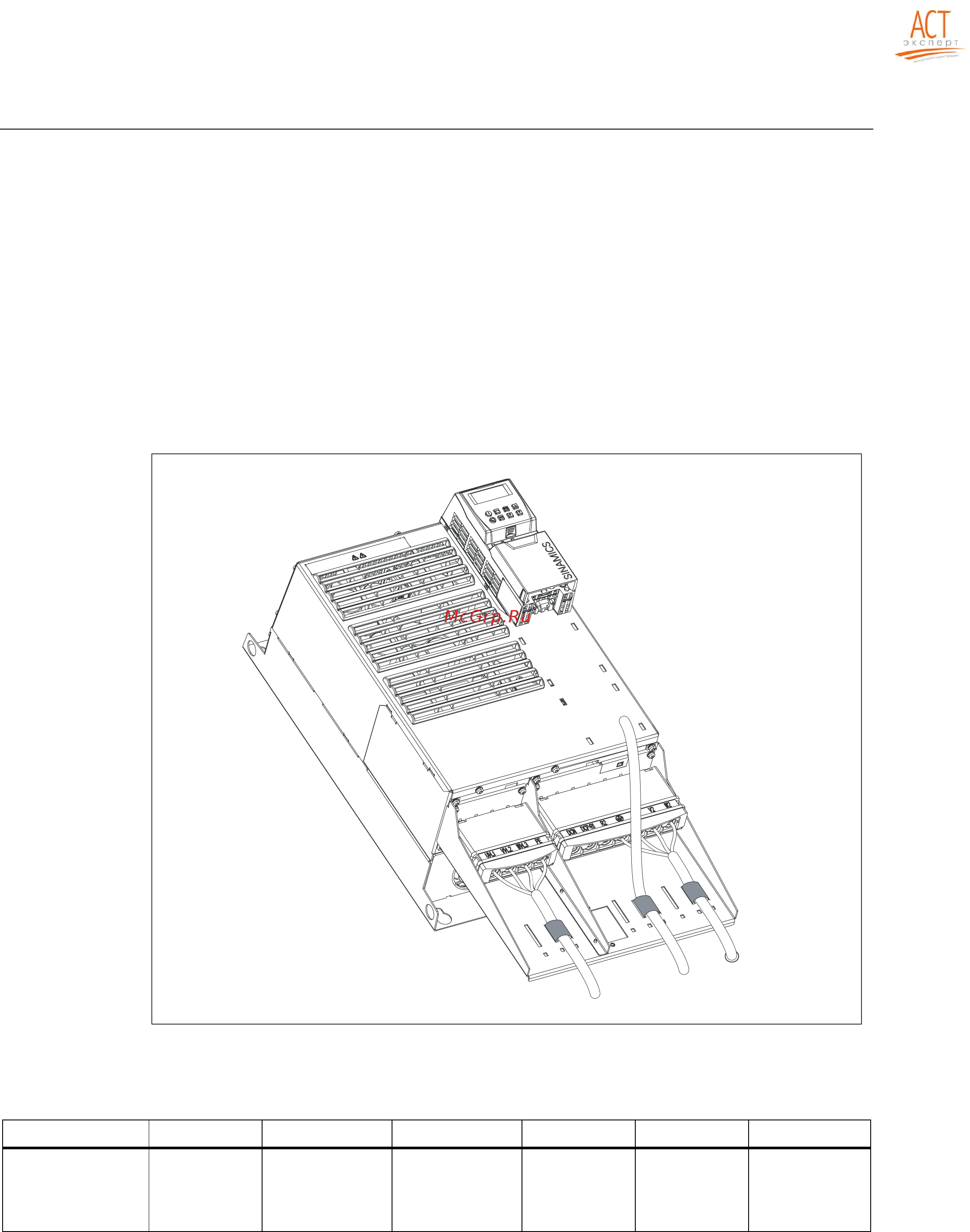

Figure 8-8 Power Module PM340 (frame sizes FSD, FSE) with CUA31 and Screening Kit
Table 8- 3 Overview of Screening Kits
PM340 frame size FSA FSB FSC FSD FSE FSF
Screening Kit
6SL3262-
1AA00-0BA0
1AB00-0DA0
(with ferrite
core)
1AC00-0DA0
(with ferrite
core)
1AD00-0DA0
1AD00-0DA0
1AF00-0DA0
