CU305 Control Units
6.3 Interfaces
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
161

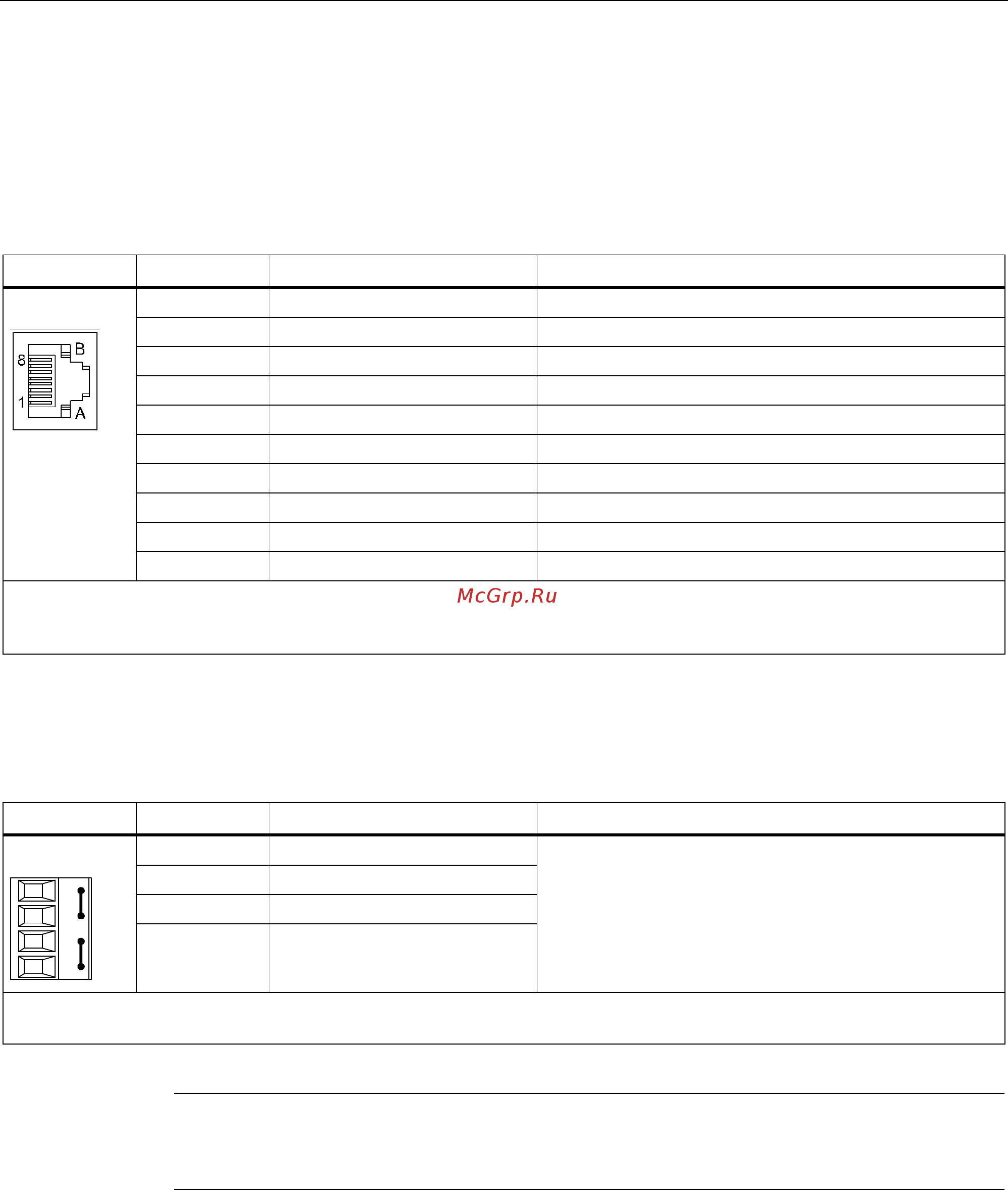

6.3.4 Common interfaces for CU305 PN/DP/CAN
6.3.4.1 X100 DRIVE-CLiQ interface
Table 6- 8 DRIVE-CLiQ interface
Pin Signal name Technical specifications
1 TXP Transmit data +
2 TXN Transmit data -
3 RXP Receive data +
4 Reserved, do not use
5 Reserved, do not use
6 RXN Receive data -
7 Reserved, do not use
8 Reserved, do not use
A + (24 V) Power supply
B GND (0 V) Electronics ground
Connector type: RJ45 socket; blanking plate for DRIVE-CLiQ interface included in the scope of delivery;
blanking plate (50 pieces) Order number: 6SL3066-4CA00-0AA0
The maximum DRIVE-CLiQ cable length is 100 m.
6.3.4.2 Electronics power supply X124
Table 6- 9 Terminal block X124
Terminal Function Technical specifications
+ Electronics power supply
+ Electronics power supply
M Electronic ground
+
M
M Electronic ground
Voltage: 24 V DC (20.4 V - 28.8 V)
Current consumption: max. 0.8 A (incl. 0.35A for HTL
encoders, without DRIVE-CLiQ and digital outputs)
Max. current via jumper in connector: 20 A
Max. connectable cross-section: 2.5 mm
2
Type: Screw-type terminal (see Appendix A)
Note
The two "+" or "M" terminals are jumpered in the connector. This ensures that the supply
voltage is looped through.
