Supplementary system components and encoder system integration
7.5 Option modules, braking signal
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
225
Electronics power supply X524

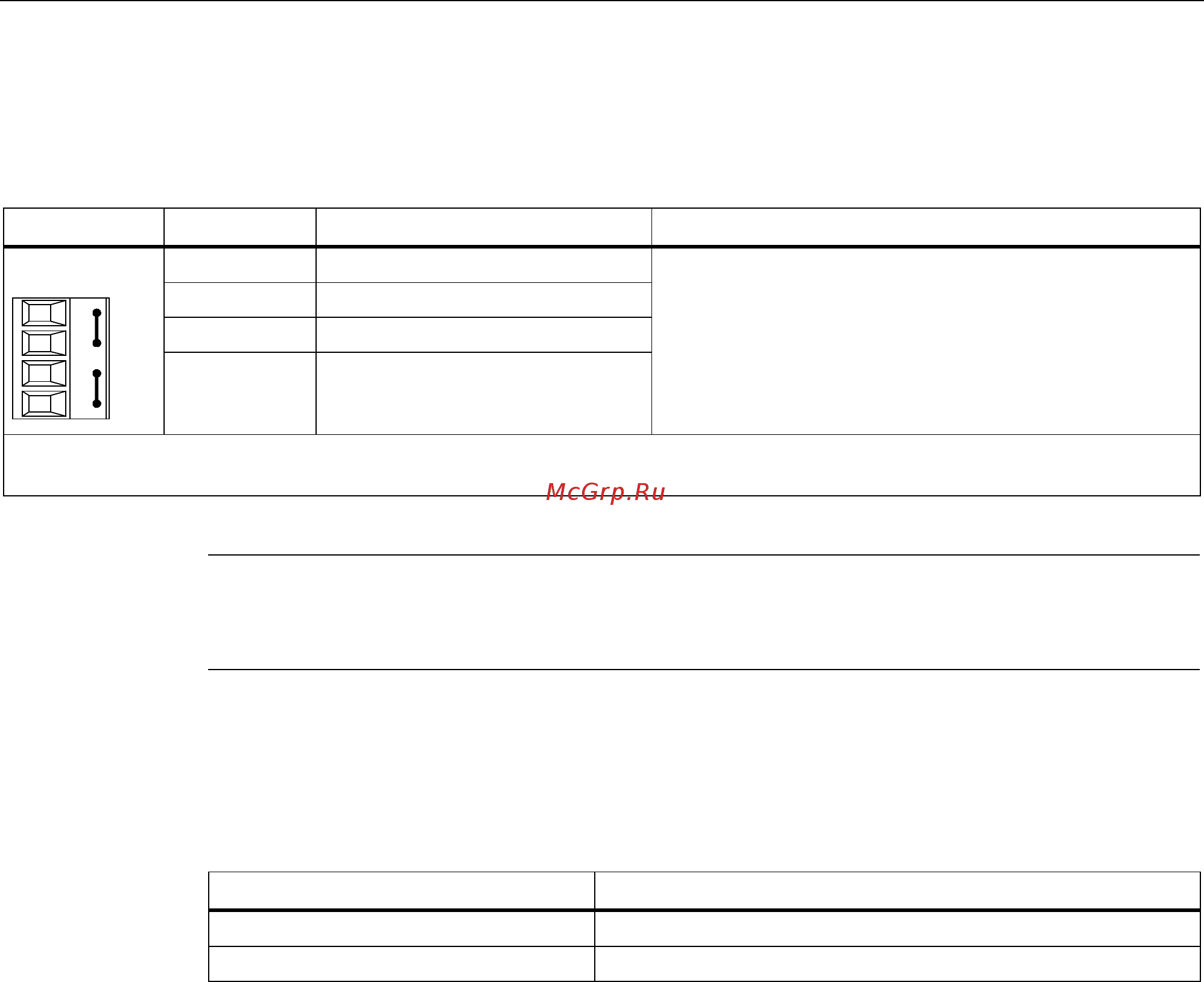

Table 7- 24 Terminal block X524
Terminal Function Technical specifications
+ Electronics power supply
+ Electronics power supply
M Electronic ground
+
M
M Electronic ground
Voltage: 24 V (20.4 V – 28.8 V)
Current consumption: max. 0.3 A (without motor
holding brake)
Maximum current via jumper in connector: 20 A
Max. connectable cross-section: 2.5 mm²
Type: Screw-type terminal (see Appendix A)
Note
The two "+" or "M" terminals are jumpered in the connector. This ensures that the supply
voltage is looped through.
Brake connection
Table 7- 25 Connector
Designation Technical specifications
Brake connection Relay output (close)
PE connection M4 / 3 Nm
