CU305 Control Units
6.7 Mounting
Manual
Manual, 01/2011, 6SL3097-4AC10-0BP2
183
6.7 Mounting
Snap-mounting the CU305 onto the Power Module PM340
(frame size FSA)

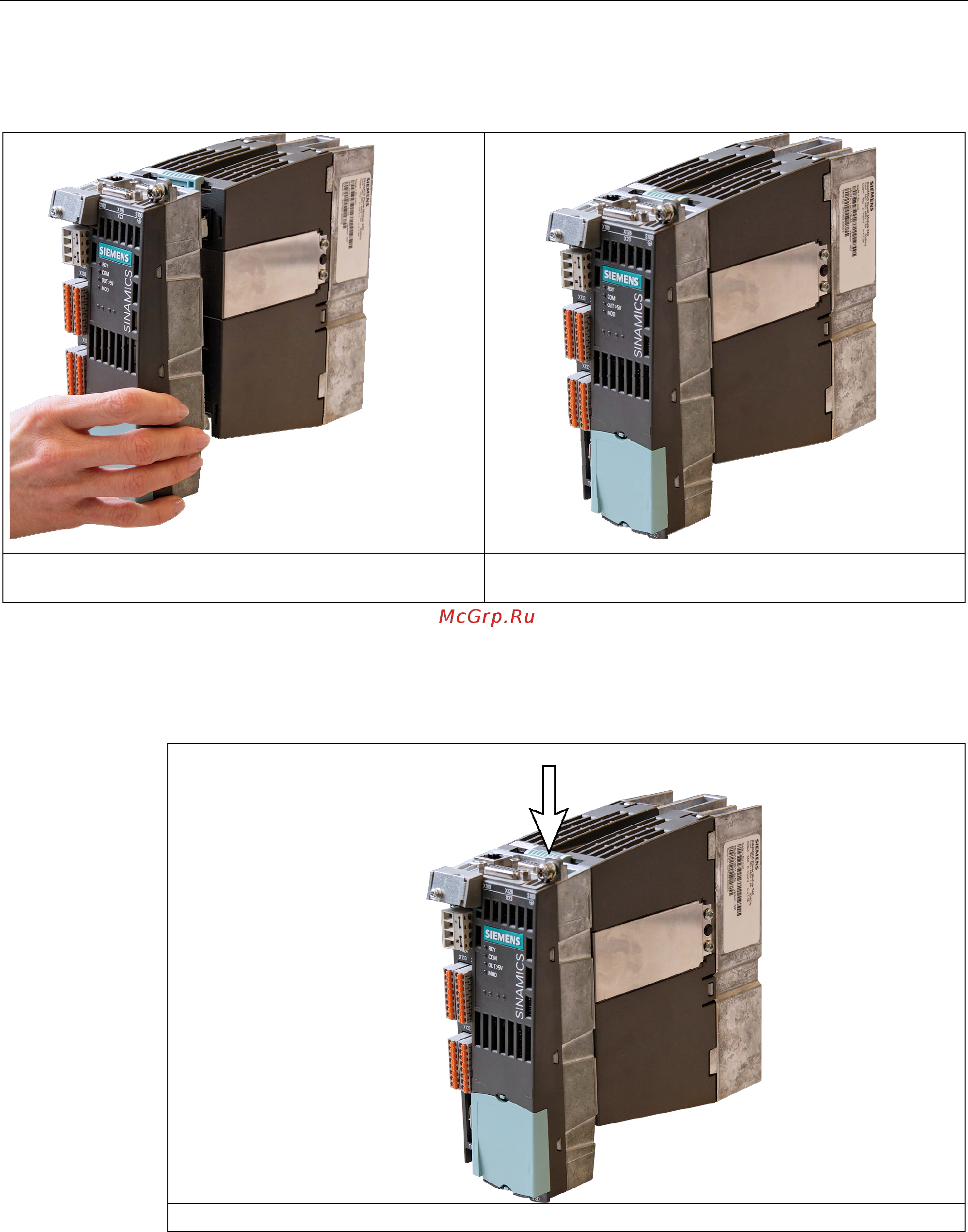

Power Module PM340 (frame size FSA) with CU305
The procedure when mounting the Control Unit on the Power Module is independent of the
frame size of the Power Modules.
Removing the Control Unit
Removing the CU305 from the Power Module PM340 (frame size FSA)
In order to remove the Control Unit from the Power Module, the blue release lever, as shown
in the diagram, must be pressed downwards and the Control Unit swung out to the front.
