Cabinet design and EMC for components, Blocksize format
9.8 Notes on electrical cabinet cooling
Manual
268 Manual, 01/2011, 6SL3097-4AC10-0BP2
Note
The distance between the blow-out aperture of the air conditioner and the electronic
equipment must be at least 200 mm.
&RROLQJXQLW
6ZLWFKLQJFDELQHW

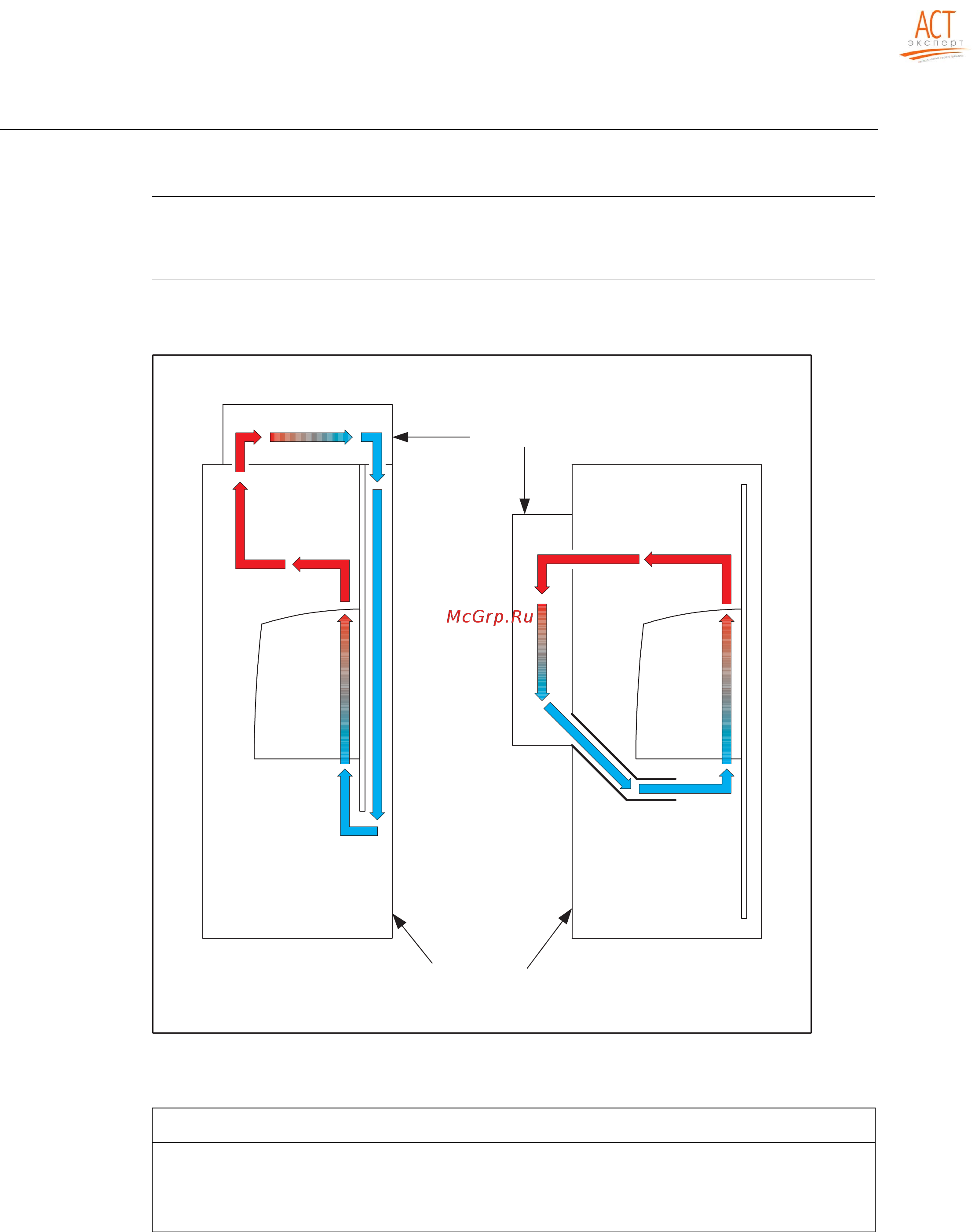

Figure 9-4 Examples of cabinet ventilation
CAUTION
The air guidance and arrangement of the cooling equipment must be chosen in such a way
as to prevent condensation from forming.
If necessary, cabinet enclosure heating may have to be installed.
