Planet WGS3-2820 [106/528] Port security

User’s Manual of WGS3-2820/WGS3-5220

106

4.3.3 Port Security

4.3.3.1 Port Security Administration

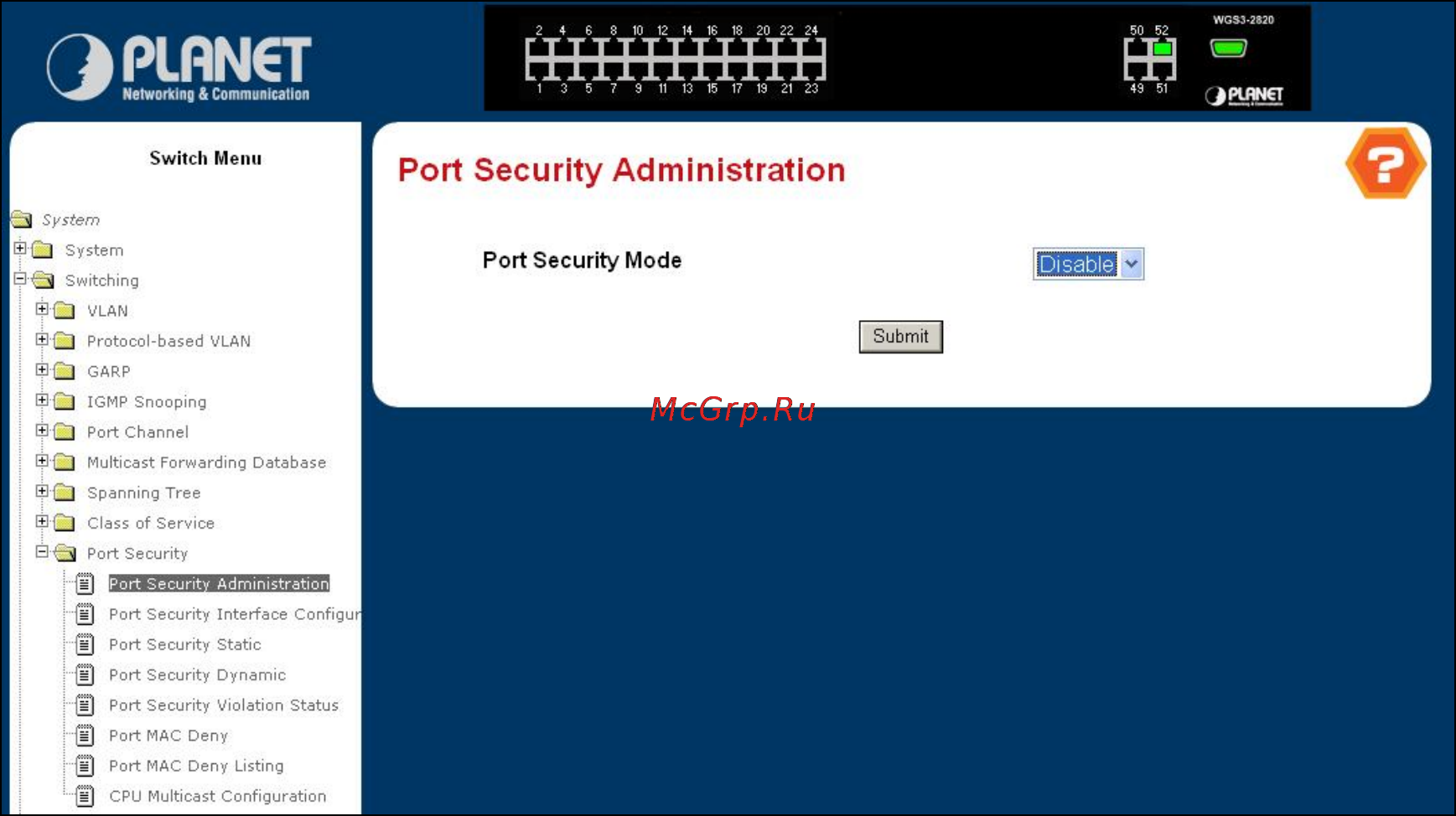

Figure 4-3-8 Port Security Administration

Configurable Data

。 Port Security Mode - Enables or disables the Port Security feature.

Command Buttons

。 Submit - Applies the new configuration and causes the changes to take effect. These changes will not be retained

across a power cycle unless a save configuration is performed.

4.3.3.2 Port Security Interface Configuration
