Planet WGS3-2820 [122/528] Multicast router configuraton
![Planet WGS3-5220 [122/528] Multicast router configuraton](/views2/1070757/page122/bg7a.png)
User’s Manual of WGS3-2820/WGS3-5220
122
4.3.5.6 Multicast Router Configuraton

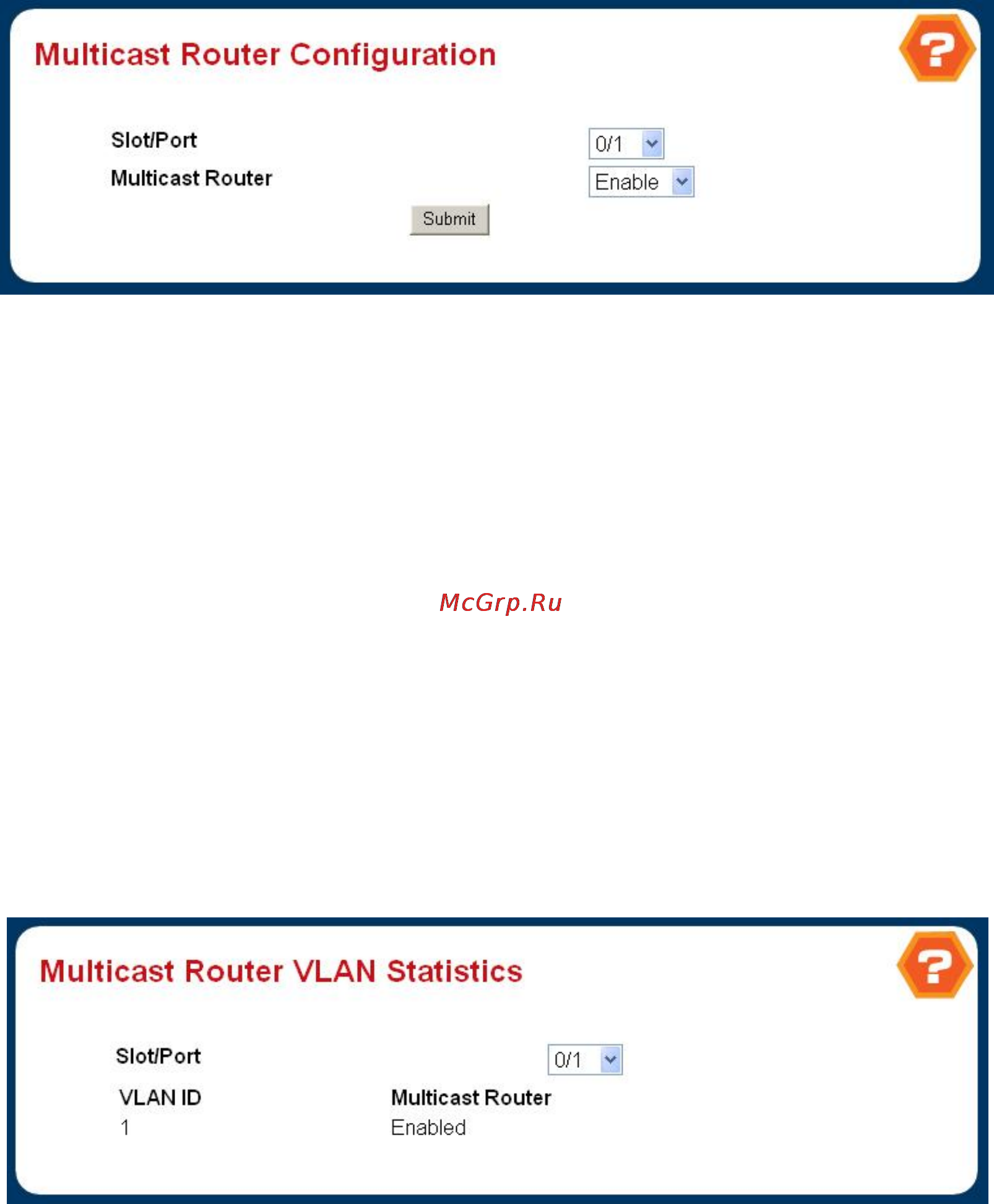

Figure 4-3-24 Multicast Router Configuration
Configurable Data
。 Slot/Port - The select box lists all Slot/Ports. Select the interface for which you want Multicast Router to be enabled .
。 Multicast Router - Enable or disable Multicast Router on the selected Slot/Port.
Command Buttons
。 Submit - Update the switch with the values you entered.
4.3.5.7 Multicast Router VLAN Statistics
Figure 4-3-25 Multicast Router VLAN Statistics
Selection Criteria
。 Slot/Port - The select box lists all Slot/Ports.Select the interface for which you want to display the statistics.
Non-Configurable Data
。 VLAN ID - All Vlan Ids for which the Multicast Router Mode is Enabled
。 Multicast Router - Multicast Router Mode for Vlan ID.
