User’s Manual of WGS3-2820/WGS3-5220
218
。 Delete - Delete the entry of the Source Route selected as Configured Source from the list of Sources configured for
RIP Route Redistribution.
4.6.3.5 RIP Route Redistribution Summary

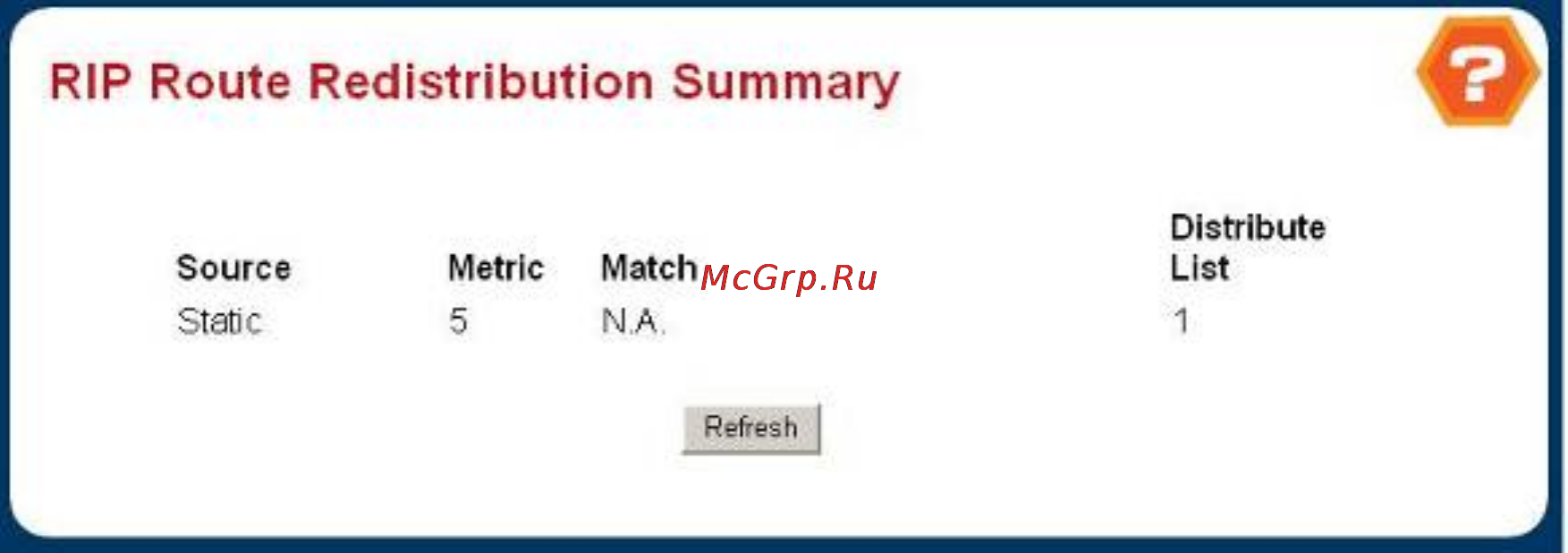

Figure 4-6-14 RIP Route Redistribution Summary
This screen displays the RIP Route Redistribution Configurations.
Non Configurable Data
。 Source - The Source Route to be Redistributed by RIP.
。 Metric- The Metric of redistributed routes for the given Source Route. Displays "Unconfigured" when not configured.
。 Match - List of Routes redistributed when "OSPF" is selected as Source. The list may include one or more of:
Internal
External 1
External 2
NSSA-External 1
NSSA-External 2
。 Distribute List - The Access List that filters the routes to be redistributed by the Destination Protocol. Displays 0
when not configured.
