User’s Manual of WGS3-2820/WGS3-5220
89
Non-Configurable Data
。 IP Address - Specifies the Client's IP Address.
。 Hardware Address - Specifies the Client's Hardware Address.
。 Lease Time - Specifies the Lease time left in Days, Hours and Minutes dd:hh:mm format.
。 Type - Specifies the Type of Binding: Dynamic / Manual.
Command Buttons
。 Submit - Displays information for chosen Bindings.
4.2.11.6 Server Statistics
DHCP Server Statistics

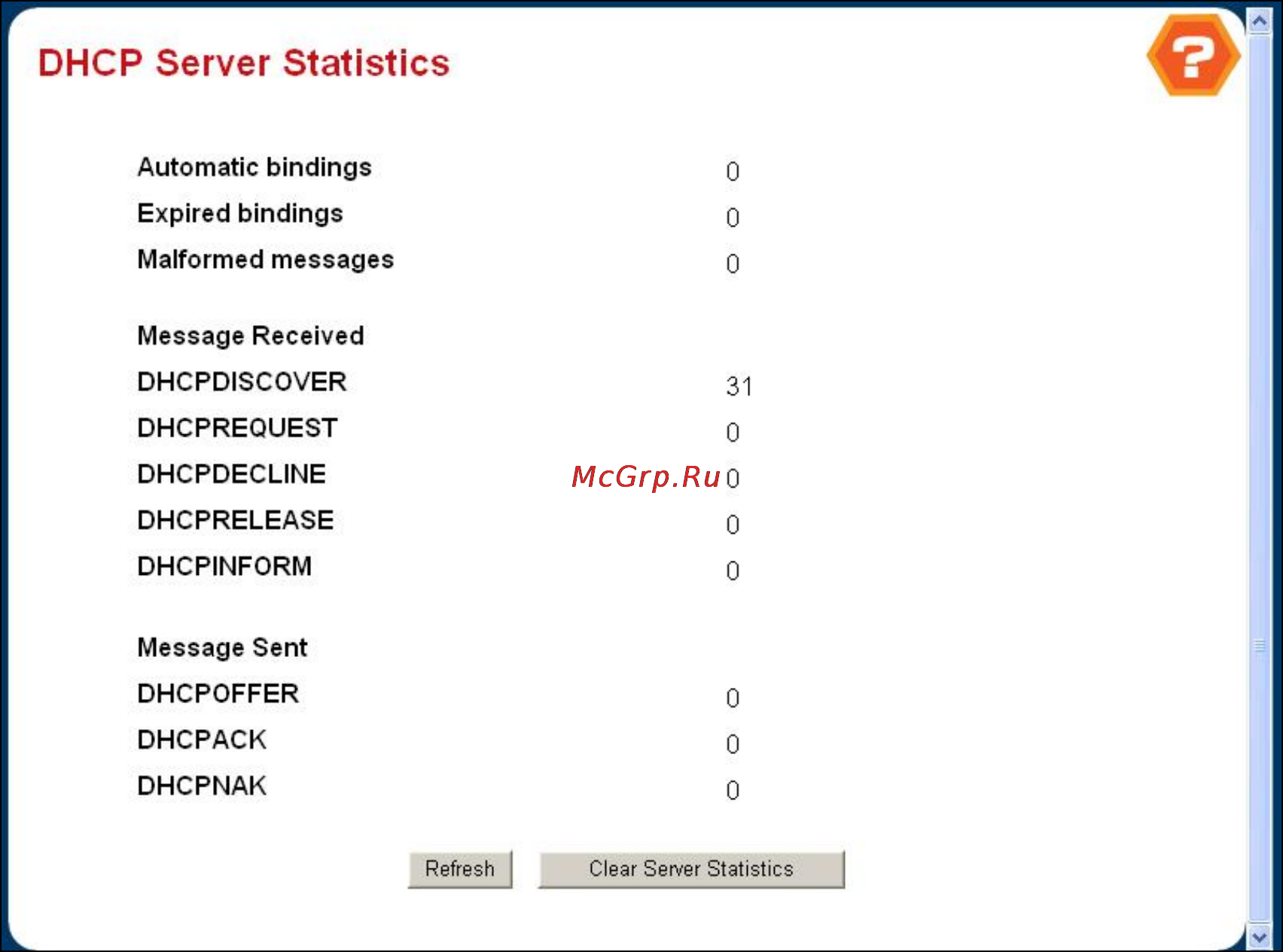

Figure 4-2-57 Server Statistics
Non-Configurable Data
。 Automatic Bindings - Specifies the number of Automatic Bindings on the DHCP Server.
。 Manual Bindings - Specifies the number of Manual Bindings on the DHCP Server.
。 Expired Bindings - Specifies the number of Expired Bindings on the DHCP Server.
。 Malformed Messages - Specifies the number of the malformed messages.
。 DHCPDISCOVER - Specifies the number of DHCPDISCOVER messages received by the DHCP Server.
