User’s Manual of WGS3-2820/WGS3-5220
272
o Clear All - Remove all the data on the screen.
o Refresh - Refresh the information on the screen with the present state of the data in the router.
4.7.1.4 Multicast Static Routes Configuration

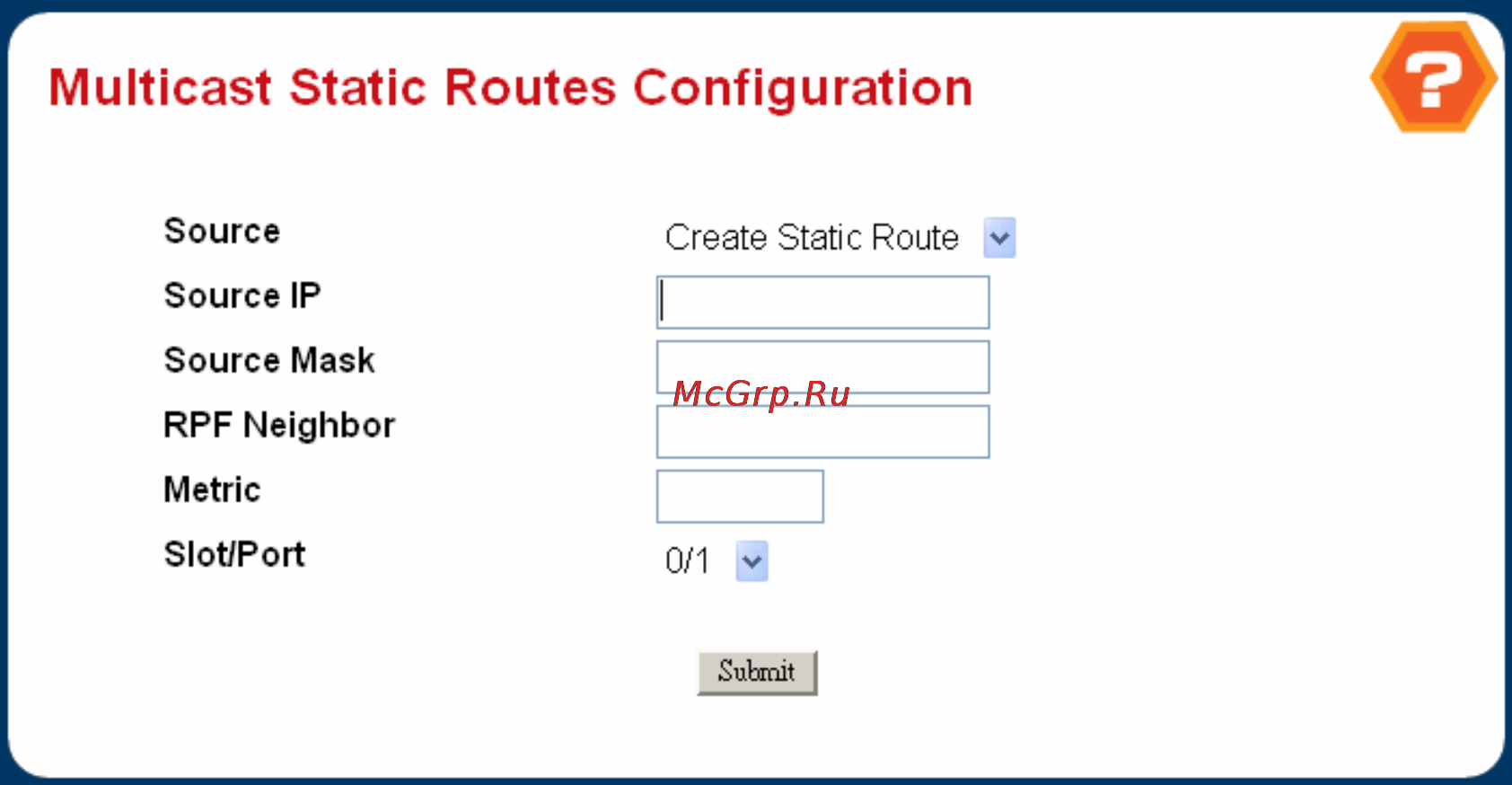

Figure 4-6-52 Multicast static Routes Configuration
Selection Criteria
o Source - Select Create Static Route to configure a new static entry in the Mroute table, or select one of the existing
entries from the pulldown menu.
Configurable Data
o Source IP - Enter the IP Address that identifies the multicast packet source for the entry you are creating.
o Source Mask - Enter the subnet mask to be applied to the Source IP address.
o RPF Neighbor - Enter the IP address of the neighbor router on the path to the source.
o Metric - Enter the link state cost of the path to the multicast source. The range is 0 - 255 and the default is one. You
can change the metric for a configured route by selecting the static route and editing this field.
o Slot/Port - Select the interface number from the dropdown menu. This is the interface that connects to the neighbor
router for the given source IP address.
Command Buttons
