4.5.3 ACL Interface Configuration
Use these pages to apply the IP Based ACL or MAC Based ACL to specify interface.

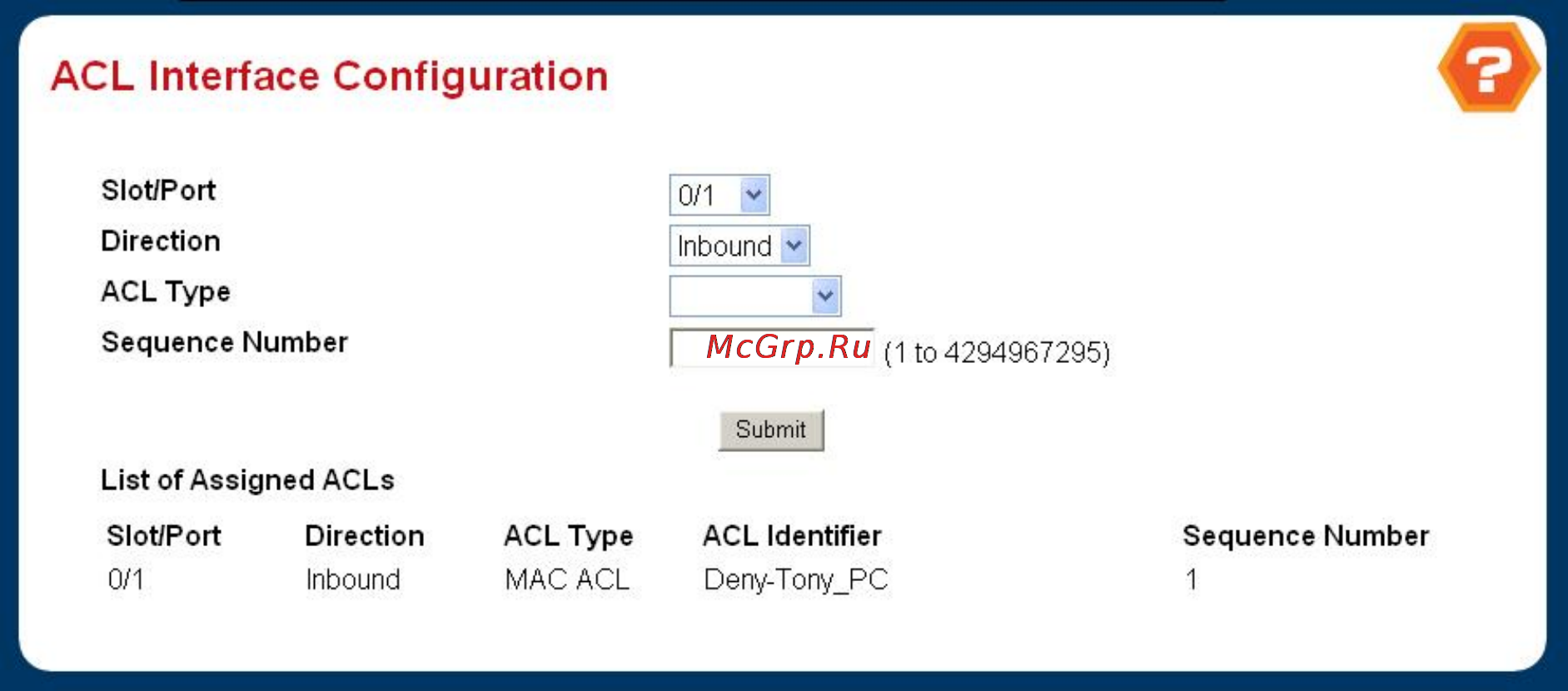

Figure 4-5-10 ACL Interface Configuration
Configurable Data
Slot/Port - Specifies list of all available valid interfaces for ACL mapping. All non-routing physical interfaces and
interfaces participating in LAGs are listed.
Direction - Specifies the packet filtering direction for ACL.
Valid Directions
Inbound
ACL Type - Specifies the type of ACL.
Valid ACL Types
IP ACL
MAC ACL
IP ACL - Specifies list of all IP ACLs. This field is visible only if the user has selected "IP ACL" as "ACL Type".
MAC ACL - Specifies list of all MAC ACLs. This field is visible only if the user has selected "MAC ACL" as "ACL
Type".
Sequence Number - An optional sequence number may be specified to indicate the order of this access list relative
to other access lists already assigned to this interface and direction. A lower number indicates higher precedence
order. If a sequence number is already in use for this interface and direction, the specified access list replaces the
currently attached access list using that sequence number. If the sequence number is not specified by the user, a
sequence number that is one greater than the highest sequence number currently in use for this interface and
direction will be used. Valid range is (1 to 4294967295).
Non-Configurable Data
Slot/Port - Displays selected interface.
