Planet WGS3-2820 [269/528] Multicast global configuration

User’s Manual of WGS3-2820/WGS3-5220

269

4.7 IP Multicast

The WGS3 supports the following Multicast routing protocol :

 DVMRP

 IGMP

 Multicast

 Mdebug

 PIM-DM

 PIM-SM

4.7.1 Multicast

4.7.1.1 Multicast Global Configuration

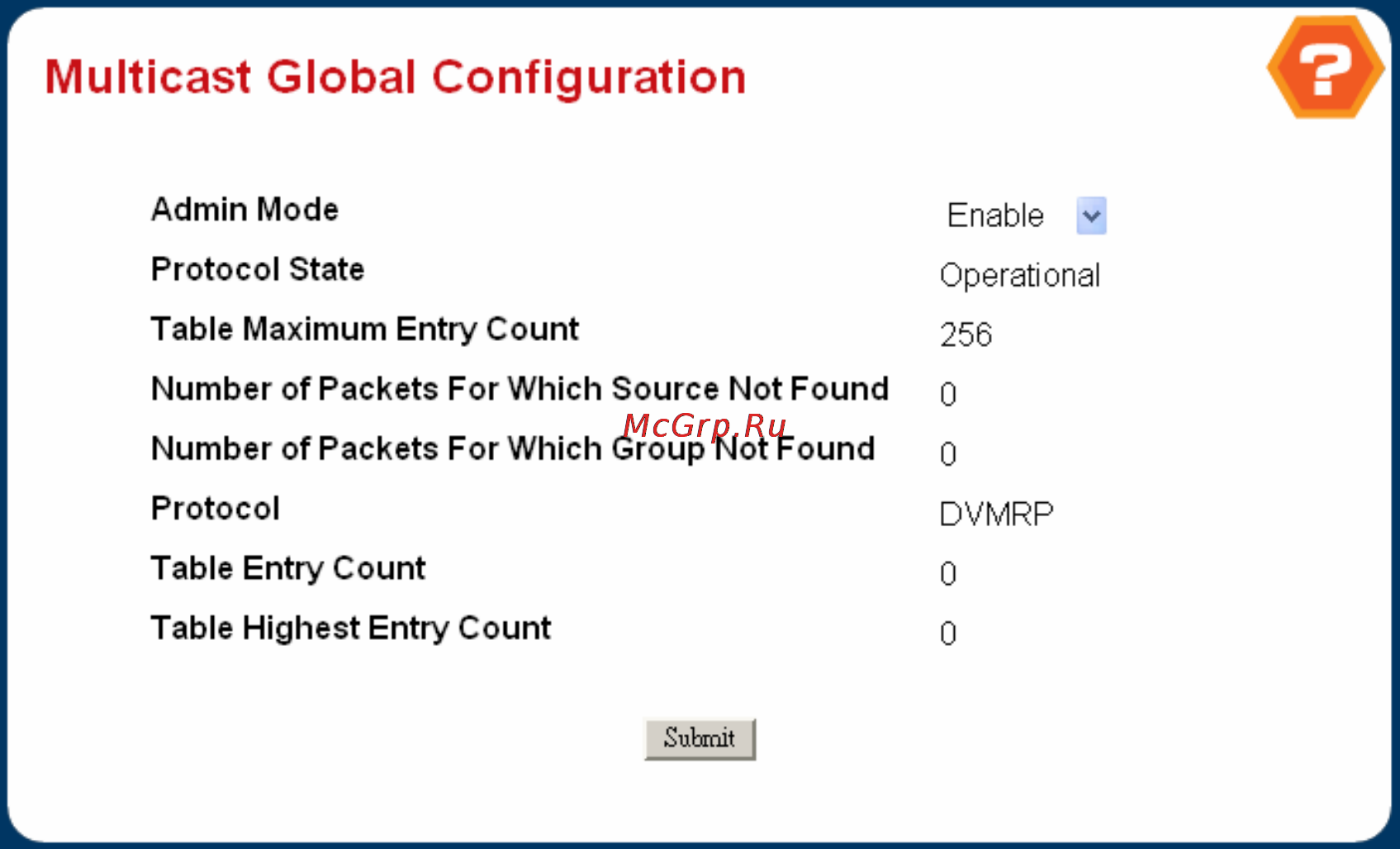

Figure 4-6-49 Multicast Global Configuation

Selection Criteria

o Admin Mode - Select enable or disable to set the administrative status of Multicast Forwarding in the router. The

default is disable.

o Protocol State - The operational state of the multicast forwarding module.

o Table Maximum Entry Count - The maximum number of entries in the IP Multicast routing table.

o Number Of Packets For Which Source Not Found - The number of multicast packets that were supposed to be

routed but which failed the RPF check.
