User’s Manual of WGS3-2820/WGS3-5220
136
4.3.8.1 Spanning Tree Switch Configuration/Status
This page is to enable/disable the Spanning Tree protocol. The switch support IEEE 802.1d Spanning Tree (STP), IEEE 802.1w
Rapid Spanning Tree (RSTP) and IEEE 802.1S Multiple Spanning Tree (MSTP).

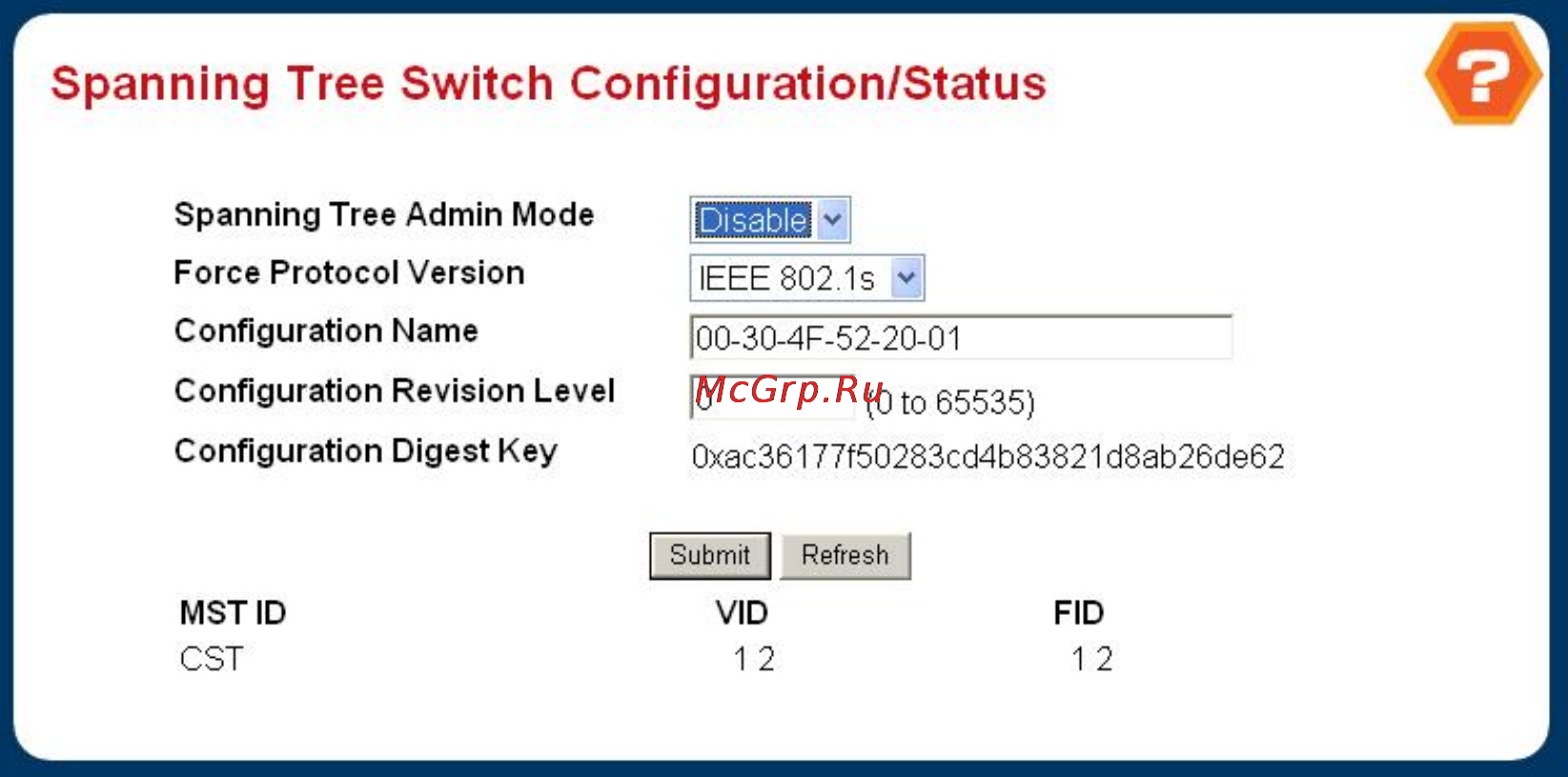

Figure 4-3-33 Spanning Tree Switch Configuration/Status
Configurable Data
。 Spanning Tree Mode - Specifies whether spanning tree operation is enabled on the switch.
Value is enabled or disabled
。 Force Protocol Version - Specifies the Force Protocol Version parameter for the switch.
The options are IEEE 802.1d, IEEE 802.1w and IEEE 802.1s
。 Configuration Name- Identifier used to identify the configuration currently being used. It may be up to 32
alphanumeric characters
。 Configuration Revision Level - Identifier used to identify the configuration currently being used. The values
allowed are between 0 and 65535.
The default value is 0.
Non-Configurable Data
。 Configuration digest key - Identifier used to identify the configuration currently being used.
。 MST Table - Table consisting of the MST instances (including the CST) and the corresponding VLAN IDs
associated with each of them.
。 VID Table - Table consisting of the VLAN IDs and the corresponding FID associated with each of them.
。 FID Table - Table consisting of the FIDs and the corresponding VLAN IDs associated with each of them.
