User’s Manual of WGS3-2820/WGS3-5220
210

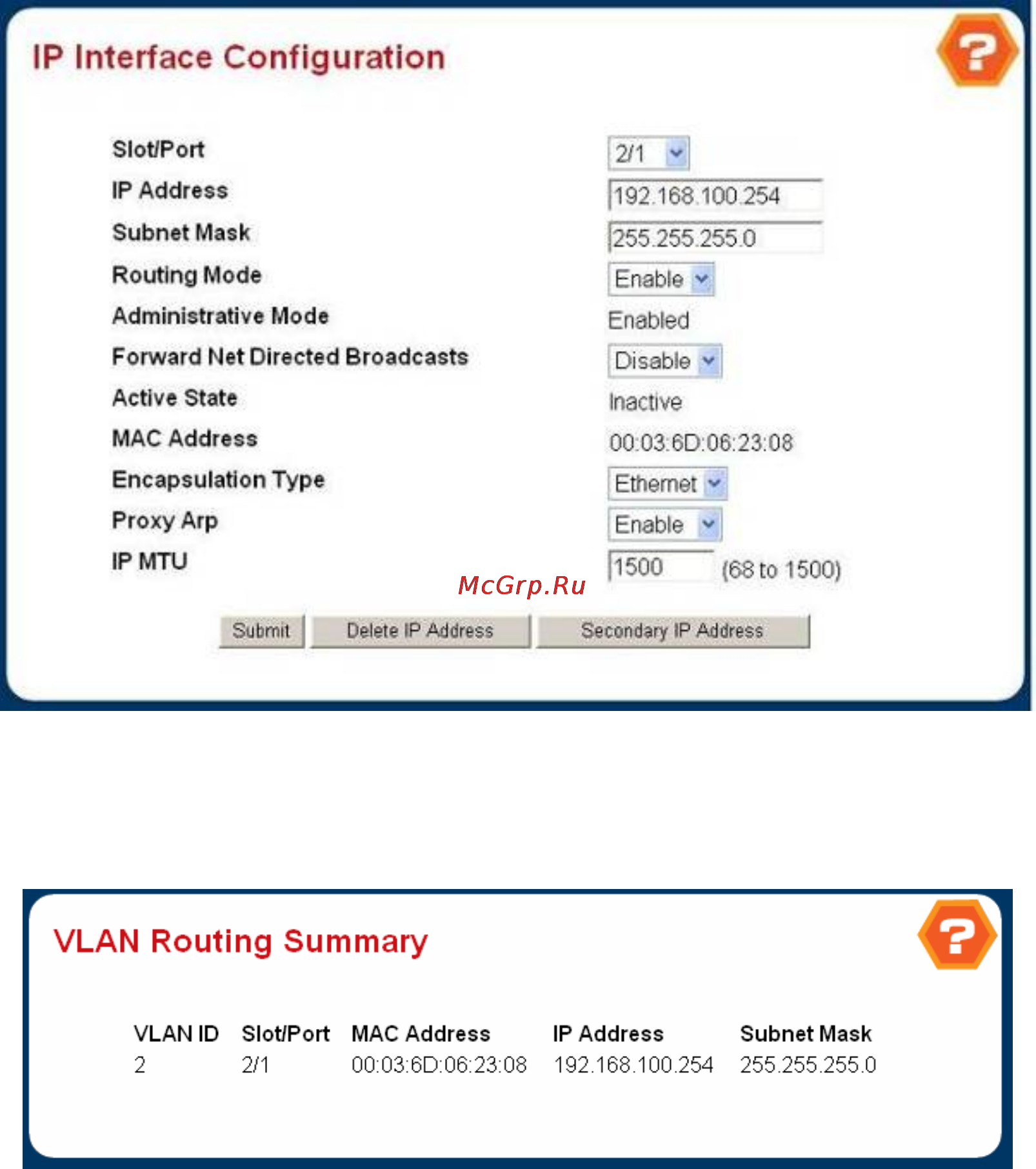

Figure 4-6-7 IP Interface Configuration
4.6.2.2 VLAN Routing Summary
Figure 4-6-8 VLAN Routing Summary
Non-Configurable Data
。 VLAN ID - The ID of the VLAN whose data is displayed in the current table row
。 Slot/Port - The Slot/Port assigned to the VLAN Routing Interface
。 MAC Address - The MAC Address assigned to the VLAN Routing Interface
。 IP Address - The configured IP Address of the VLAN Routing Interface. This will be 0.0.0.0 when the VLAN Routing
Interface is first configured and must be entered on the IP Interface Configuration page.
。 Subnet Mask - The configured Subnet Mask of the VLAN Routing Interface. This will be 0.0.0.0 when the VLAN
Routing Interface is first configured and must be entered on the IP Interface Configuration page.
