Planet WGS3-2820 [38/528] System description

User’s Manual of WGS3-2820/WGS3-5220

 System

 Switching

 Routing

 Security

 QoS

 IP Multicast

System Description

After a successful login, the main screen appears, the main screen displays the port status and a list of System section and the

topics it provide. As showed in Figure 4-1-3.

。 System Name - Enter the name you want to use to identify this switch. You may use up to 31 alpha-numeric

characters. The factory default is blank.

。 System Location - Enter the location of this switch. You may use up to 31 alpha-numeric characters. The factory

default is blank.

。 System Contact - Enter the contact person for this switch. You may use up to 31 alpha-numeric characters. The

factory default is blank.

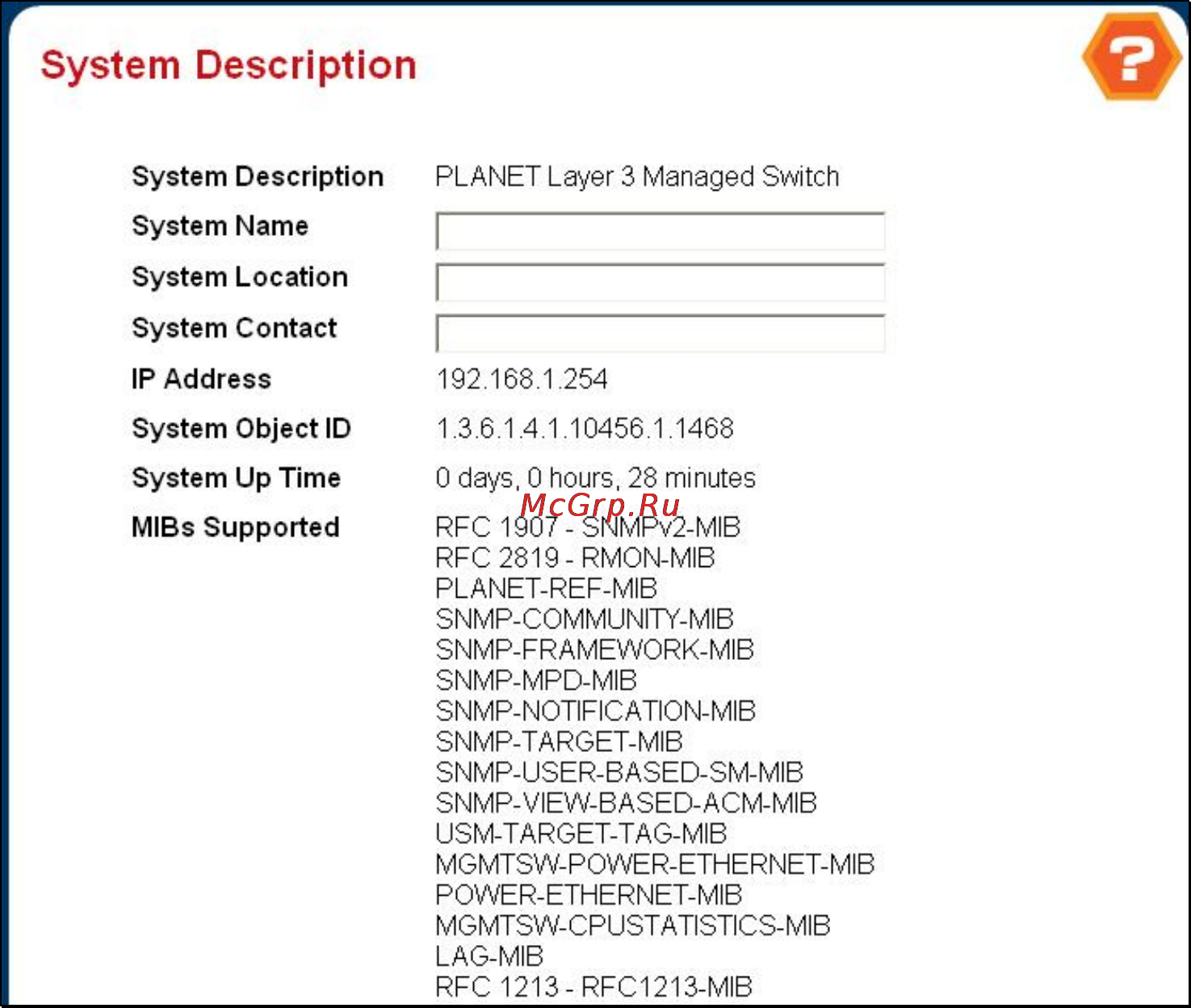

Figure 4-1-3 System Description
