Planet WGS3-2820 [173/528] Ip acl summary

User’s Manual of WGS3-2820/WGS3-5220

173

Command Buttons

。 Submit - Send the updated configuration to the switch. Configuration changes take effect immediately. These

changes will not be retained across a power cycle unless a save is performed.

。 Delete ACL - Removes the currently selected ACL from the switch configuration.

4.5.1.2 IP ACL Summary

This page shows the configuration summary of access control list.

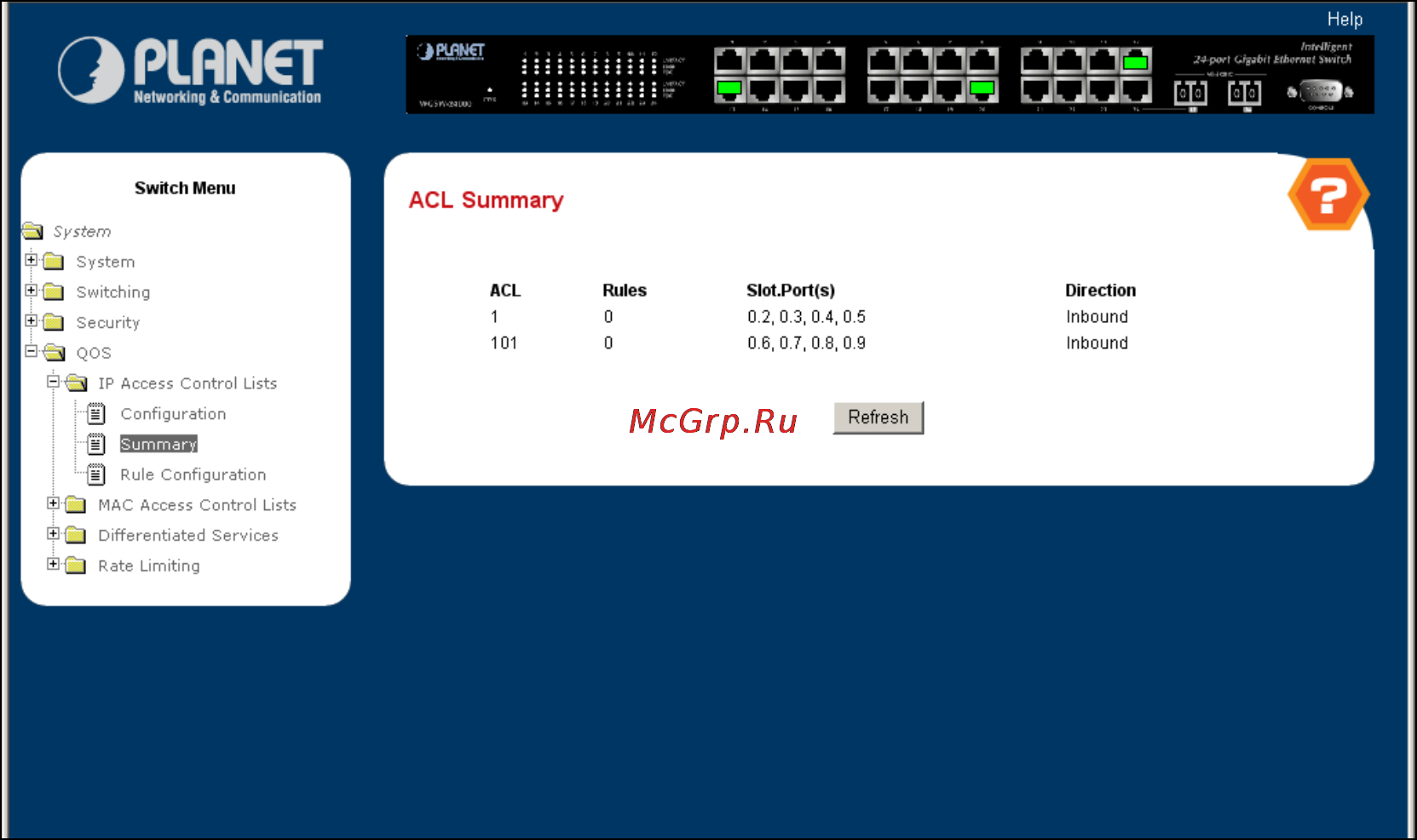

Figure 4-5-2 ACL Summary

Non-Configurable Data

。 ACL ID - The ACL identifier.

。 Rules - The number of rules currently configured for the ACL.

。 Slot.Port(s) - The interfaces to which the ACL applies.

。 Direction - The direction of packet traffic affected by the ACL.

Direction can only be one of the following:

。 Inbound
