User’s Manual of WGS3-2820/WGS3-5220

2.1.2 Switch Front Panel

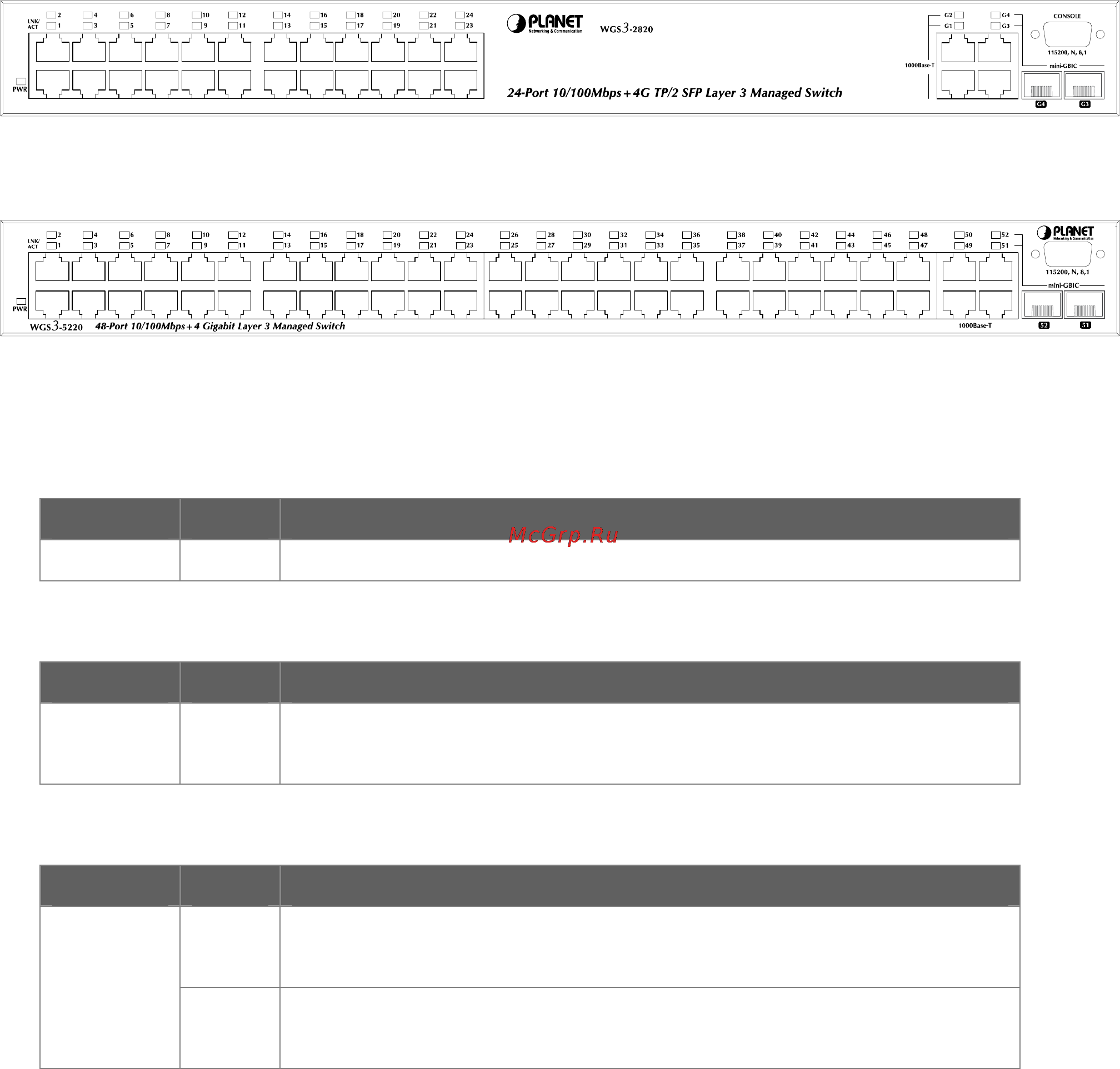

Figure 2-1 and 2-2 show the front panel of the WGS3 LAYER 3 Switch.

■ WGS3-2820 Front Panel

Figure 2-1 WGS3-2820 front panel.

■ WGS3-5220 Front Panel

Figure 2-2 WGS3-5220 front panel.

2.1.3 LED Indications

■ System

LED Color Function

PWR

Green

Lights to indicate that the Switch is powered on.

■ 10/100BASE-TX Ports

LED Color Function

LNK/ACT

Green

Lights to indicate the link through that port is successfully established.

Blink to indicate the switch is actively sending or receiving data over that port.

■ 1000BASE-T / SFP mini-GBIC Port:

LED Color Function

Orange

Lit: indicate that the TP/SFP port is operating at 1000Mbps.

Blink: indicate that the switch is actively sending or receiving data over that port.

LNK/ACT

(Dual Color)

Green

Lit: indicate that the port is operating at 100Mbps or 10Mbps.

Blink: indicate that the switch is actively sending or receiving data over that port.
