User’s Manual of WGS3-2820/WGS3-5220
75
。 Packets Transmitted Without Errors - The number of frames that have been transmitted by this port to its
segment.
。 Transmit Packet Errors - The number of outbound packets that could not be transmitted because of errors.
。 Collision Frames - The best estimate of the total number of collisions on this Ethernet segment.
。 Time Since Counters Last Cleared - The elapsed time, in days, hours, minutes, and seconds since the statistics
for this port were last cleared.

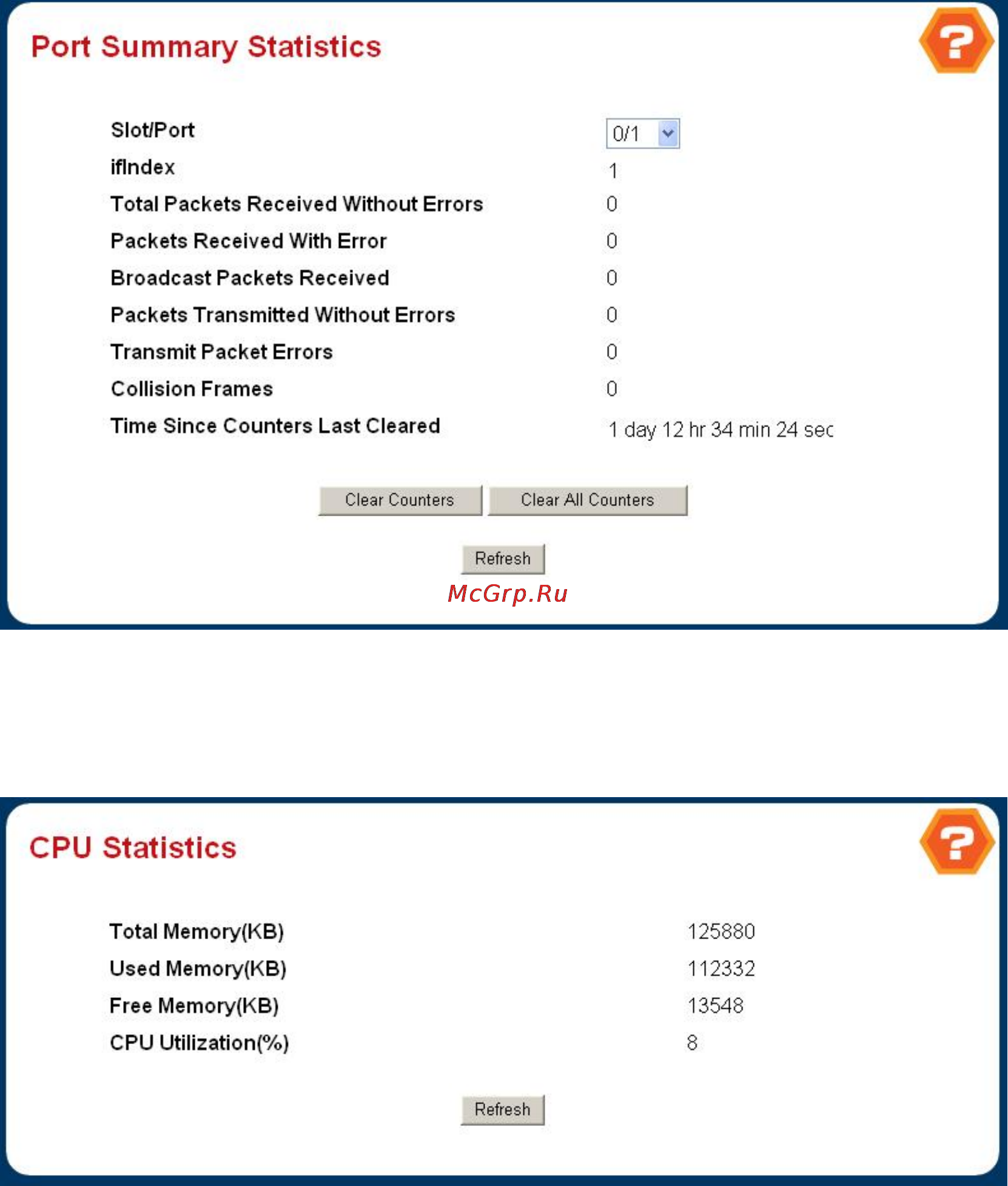

Figure 4-2-39 Port Summary Statistics
4.2.8.5 CPU Statistics
This page shows the system loading information, including the following fields:
Figure 4-2-40 CPU Statistics
Non-Configurable Data
。 Total Memory - The total RAM memory available with the CPU.
。 Used Memory - The RAM memory already used by CPU.
。 Free Memory - The free memory available with the CPU.
。 % CPU Utilization - % of CPU capacity used over time.
