User’s Manual of WGS3-2820/WGS3-5220
232
4.6.4.6 OSPF Interface Statistics
This screen displays statistics for the selected interface. The information will be displayed only if OSPF is enabled.

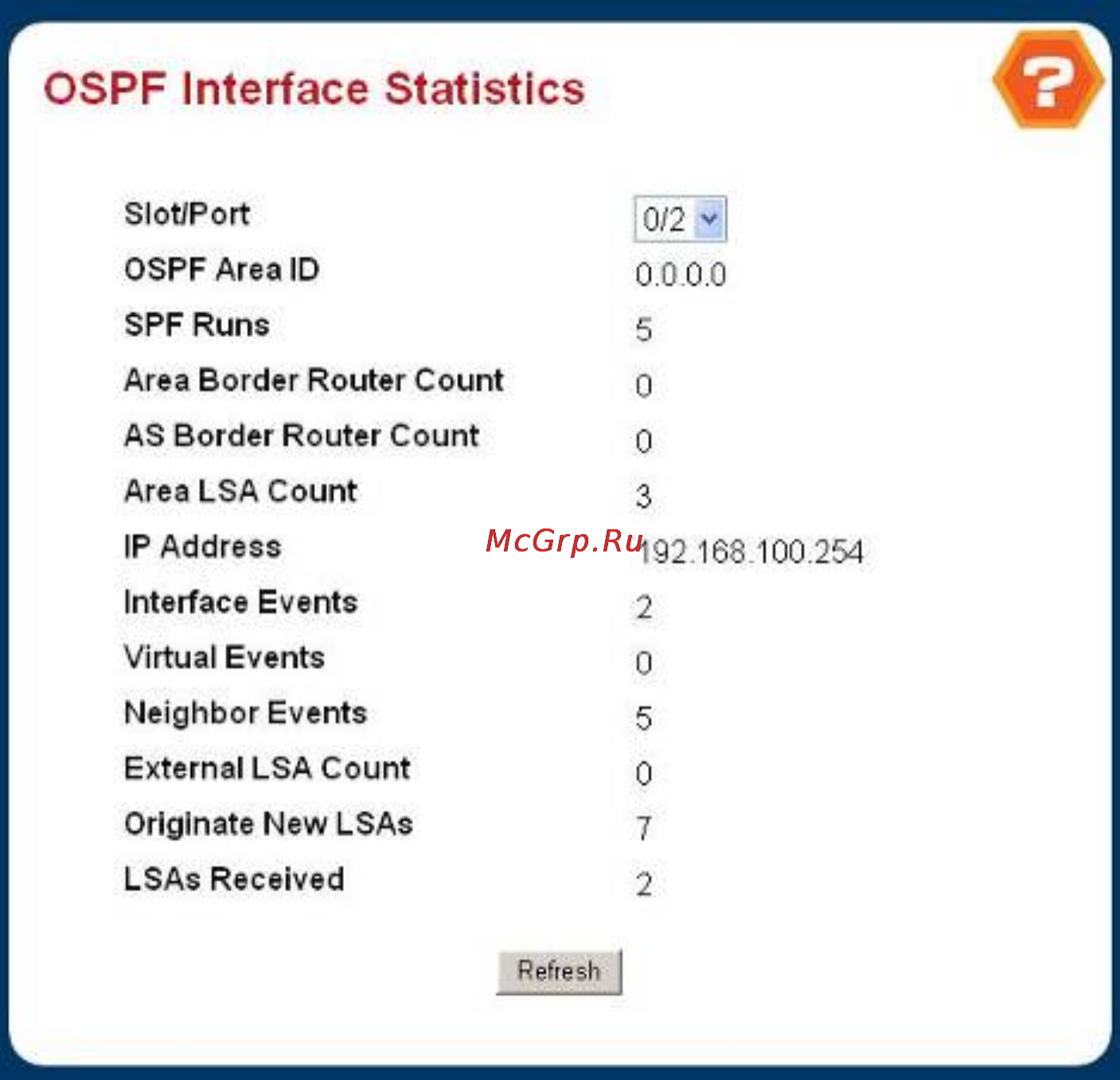

Figure 4-6-23 OSPF Interface Statistics
Selection Criteria
。 Slot/Port - Select the interface for which data is to be displayed.
Non-Configurable Data
。 OSPF Area ID - The OSPF area to which the selected router interface belongs. An OSPF Area ID is a 32 bit integer
in dotted decimal format that uniquely identifies the area to which the interface connects.
。 SPF Runs - The number of times that the intra-area route table has been calculated using this area's link-state
database.
。 Area Border Router Count - The total number of area border routers reachable within this area. This is initially zero,
and is calculated in each SPF Pass.
。 AS Border Router Count - The total number of Autonomous System border routers reachable within this area. This
is initially zero, and is calculated in each SPF Pass.
。 Area LSA Count - The total number of link-state advertisements in this area's link-state database, excluding AS
External LSAs.
