User’s Manual of WGS3-2820/WGS3-5220

This allows logging to any serial device attached to the host.

Configurable Data

。 Admin Status -A log that is "Disabled" shall not log messages. A log that is "Enabled" shall log messages. Enable or

Disable logging by selecting the corresponding line on the pulldown entry field.

。 Severity Filter - A log records messages equal to or above a configured severity threshold. Select the severity option

by selecting the corresponding line on the pulldown entry field. These severity levels have been enumerated below:

-Emergency (0): system is unusable

-Alert (1): action must be taken immediately

-Critical (2): critical conditions

-Error (3): error conditions

-Warning (4): warning conditions

-Notice(5): normal but significant conditions

-Informational(6): informational messages

-Debug(7): debug-level messages

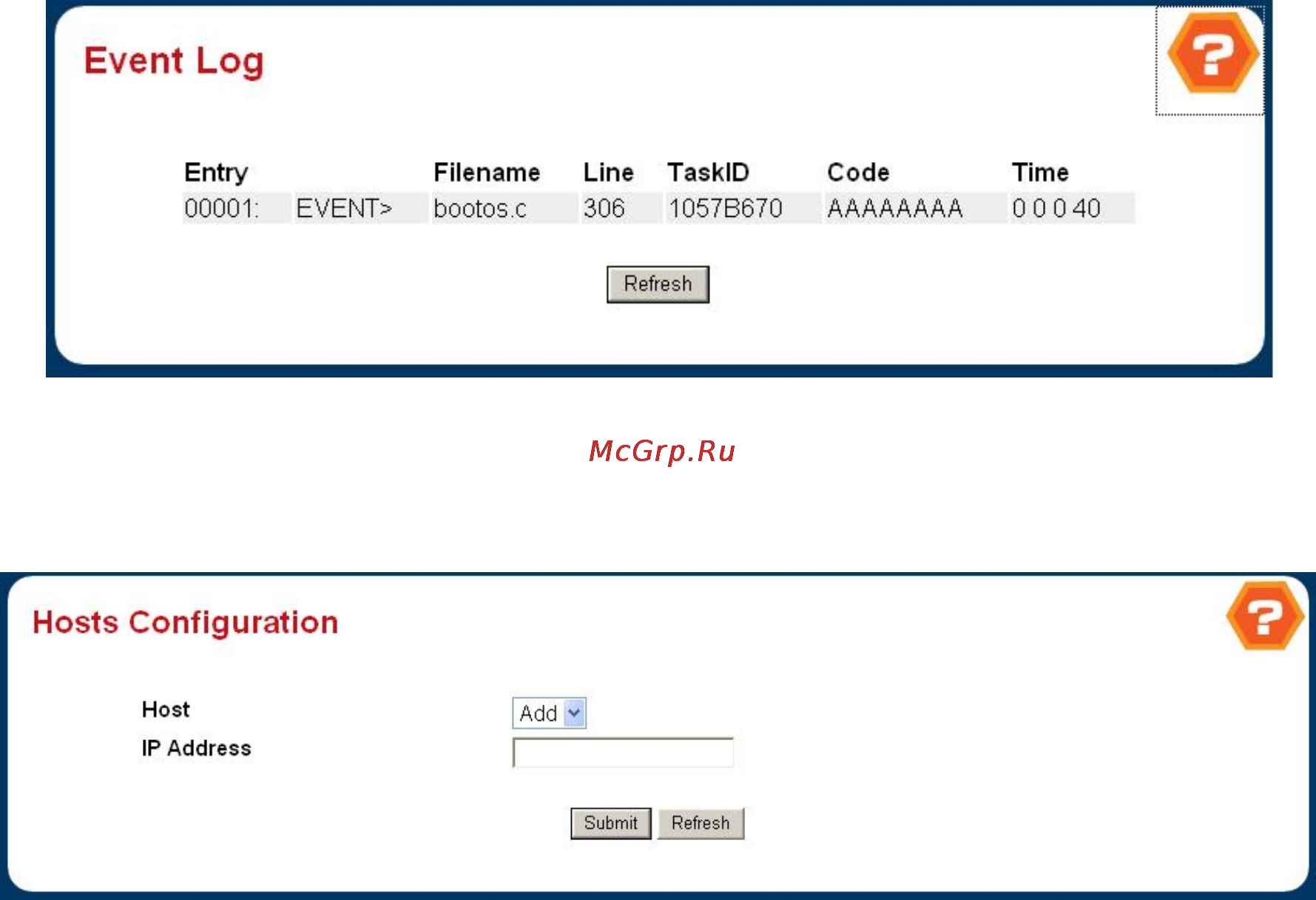

Figure 4-2-21 Event Log

4.2.5.6 Hosts Configuration

Figure 4-2-22 Host Configuration

Configurable Data

。 Host - This is a list of the hosts that have been configured for syslog. Select a host for changing the configuration or

choose to add a new hosts from the drop down list.

。 IP Address - This is the ip address of the host configured for syslog.
